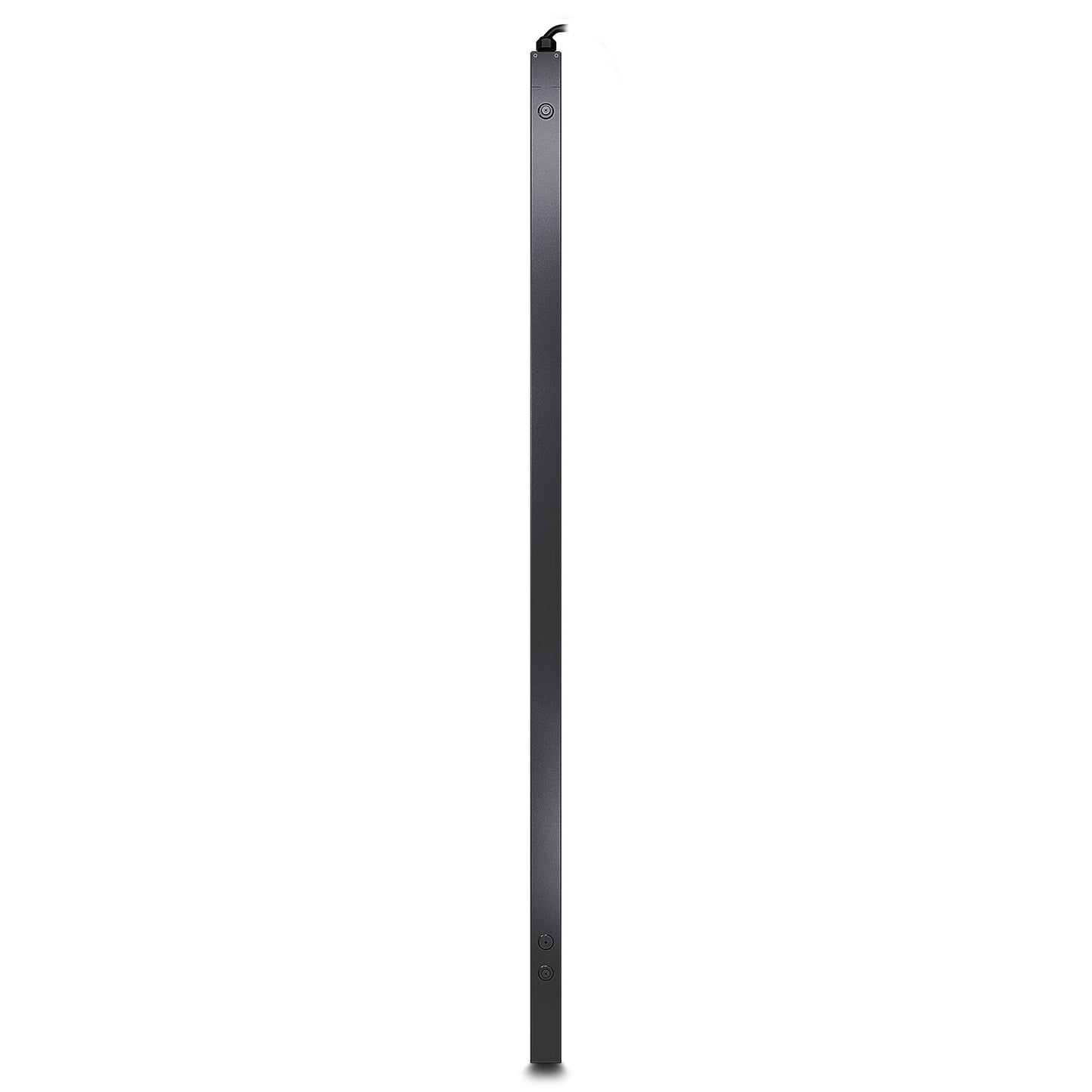

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
SKU:AP8653
Low stock: 8 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Single-phase Metered, Metered-by-outlet, Switched 0U Black
- 24 AC outlet(s) C13 coupler, C19 coupler
- 7680 W
APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
| Design | |
|---|---|
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| Type | Single-phase |
| PDU types | Metered, Metered-by-outlet, Switched |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |

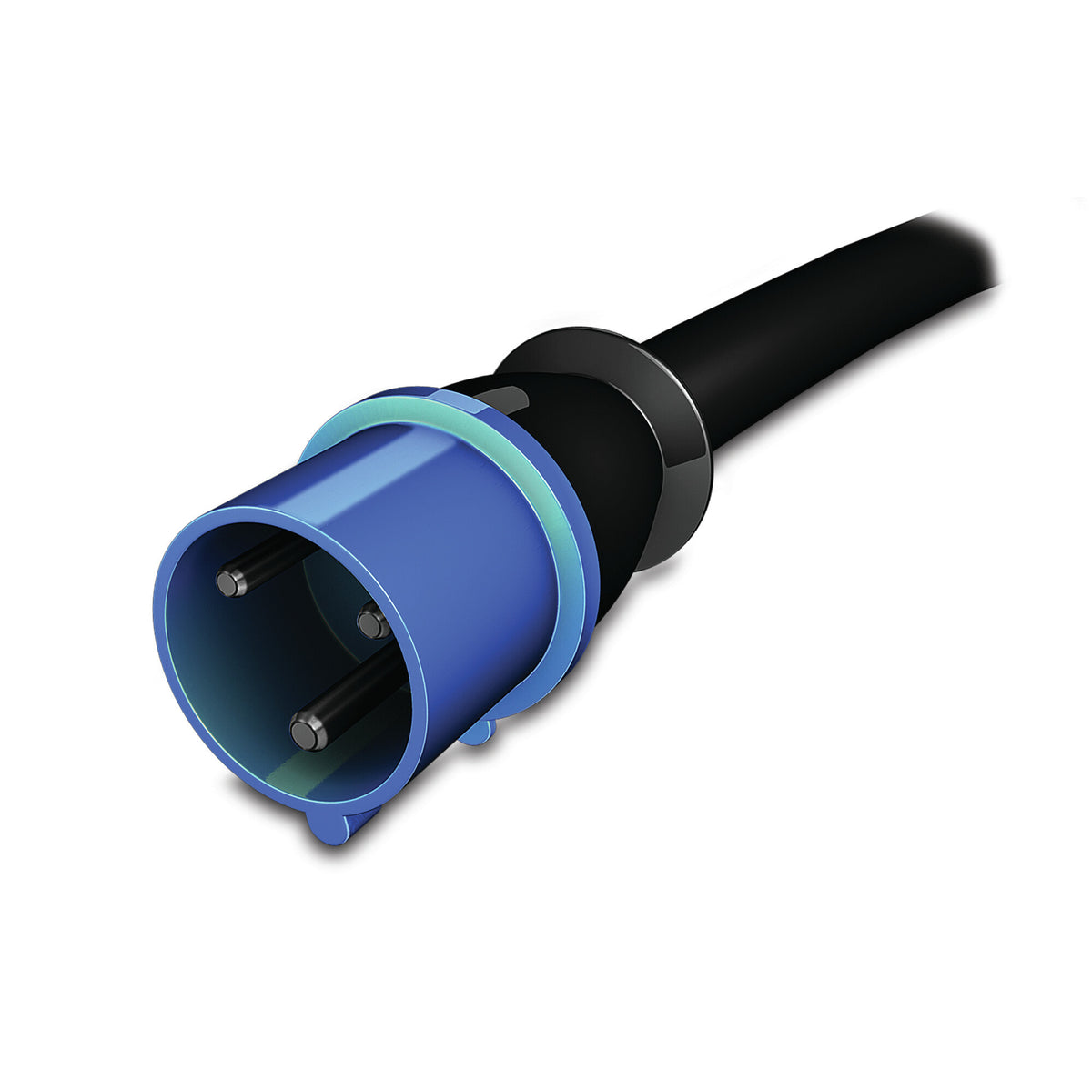

| Power plug | IEC309 |
| AC outlets quantity | 24 AC outlet(s) |
| Features | |
|---|---|
| Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE |
| Cable length | 3 m |
| Management features | |
|---|---|
| Outlet control | Lock-out, Recycle, Turn off, Turn on |
| Monitoring | Current, Power, Voltage |
| Power | |
|---|---|
| Power protection features | Overload |
| Maximum power | 7680 W |
| Maximum total current draw per phase | 32 A |
| Maximum input current per phase | 32 A |
| Load capacity | 7680 VA |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| AC input frequency | 50 - 60 Hz |
| Nominal input voltage | 230 V |
| Weight & dimensions | |
|---|---|
| Weight | 8.23 kg |
| Height | 1829 mm |
| Depth | 51 mm |
| Width | 56 mm |
| Packaging data | |
|---|---|
| Package height | 2038 mm |
| Package depth | 118 mm |
| Package width | 162 mm |
| Package weight | 10.5 kg |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Total carbon footprint | 8595.81 |
