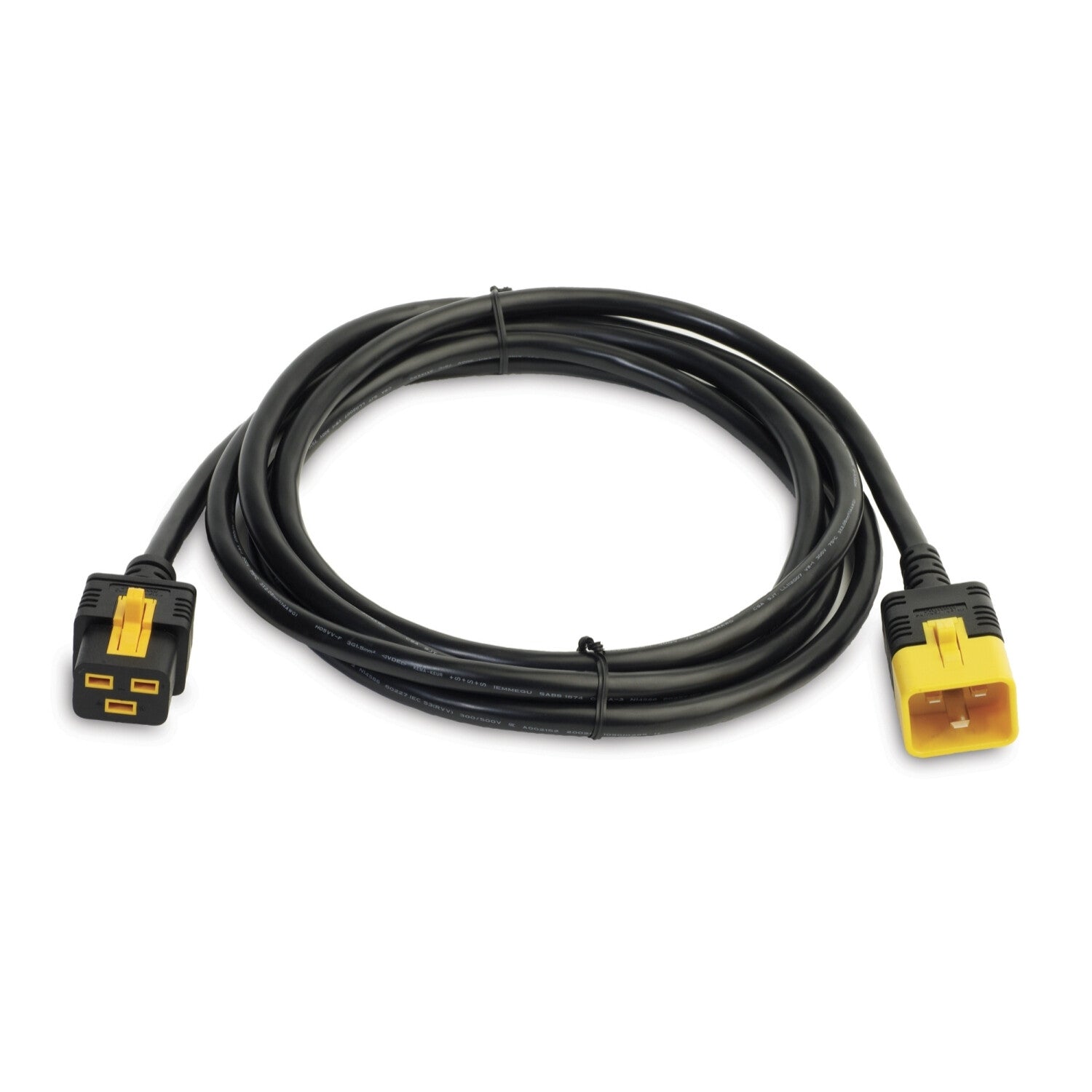

APC Power Cord, Locking C19 to C20, 3.0m
APC Power Cord, Locking C19 to C20, 3.0m
SKU:AP8760
21 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Locking IEC receptacle to reduce risk of accidental disconnections
- Universal fit in any IEC receptacles
- Output jumpers in multiple lengths and configurations
- Exclusive locking feature for APC AP8000 range of Rack PDUs
- Multi region approved with regional input sockets
AP8760 is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 9.84ft (3.0m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
| Features | |
|---|---|
| Product colour | Black |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Cable length | 3 m |
| Connector 1 | IEC C20 |
| Connector 2 | C20 coupler |
| Certification | CCC; CSA; PSE; UL listed; VDE |
| Power | |
|---|---|
| Input voltage | 230 V |
| Input current | 16 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Weight & dimensions | |
|---|---|
| Width | 230 mm |
| Depth | 45 mm |
| Height | 230 mm |
| Weight | 510 g |
| Packaging data | |
|---|---|
| Package width | 230 mm |
| Package depth | 45 mm |
| Package height | 230 mm |
| Package weight | 510 g |
| Technical details | |
|---|---|
| Preferred mounting position | no preference |
| Halogen free | No |
| Compliance certificates | RoHS, REACH, WEEE |
| Packaging without single use plastic | No |
| Take-back system | No |
| Proposition 65 | Yes |
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
| Sustainable packaging | No |
| Logistics data | |
|---|---|
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint | 59.27608845625331 |
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Country of origin | India |
| Input connection type | IEC 60320 C20 |
| Dimensions (WxDxH) | 230 x 45 x 230 mm |
| Weight (imperial) | 0.51 kg (1.12 lbs) |
