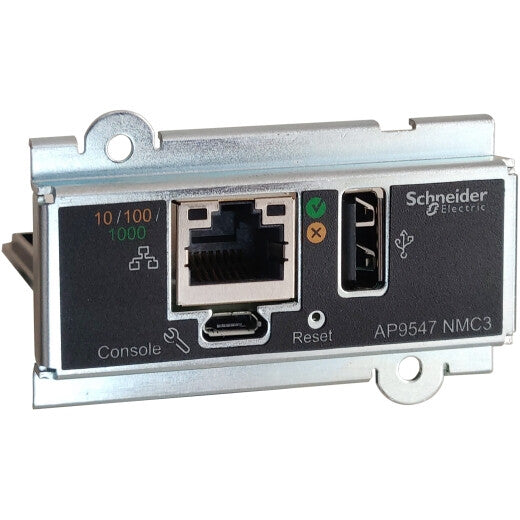

Network Management Card, Network Management Cards, for Easy UPS 3 Series, 3-Phase, remotely monitor and manage the UPS
The Network Management Card for Easy UPS 3 Series enables secure remote monitoring and control of one Easy UPS 3S, Easy UPS 3M or Easy UPS 3L through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. The high-speed processor provides a fast and powerful experience offering gigabit ethernet connectivity and simultaneous multiple user logins. Best-in-class security compliance keeps sensitive data secure. The Network Management Card includes a 1-year Secure NMC Subscription which provides automatic access to new features, enhancements, and advanced support to ensure the most resilient, secure and sustainable IT infrastructure.
Features
Certification
AS/NZS, CISPR 32, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN/IEC 62040-2, FCC Class A, ICES-003, VCCI class A
Compatibility
Easy UPS 3 Series
Easy to use
Yes
MIB support
PowerNet MIB
Product colour
Black, Metallic
Product type
Network management card
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
Interface type
RJ-45
Network
Security algorithms
HTTPS, SNMP, SNMPv3, SSH
Cabling technology
10/100/1000
Ethernet LAN data rates
10,100,1000 Mbit/s
Ethernet interface type
Gigabit Ethernet
Management features
Syslog
Yes
Reset button
Yes
Password protection
Yes
Management protocols
BACnet
Web-based management
Yes
Power
Number of phases
3
Weight & dimensions
Package weight
300 g
Package height
50 mm
Package depth
240 mm
Package width
170 mm
Weight
50 g
Height
44 mm
Depth
80 mm
Width
52 mm
Operational conditions
Non-operating altitude
0 - 15240 m
Operating altitude
0 - 3048 m
Storage relative humidity (H-H)
0 - 95%
Operating relative humidity (H-H)
0 - 95%
Storage temperature (T-T)
-15 - 65 °C
Operating temperature (T-T)
-5 - 45 °C
Packaging content
Manual
Yes
Cables included
USB
Technical details
Sustainability compliance
Yes
Total carbon footprint
69.41
Compliance certificates
Federal Communications Commission (FCC), ICES, RoHS, VCCI
