APC

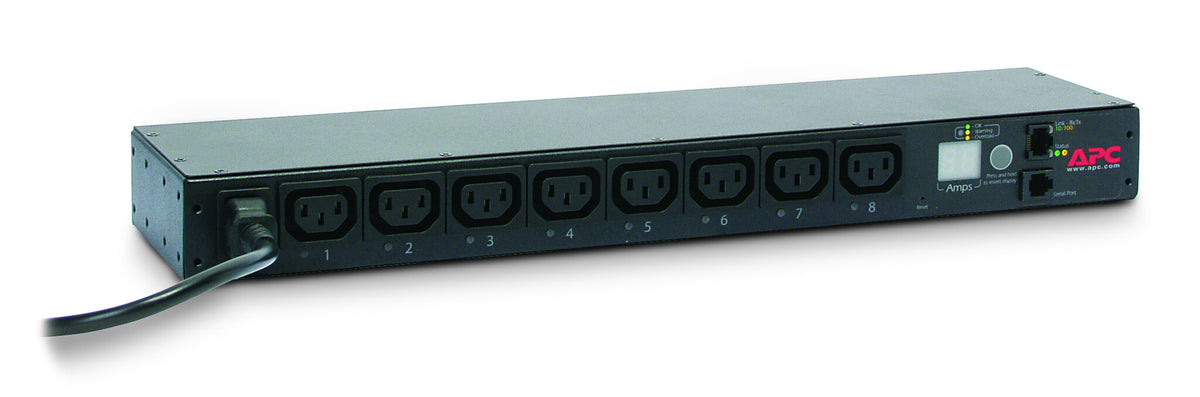

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

APC NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

AP7920B

£997.92 GBP£831.60 GBP
£0.00 GBP £997.92 GBP£831.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

33 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Metered, Switched 0U/1U Black
  • 8 AC outlet(s) C13 coupler
  • 2300 W
NetShelter Switched Rack PDU, 1U, 1PH, 2.3kW 230V 10A or 2.5kW 208V 12A, 8 C13 outlets, C14 cord

This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.

Design
PDU types Metered, Switched
Rack capacity 0U/1U
Mounting Horizontal/Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 8 AC outlet(s)
Power plug C14 coupler
AC outlet types C13 coupler
Input connection type IEC-320 C14
Features
Cable length 1.98 m
Certification cUL Listed, CE, CSA, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, GOST, IRAM, MIC, UL 60950, UL Listed, VDE, VCCI, REACH
Management features
Monitoring Current, Power, Voltage
Outlet control Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage 200-230 V
AC input frequency 50 - 60 Hz
Maximum current 10 A
Nominal output voltage 208-230 V
Load capacity 2300 VA
Maximum input current per phase 10 A
Maximum total current draw per phase 10 A
Maximum power 2300 W
Weight & dimensions
Width 445 mm
Depth 108 mm
Height 44 mm
Weight 2.27 kg
Packaging data
Package weight 3.45 kg
Package width 470 mm
Package depth 343 mm
Package height 70 mm
Packaging content
Packaging content Installation Guide, Rack Mounting Brackets, User Manual
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 1 - 15000 m
Technical details
Compliance certificates RoHS
Logistics data
Total carbon footprint 915.89
