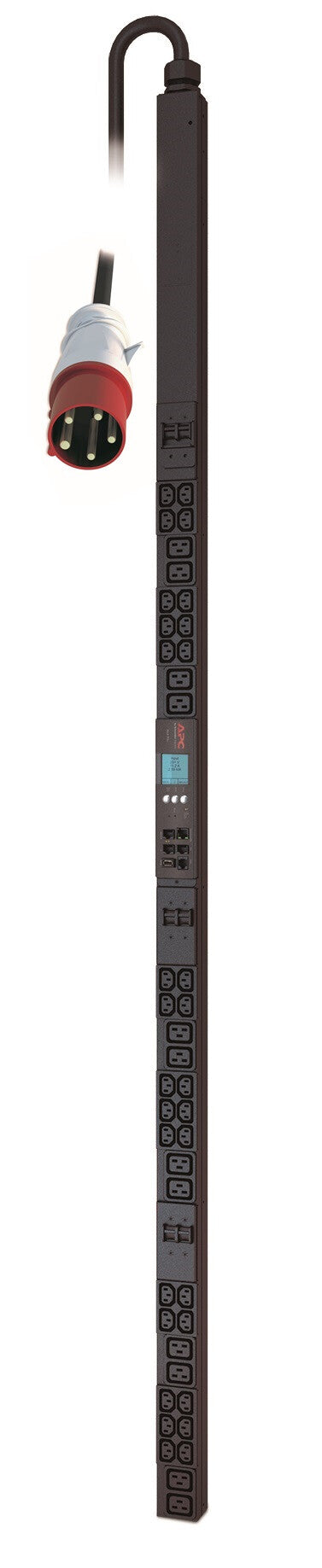

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

AP8886

£2,519.88 GBP£2,099.90 GBP
£0.00 GBP £2,519.88 GBP£2,099.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

48 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Metered 0U Black
  • 42 AC outlet(s) C13 coupler, C19 coupler
  • 22000 W
NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord

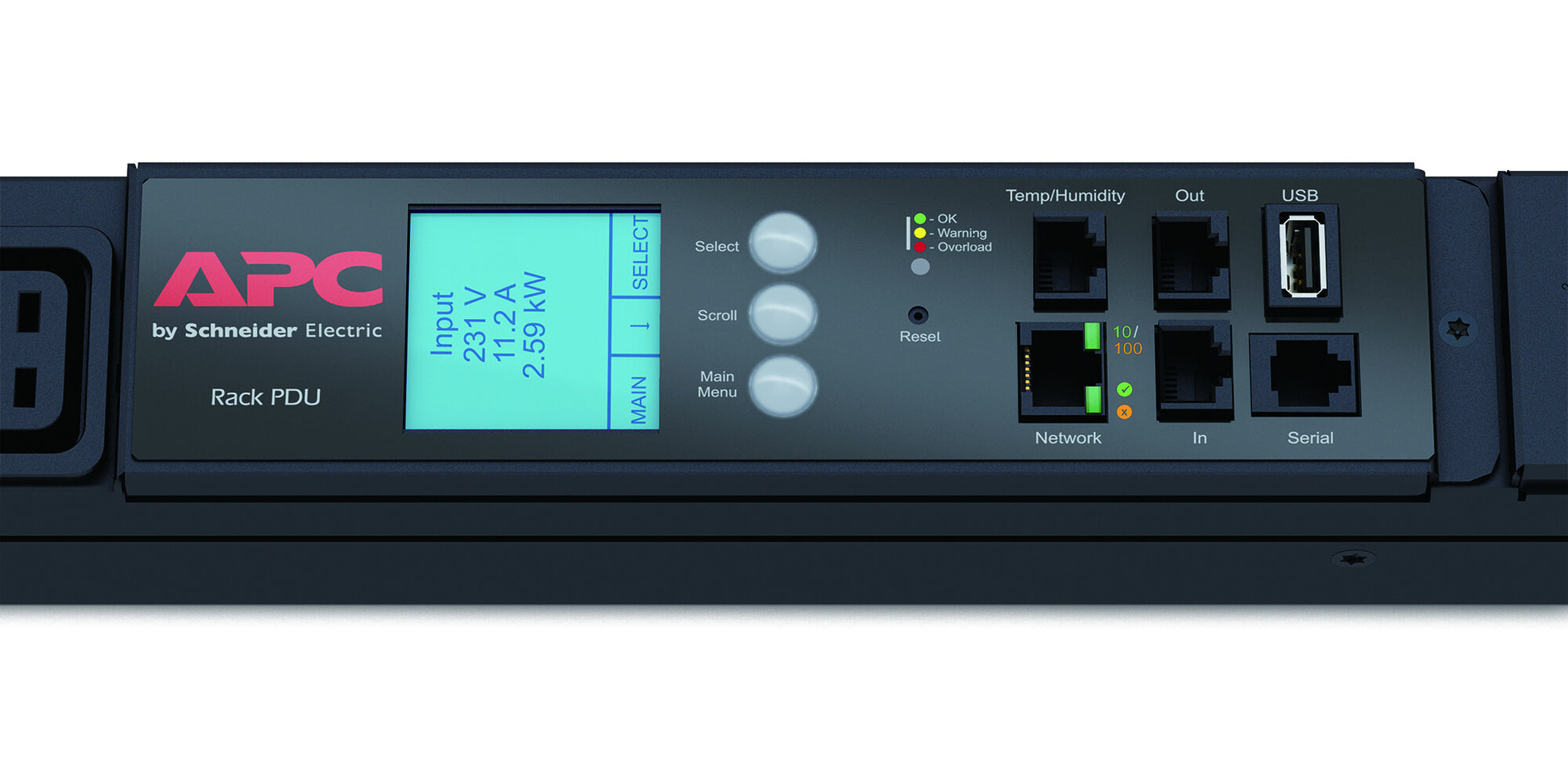

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Design
PDU types Metered
Rack capacity 0U
Mounting Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 42 AC outlet(s)

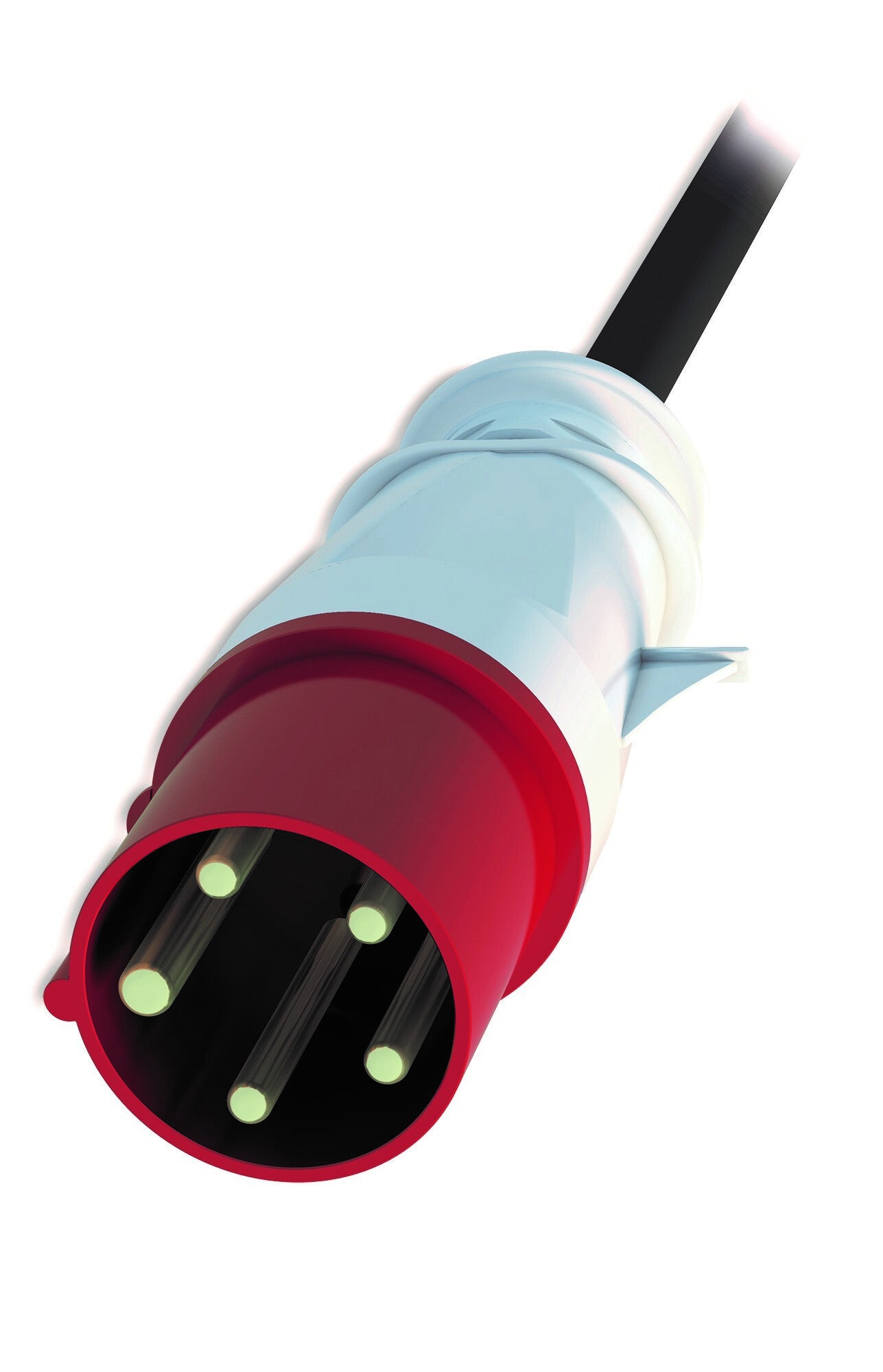

Power plug IEC309
AC outlet types C13 coupler, C19 coupler
Output connections 30 x IEC 320 C1312 x IEC 320 C19
Features
LED indicators Yes
Cable length 1.83 m
Certification EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDEREACH: No SVHCs
Management features
Monitoring Current, Power, Voltage
Power
Nominal input voltage 400 V
AC input frequency 50 - 60 Hz
Maximum current 32 A
Nominal output voltage 230 V
Load capacity 22080 VA
Maximum input current per phase 32 A
Power protection features Overload
Maximum power 22000 W
Weight & dimensions
Width 56 mm
Depth 51 mm
Height 1829 mm
Weight 8.72 kg
Packaging data
Package weight 11.6 kg
Package width 170 mm
Package depth 112 mm
Package height 2050 mm
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Technical details
Compliance certificates RoHS
Logistics data
Total carbon footprint 57837.86
