APC

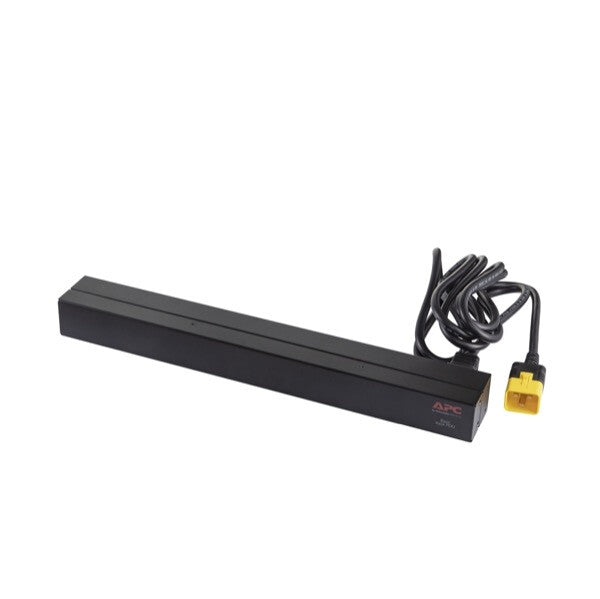

APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
APC NetShelter Basic Rack PDU, 1U, 1PH, 3.7kW 230V 16A or 3.3kW 208V 16A, x12 C13 outlets, C20 cord
SKU:AP9565
Low stock: 7 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Single-phase Basic 0U/1U Black
- 12 AC outlet(s) C13 coupler
- 3680 W
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (12)C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
| Design | |
|---|---|
| Product colour | Black |
| Mounting | Horizontal/Vertical |
| Rack capacity | 0U/1U |
| Type | Single-phase |
| PDU types | Basic |
| Ports & interfaces | |
|---|---|
| Output connections | (12) IEC 320 C13 |
| Input connection type | IEC-320 C20 |
| AC outlet types | C13 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 12 AC outlet(s) |
| Features | |
|---|---|
| Certification | cUL Listed,CE,CSA,GOST,Queensland Australia,UL 60950,UL Listed,VDE |
| Cable length | 2.5 m |
| Power | |
|---|---|
| Maximum power | 3680 W |
| Maximum input current per phase | 16 A |
| Load capacity | 3680 VA |
| Weight & dimensions | |
|---|---|
| Weight | 2.05 kg |
| Height | 44.5 mm |
| Dimensions (WxDxH) | 447 x 57.2 x 44.5 mm |
| Depth | 57.2 mm |
| Width | 447 mm |
| Packaging data | |
|---|---|
| Package height | 70 mm |
| Package depth | 229 mm |
| Package width | 464 mm |
| Package dimensions (WxDxH) | 464 x 229 x 70 mm |
| Package weight | 3.64 kg |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Logistics data | |
|---|---|
| Total carbon footprint | 55.19 |
