• APC KVM1116R KVM switch, Rack mounting, black
1 2

APC

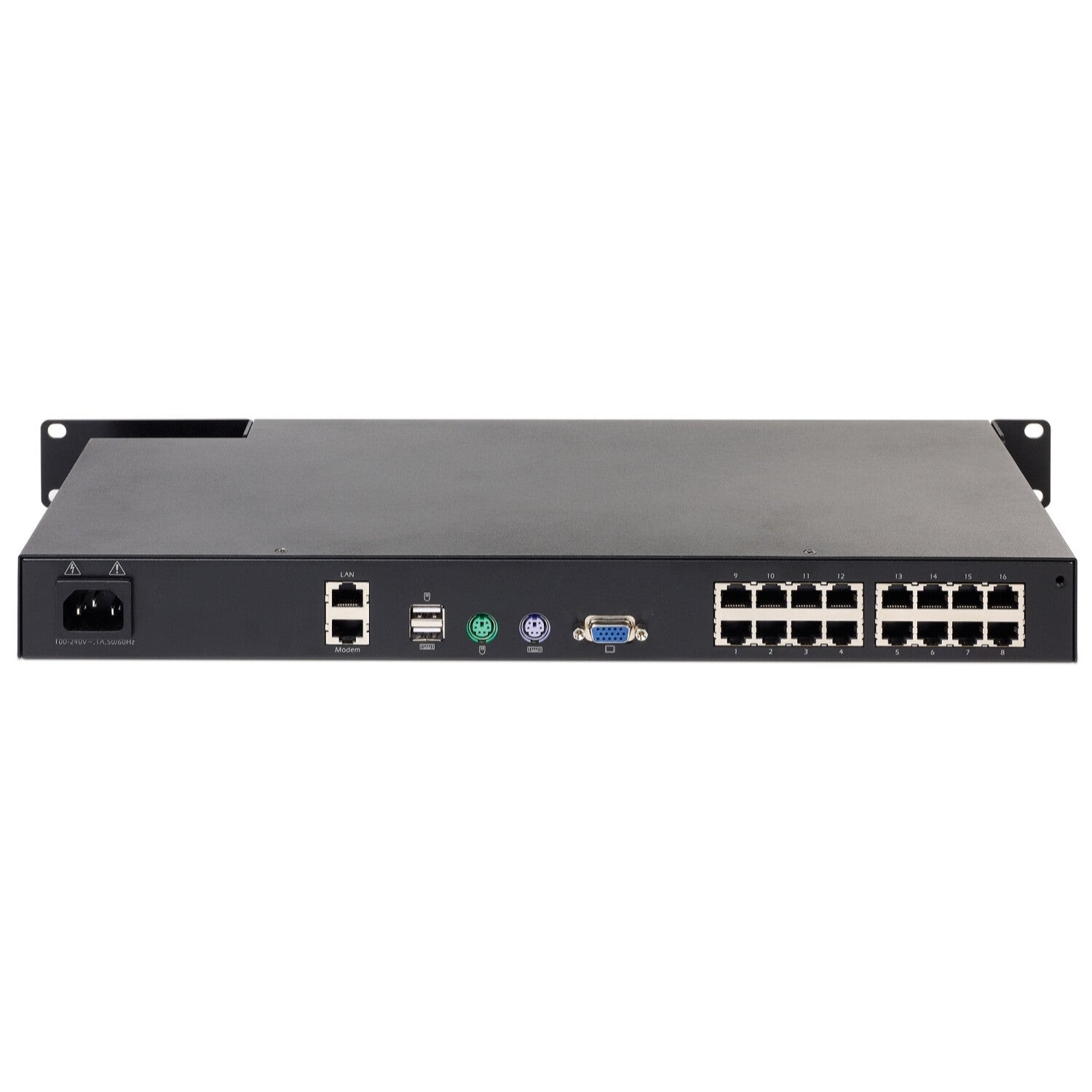

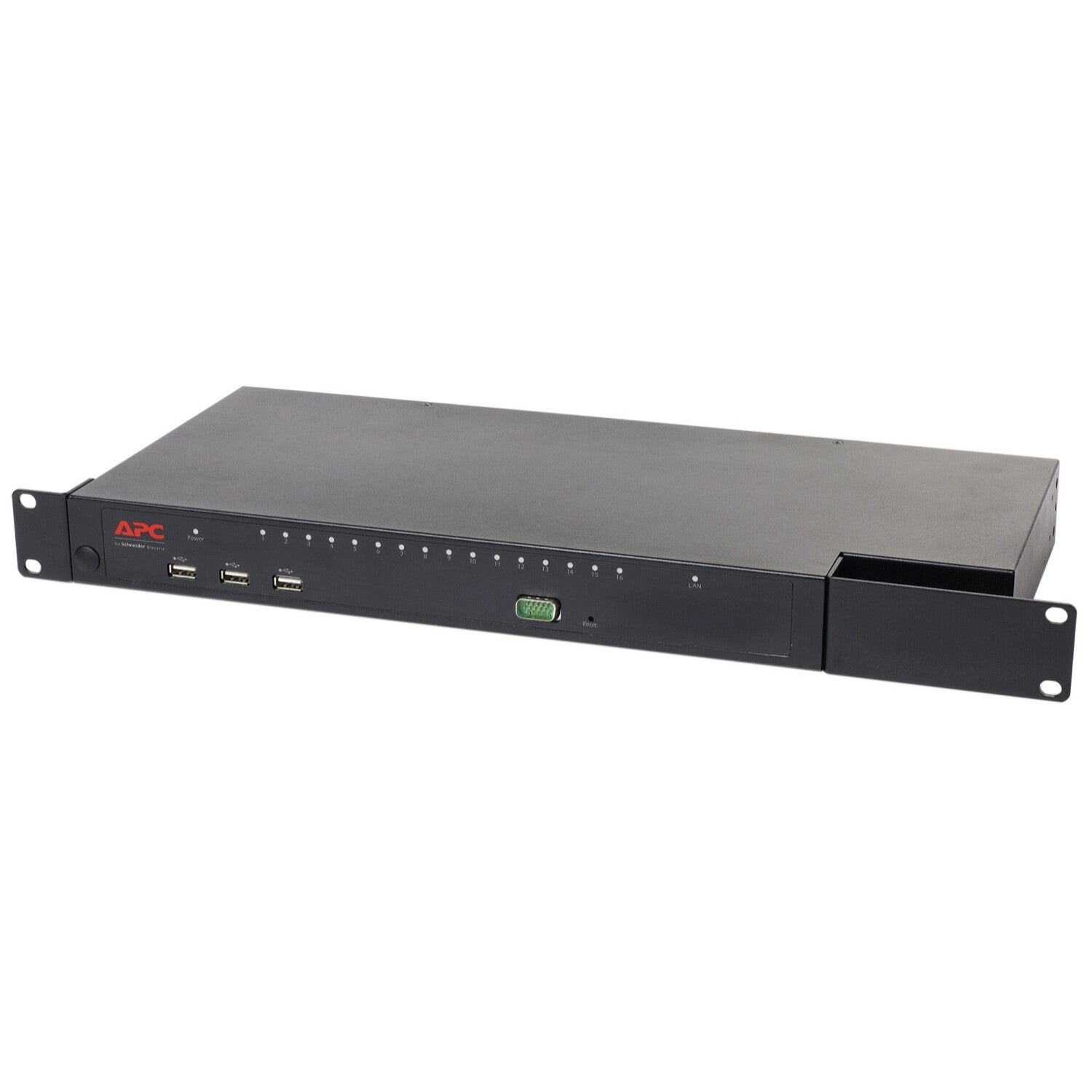

APC KVM1116R KVM switch Rack mounting Black

APC KVM1116R KVM switch Rack mounting Black

KVM1116R

£1,791.24 GBP£1,492.70 GBP
£0.00 GBP £1,791.24 GBP£1,492.70 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 1 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Manage multiple servers with just one keyboard, monitor and mouse
APC KVM1116R - KVM 2G, Digital/IP, 1 Remote/1 Local User, 16 Ports with Virtual Media - FIPS 140-2

The APC KVM 2G Digital/IP Switch supports one remote and one local user, with sixteen ports and virtual media. It is a 1U rack-mountable device. It supports various input voltages and frequencies, and includes a CD with software, installation guide and rack-mount brackets.

Occupies 1U of rack space
Conserve valuable rack space in the data center.

Hot Pluggable Operation
Add or remove servers without having to power off the switch.

Multi-platform Support
Windows, Sun, Unix and Linux compatible.

Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.

Out-of-band management
Troubleshoot servers and diagnose problems in lieu of a working operating system with POST and BIOS-level access to servers.

Multi-platform Support
Windows, Sun, Unix and Linux compatible.

Scalable Architecture
Cascade multiple KVM switches for a modular solution that supports multiple platforms, improving flexibility and simplifying future expansion. Please see the user's manual for specific cascading capabilities.

Ports & interfaces
Number of computers controlled 16
Keyboard port type PS/2
Mouse port type PS/2
Video port type VGA
VGA (D-Sub) ports quantity 1
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Design
Rack capacity 1U
Rack mounting Yes
Product colour Black
Certification C-tick, CE, EAC, FCC Part 15 Class A, ICES-003, TAA compliance, UL-AR, UL 60950-1, VCCI Class A, VDE
Display
Built-in display No
Power
AC input frequency 50 - 60 Hz
Sustainability
Compliance certificates RoHS
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 80%
Storage relative humidity (H-H) 0 - 80%
Weight & dimensions
Width 424 mm
Depth 188 mm
Height 43 mm
Weight 2.59 kg
Packaging data
Package width 619 mm
Package depth 330 mm
Package height 146 mm
Package weight 3.99 kg
Logistics data
Harmonized System (HS) code 85176200
