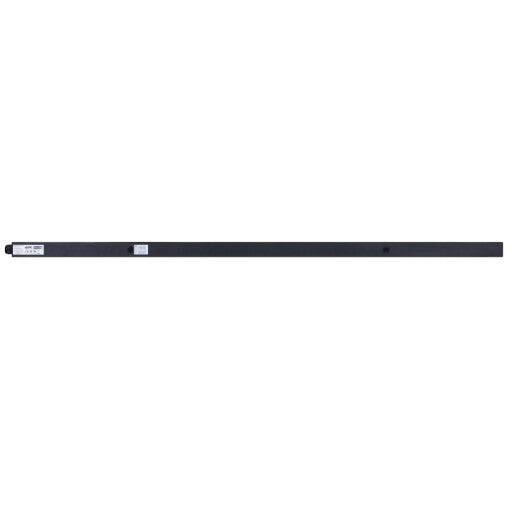

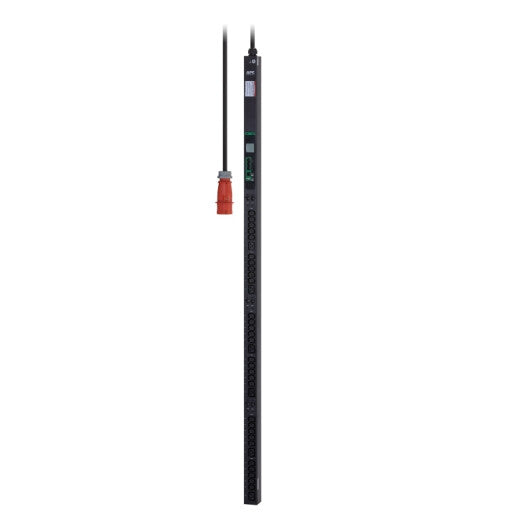

APC EPDU1232SX3620 power distribution unit (PDU) 36 AC outlet(s) 0U Black
APC EPDU1232SX3620 power distribution unit (PDU) 36 AC outlet(s) 0U Black
Regular price
£2,089.46 GBP
Regular price
Sale price
£2,089.46 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:EPDU1232SX3620
18 in stock
- Switched 0U Black
- 36 AC outlet(s) C13 coupler, C19 coupler
- 22000 W
EasyPDU, Switched, Zero U, 22 kW, 230V, 30 x C13 & 6 x C19
Easy Switched Rack Power Distribution Units (Rack PDU) provide on/off outlet switching, advanced power management, load monitoring and much more features than the average power strip.
| Design | |
|---|---|
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| PDU types | Switched |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 320 |
| AC outlets quantity | 36 AC outlet(s) |
| Features | |
|---|---|
| Certification | EAC, RCM, TÜV |
| Cable length | 2 m |
| Power | |
|---|---|
| Maximum power | 22000 W |
| Output voltage | 230 V |
| Maximum current | 32 A |
| AC input frequency | 60 / 50 Hz |
| Nominal input voltage | 400 V |
| Weight & dimensions | |
|---|---|
| Weight | 8.28 kg |
| Height | 1794 mm |
| Depth | 62 mm |
| Width | 55 mm |
| Packaging data | |
|---|---|
| Package height | 1950 mm |
| Package depth | 110 mm |
| Package width | 160 mm |
| Package weight | 9.56 kg |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE |
