    APC

    APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

    APC Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

    £133.86 GBP
    £133.86 GBP
    Sale Sold out
    Tax included. Shipping calculated at checkout.

    EPDU1016B

    Low stock: 2 left

    • Single-phase Basic 1U Black
    • 8 AC outlet(s) C13 coupler
    • 3680 W
    Easy Rack PDU, Basic, 1U, 1 Phase, 3.7kW, 230V, 16A, 8 x C13 outlets, IEC60320 C20 inlet

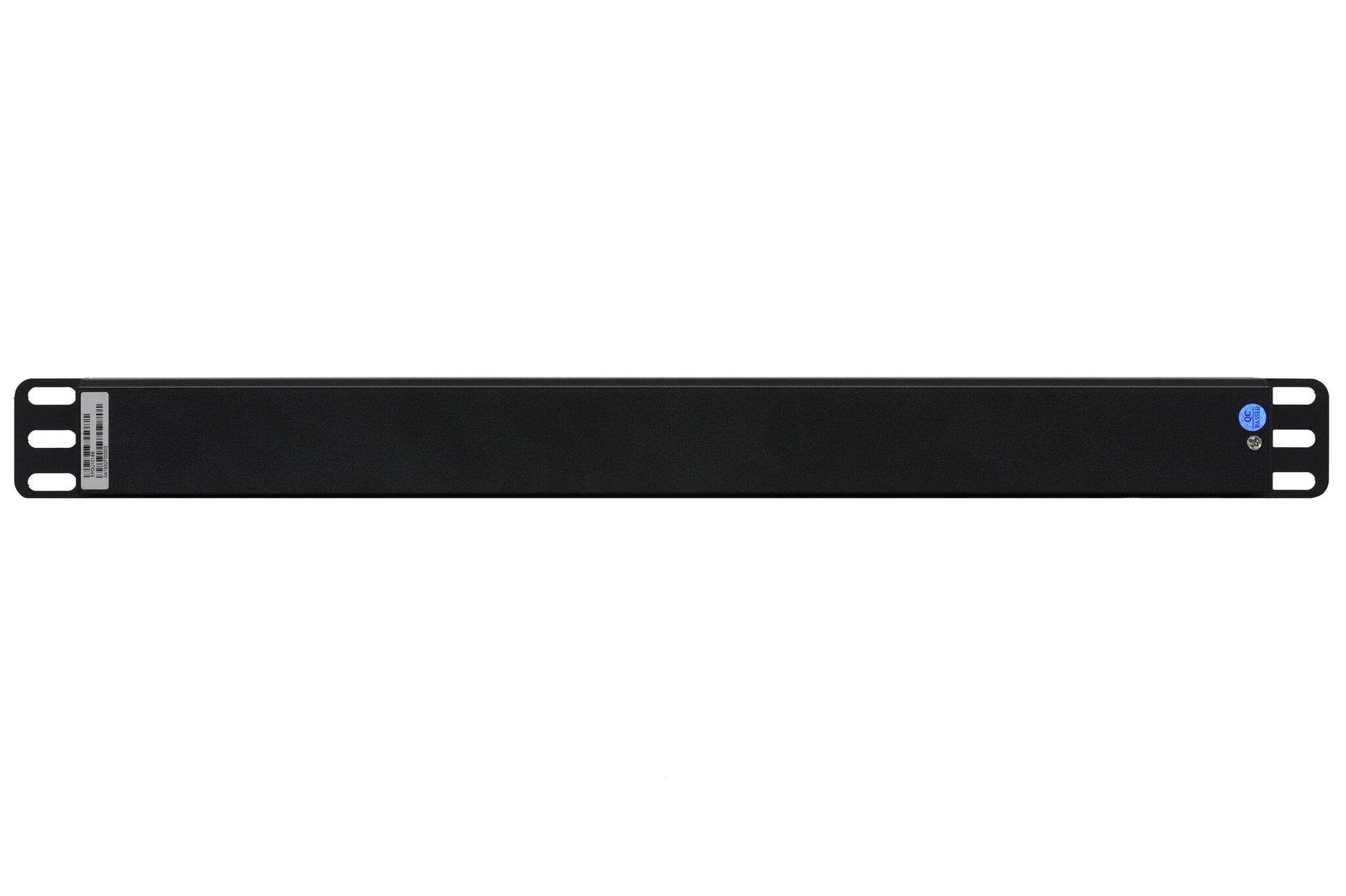

    APC Easy Basic Rack PDU EPDU1016B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is horizontal rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1016B has IEC-320 C20 200-240V type inlet and eight IEC C13 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. The packaging includes cable, installation guide, user manual and rack mounting brackets for quick and easy mounting inside the rack. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

    Design
    PDU types Basic
    Type Single-phase
    Rack capacity 1U
    Mounting Horizontal
    Housing material Aluminium
    Product colour Black
    On/off switch No
    Ports & interfaces
    AC outlets quantity 8 AC outlet(s)
    Power plug C20 coupler
    AC outlet types C13 coupler
    Features
    Daisy chain No
    Cable length 2.5 m
    Certification CE, TUV
    Power
    Nominal input voltage 200/208/230 V
    AC input frequency 50 - 60 Hz
    Maximum current 16 A
    Nominal output voltage 208/230 V
    Load capacity 3680 VA
    Maximum input current per phase 16 A
    Maximum power 3680 W
    Weight & dimensions
    Width 482 mm
    Depth 44 mm
    Height 44 mm
    Weight 580 g
    Packaging data
    Package weight 1.18 kg
    Package width 560 mm
    Package depth 80 mm
    Package height 150 mm
    Packaging content
    Manual Yes
    Operational conditions
    Operating temperature (T-T) -5 - 45 °C
    Storage temperature (T-T) -25 - 65 °C
    Storage relative humidity (H-H) 5 - 95%
    Operating relative humidity (H-H) 5 - 95%
    Operating altitude 0 - 3000 m
    Non-operating altitude 0 - 15000 m
    Technical details
    Compliance certificates RoHS
