APC

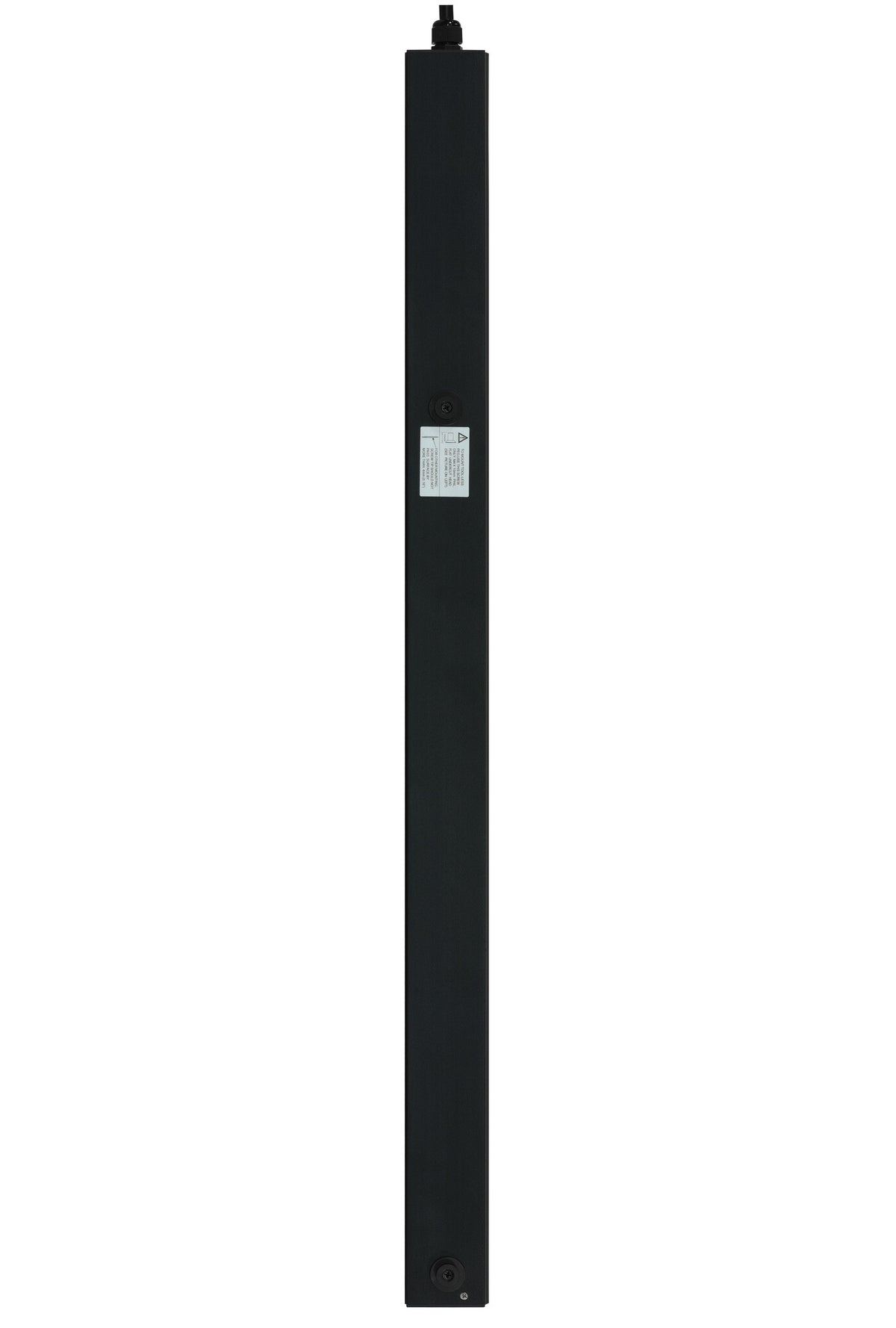

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

EPDU1116B

£264.42 GBP£220.35 GBP
£0.00 GBP £264.42 GBP£220.35 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 2 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Single-phase Basic 0U Black
  • 24 AC outlet(s) C13 coupler, C19 coupler
  • 3680 W
Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 20 x C13 and 4 x C19 outlets, IEC60309 2P+E inlet

APC Easy Basic Rack PDU EPDU1116B is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B has IEC 309 16A 2P+E type inlet, Twenty IEC C13 and four IEC C19 type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip. Saves time and money during installation by using one branch whip and standard connections.

Design
PDU types Basic
Type Single-phase
Rack capacity 0U
Mounting Vertical
Housing material Aluminium
Product colour Black
On/off switch No
Ports & interfaces
AC outlets quantity 24 AC outlet(s)
Power plug IEC 60309
AC outlet types C13 coupler, C19 coupler
Features
Cable length 3 m
Power
Nominal input voltage 200/208/230 V
AC input frequency 50 - 60 Hz
Maximum current 16 A
Nominal output voltage 230 V
Load capacity 3680 VA
Maximum input current per phase 16 A
Maximum power 3680 W
Weight & dimensions
Width 62 mm
Depth 44 mm
Height 902 mm
Weight 2.2 kg
Packaging data
Package weight 2.98 kg
Package width 160 mm
Package depth 110 mm
Package height 1320 mm
Packaging content
Manual Yes
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 9000 m
Logistics data
Total carbon footprint 55.85
