APC AP8858EU3 power distribution unit (PDU) 20 AC outlet(s) 0U

APC AP8858EU3 power distribution unit (PDU) 20 AC outlet(s) 0U

AP8858EU3

£963.60 GBP£803.00 GBP
£0.00 GBP £963.60 GBP£803.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

33 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Metered 0U
  • 20 AC outlet(s) C13 coupler, C19 coupler
  • 3680 W

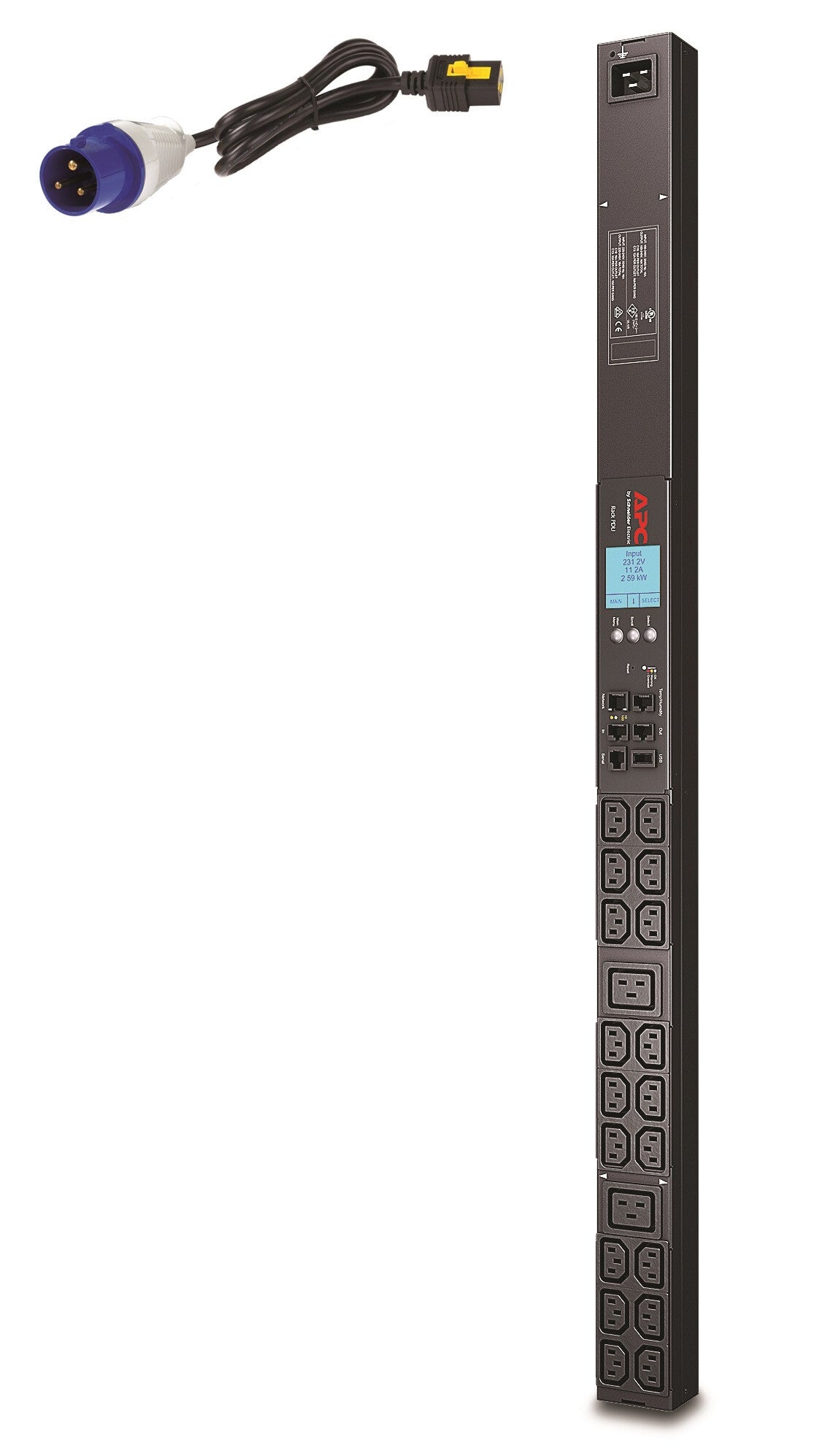

NetShelter Metered Rack PDU, 0U, 1PH, 3.7kW 230V 16A, x18C13 and x2C19 outlets, IEC 309 cord

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Design
PDU types Metered
Rack capacity 0U
Mounting Vertical
Ports & interfaces
AC outlets quantity 20 AC outlet(s)
Power plug IEC309
AC outlet types C13 coupler, C19 coupler

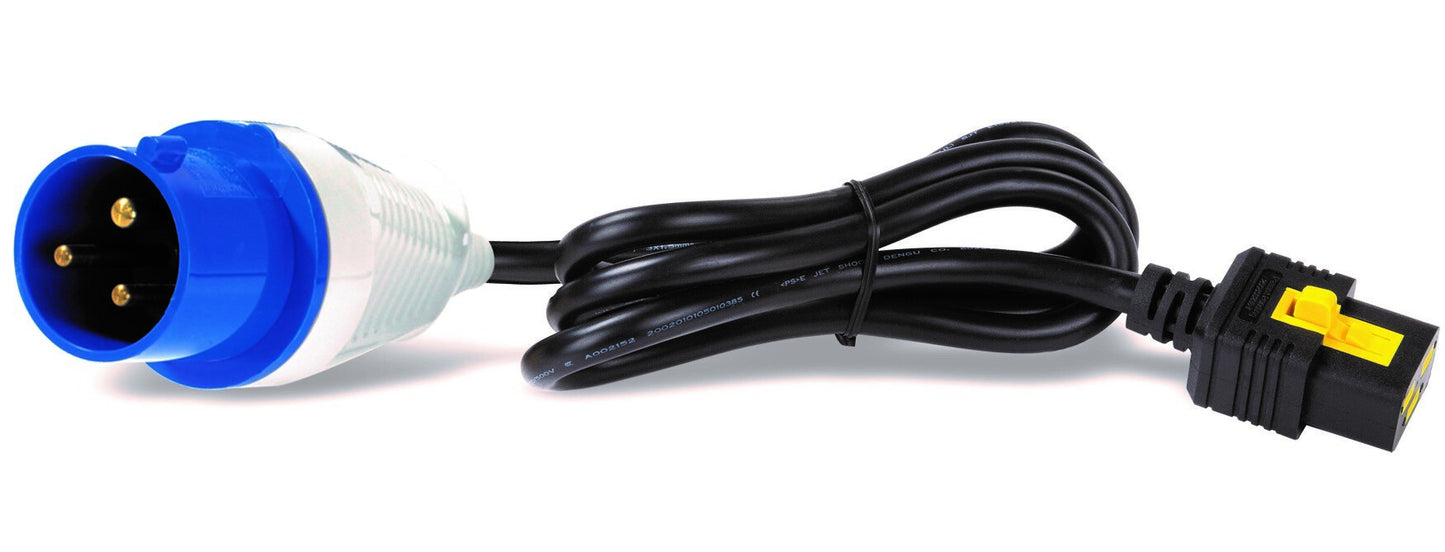

Input connection type IEC 309 16A 2P+E
Output connections 18x IEC 320 C13 2x IEC 320 C19
Features
Cable length 3 m
Certification CSA C22.2 No. 60950,IEC 60950,METI Denan,UL 60950-1,VDERoHS, REACH
Management features
Monitoring Current, Power, Voltage
Power
AC input frequency 50 - 60 Hz
Nominal output voltage 230 V
Load capacity 3680 VA
Maximum input current per phase 16 A
Maximum total current draw per phase 16 A
Maximum power 3680 W
Weight & dimensions
Width 56 mm
Depth 44 mm
Height 902 mm
Weight 2.93 kg
Packaging data
Package weight 4.92 kg
Package width 162 mm
Package depth 107 mm
Package height 1124 mm
Operational conditions
Operating temperature (T-T) 5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Logistics data
Total carbon footprint 13349.44
