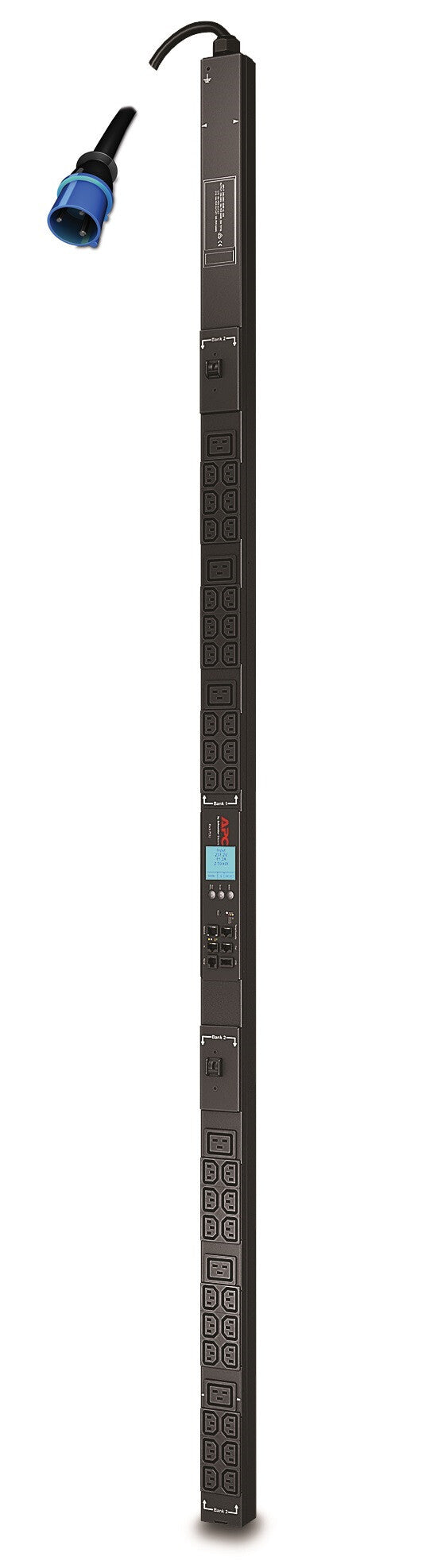

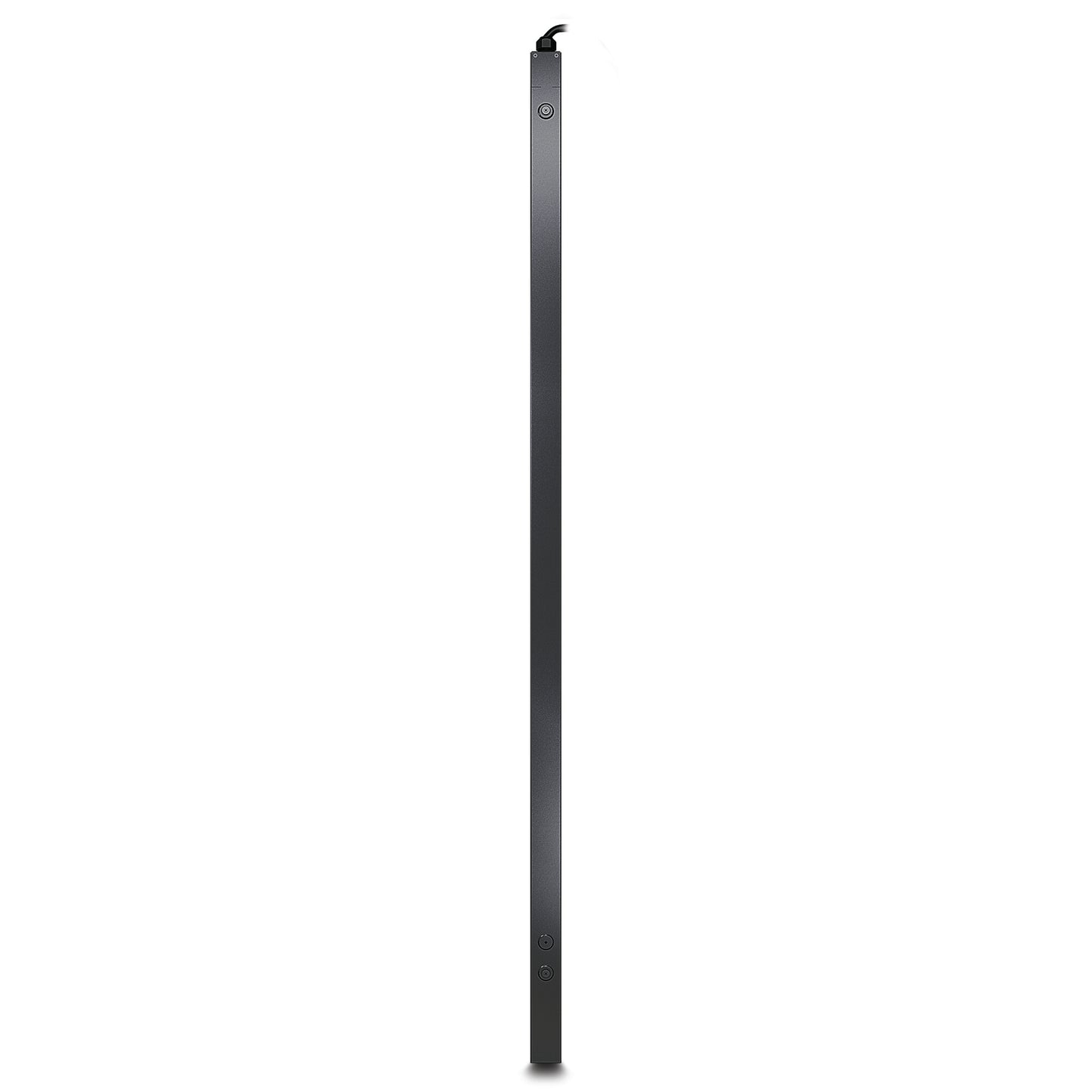

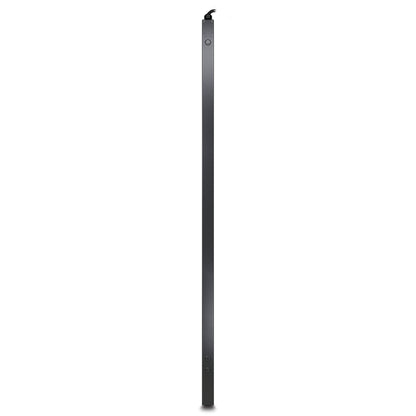

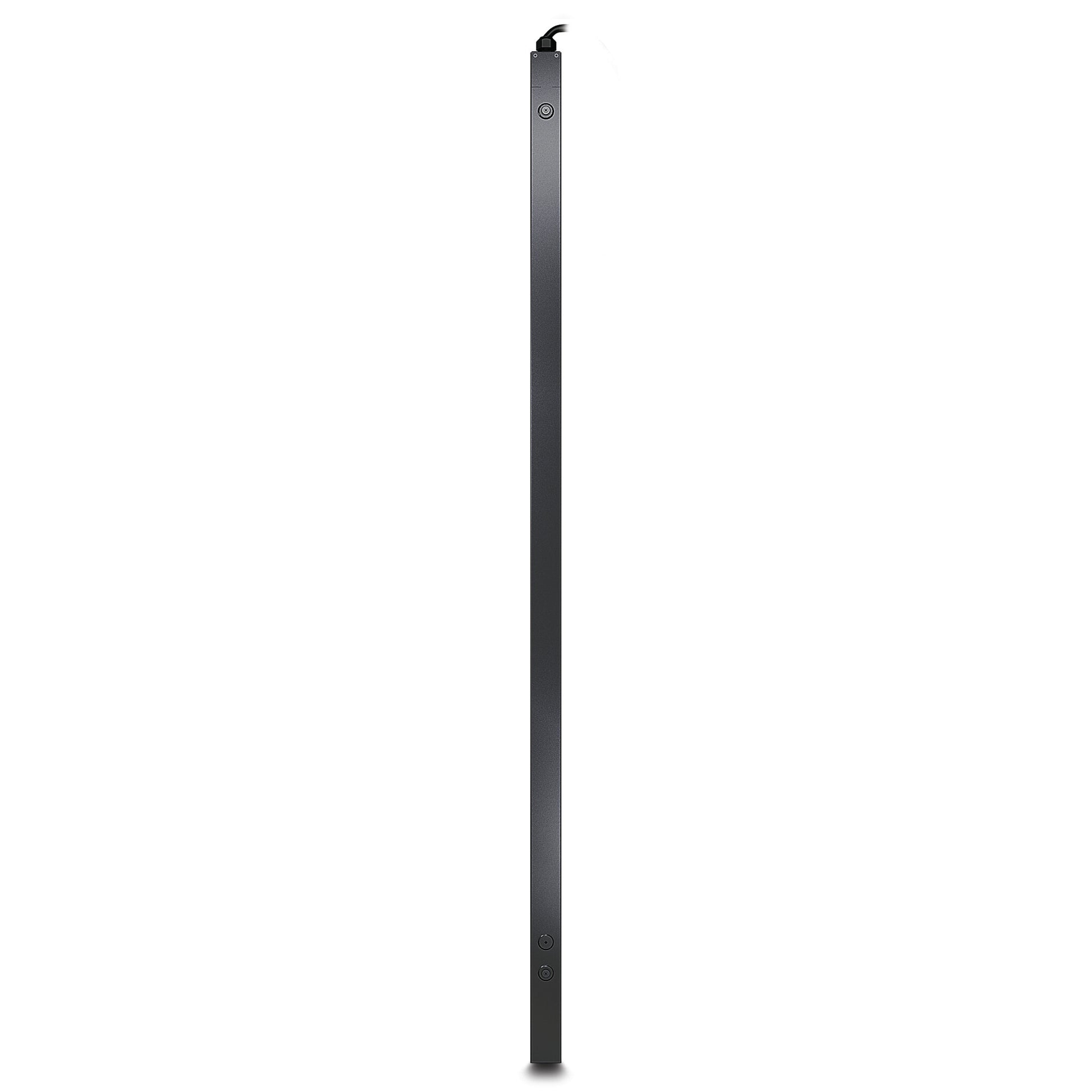

APC AP8853 power distribution unit (PDU) 42 AC outlet(s) 0U Black

APC AP8853 power distribution unit (PDU) 42 AC outlet(s) 0U Black

AP8853

£1,015.08 GBP£845.90 GBP
£0.00 GBP £1,015.08 GBP£845.90 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

30 in stock

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Single-phase Metered 0U Black
  • 42 AC outlet(s) C13 coupler, C19 coupler
  • 7680 W
NetShelter Metered Rack PDU, 0U, 1PH, 7.4kW 230V32A, 36 C13 and 6 C19 outlets, IEC 309 2P+E cord

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (36) C13 & (6) C19, and the cable length is 3m. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Design
PDU types Metered
Type Single-phase
Rack capacity 0U
Mounting Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 42 AC outlet(s)
Power plug IEC309
AC outlet types C13 coupler, C19 coupler

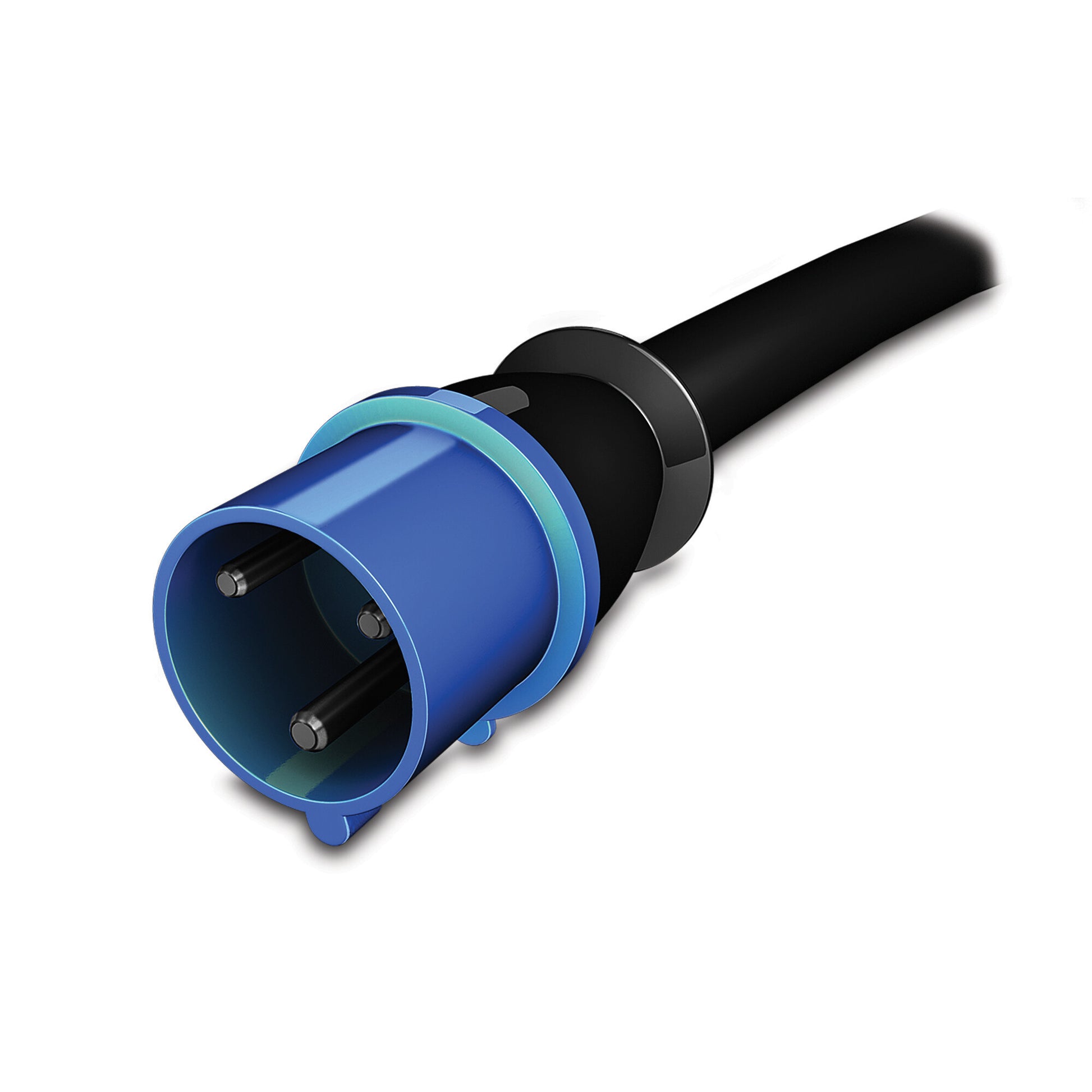

Input connection type IEC 309 32A 2P+E
Output connections 36x IEC 320 C13 6x IEC 320 C19
Features
Cable length 3 m
Certification RoHS, REACHIEC 60950,VDE
Management features
Monitoring Current, Power, Voltage
Power
AC input frequency 50 - 60 Hz
Nominal output voltage 230 V
Load capacity 7680 VA
Maximum input current per phase 32 A
Maximum total current draw per phase 32 A
Maximum power 7680 W
Weight & dimensions
Width 56 mm
Depth 44 mm
Height 1791 mm
Weight 6.93 kg
Operational conditions
Operating temperature (T-T) 5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Logistics data
Total carbon footprint 28921.23
