APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black
APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black
SKU:AP7822B
12 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Single-phase Metered 2U Black
- 16 AC outlet(s) C13 coupler, C19 coupler
- 7680 W

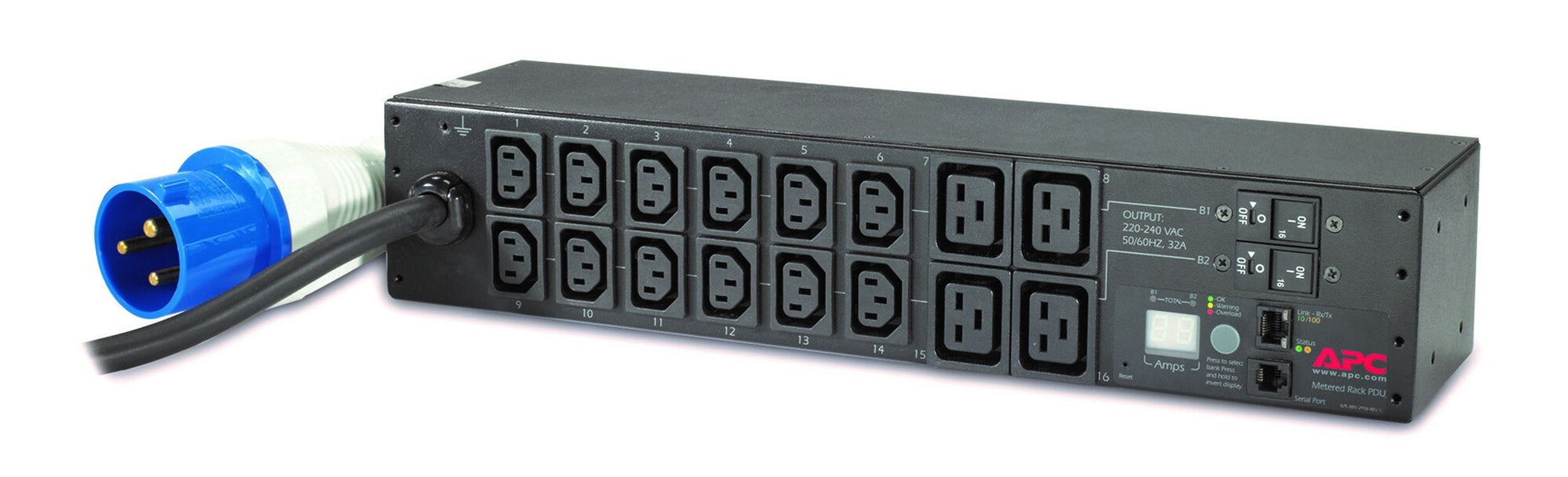

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
| Design | |
|---|---|
| PDU types | Metered |
| Type | Single-phase |
| Rack capacity | 2U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| On/off switch | Yes |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 16 AC outlet(s) |
| Power plug | IEC309 |
| AC outlet types | C13 coupler, C19 coupler |
| Input connection type | IEC 309 32A 2P+E |
| Output connections | 12 x C134 x C19 |
| Features | |
|---|---|
| LED indicators | Yes |
| Cable length | 3.66 m |
| Certification | C-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI |
| Management features | |
|---|---|
| Monitoring | Current, Power, Voltage |
| Power | |
|---|---|
| Nominal input voltage | 208-230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 32 A |
| Load capacity | 7680 VA |
| Maximum input current per phase | 32 A |
| Maximum total current draw per phase | 32 A |
| Power protection features | Overload |
| Maximum power | 7680 W |
| Weight & dimensions | |
|---|---|
| Width | 444 mm |
| Depth | 112 mm |
| Height | 88 mm |
| Weight | 3.36 kg |
| Packaging data | |
|---|---|
| Package weight | 5.41 kg |
| Package width | 508 mm |
| Package depth | 368 mm |
| Package height | 140 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Total carbon footprint | 8952.07 |
