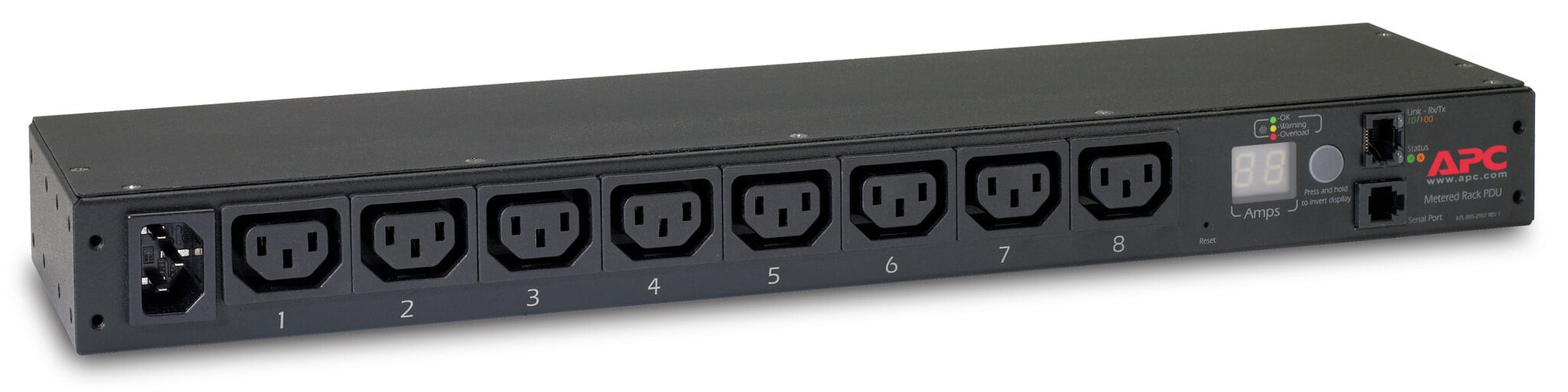

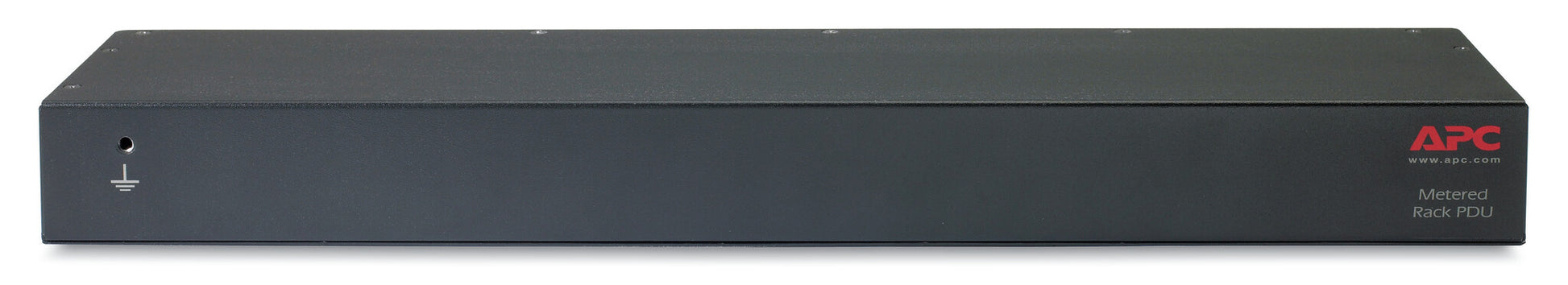

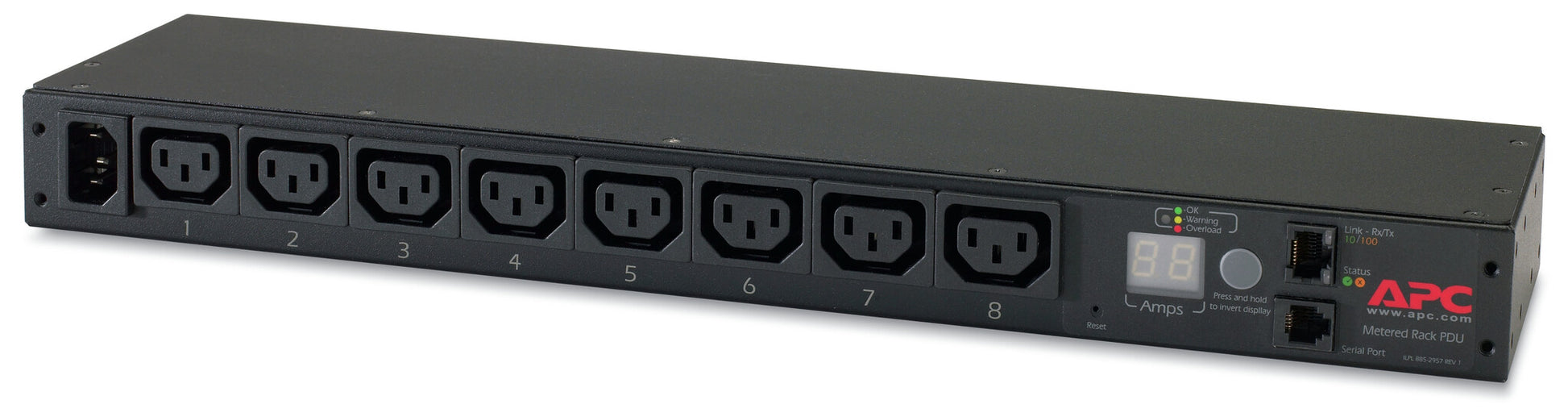

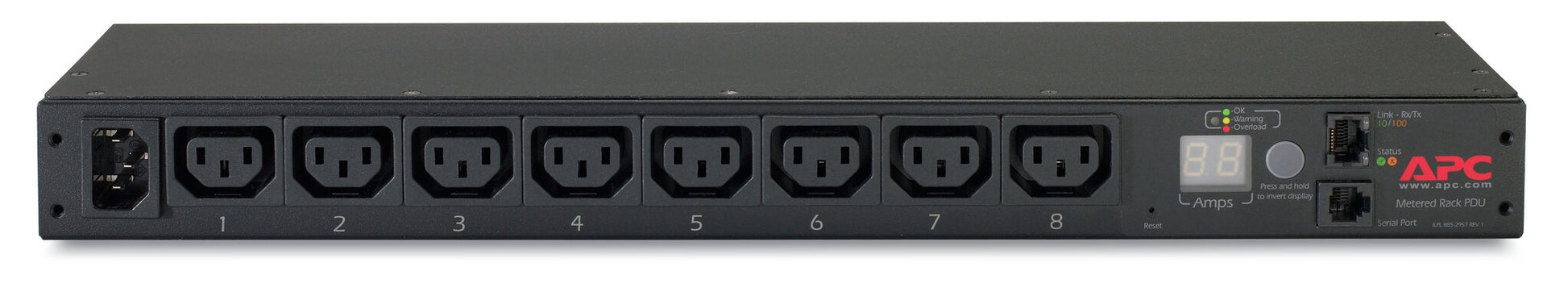

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

APC AP7820B power distribution unit (PDU) 8 AC outlet(s) 0U/1U Black

AP7820B

£728.64 GBP£607.20 GBP
£0.00 GBP £728.64 GBP£607.20 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock: 7 left

Delivery & lead times

Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.

Buying 5 or more? Volume pricing

We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.

Returns & warranty

See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

  • Metered 0U/1U Black
  • 8 AC outlet(s) C13 coupler
  • 2300 W
Rack PDU, Metered, 1U, 12A/208V, 10A/230V, 50/60 Hz, 8x IEC 320 C13, IEC-320 C14, 444 x 102 x 44 mm, 1730 g

Marketing Features

Local Current Monitoring Display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Local and web-based monitoring
Status available to customers both in the data center and remotely

Alarm Thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Design
PDU types Metered
Rack capacity 0U/1U
Mounting Horizontal/Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 8 AC outlet(s)
Power plug C14 coupler
AC outlet types C13 coupler
Input connection type IEC-320 C14
Features
LED indicators Yes
Cable length 1.98 m
Certification cUL, C-tick, CE, CSA, FCC 15 A, GOST, UL 60950, UL, VDE, VCCI
Management features
Monitoring Current, Power, Voltage
Power
Nominal input voltage 208-230 V
AC input frequency 50 - 60 Hz
Maximum current 15 A
Nominal output voltage 208-230 V
Load capacity 2300 VA
Maximum input current per phase 15 A
Maximum total current draw per phase 10 A
Maximum power 2300 W
Weight & dimensions
Width 444 mm
Depth 102 mm
Height 44 mm
Weight 1.73 kg
Packaging data
Package weight 2.91 kg
Package width 470 mm
Package depth 337 mm
Package height 64 mm
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Technical details
Compliance certificates RoHS
