APC

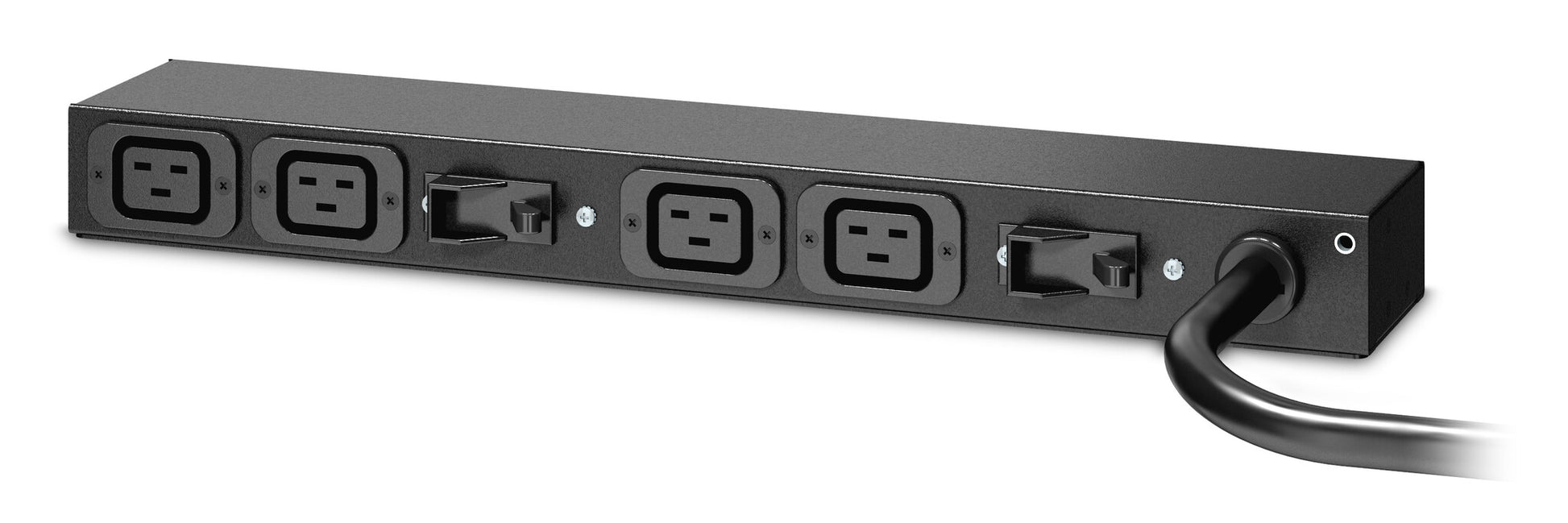

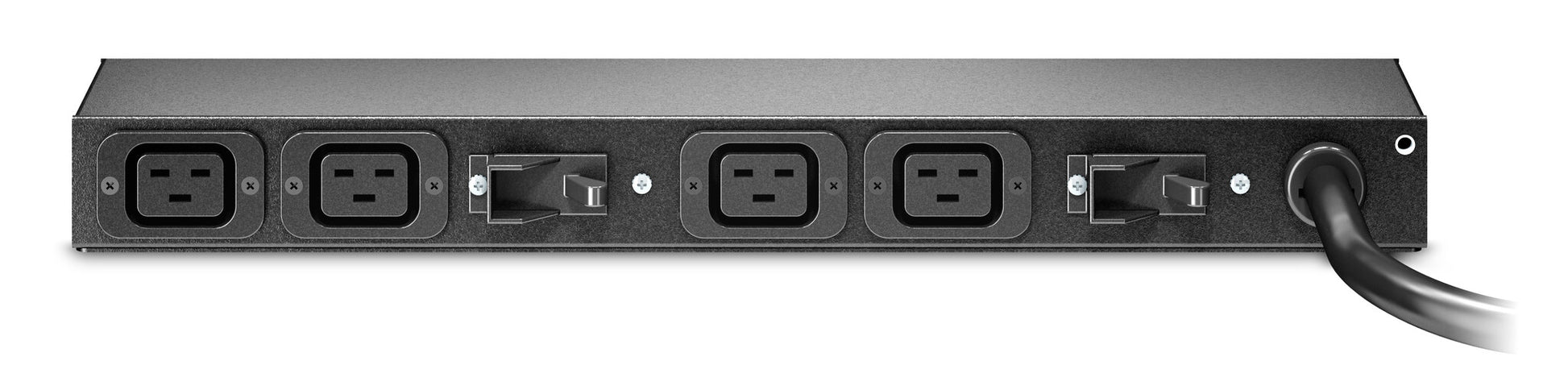

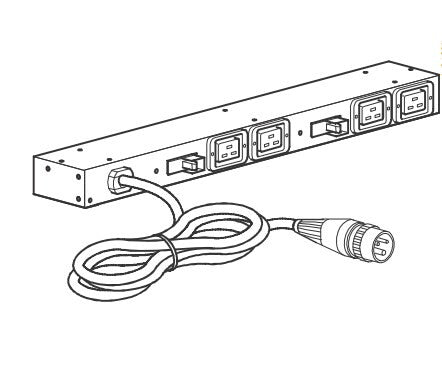

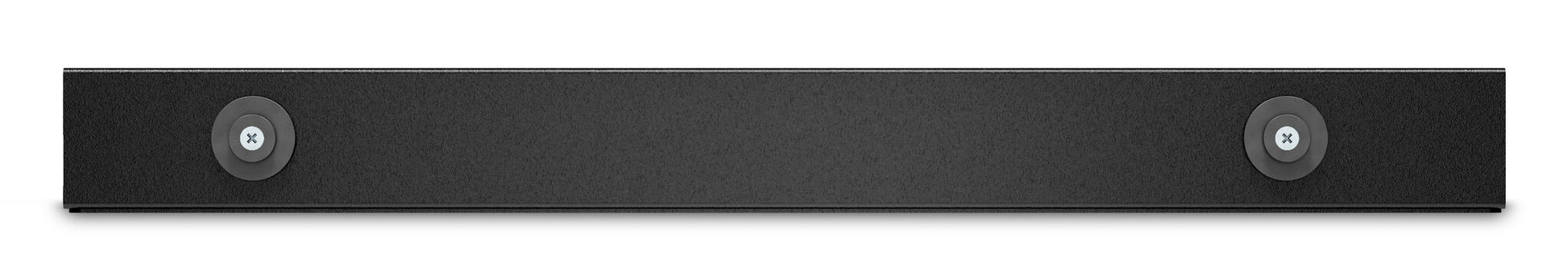

APC AP6032A power distribution unit (PDU) 4 AC outlet(s) 0U/1U Black

APC AP6032A power distribution unit (PDU) 4 AC outlet(s) 0U/1U Black

£241.18 GBP
£241.18 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AP6032A

Low stock: 2 left

  • Single-phase Basic 0U/1U Black
  • 4 AC outlet(s) C19 coupler
  • 7680 W
Rack PDU, Basic, 0U/1U, 220-240V, 32A, (4) C19, Black

The APC by Schneider Electric Basic Rack Power Distribution Unit (PDU) distributes power to devices in the rack.

Design
PDU types Basic
Type Single-phase
Rack capacity 0U/1U
Mounting Horizontal/Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 4 AC outlet(s)
Power plug IEC 60309
AC outlet types C19 coupler
Features
Cable length 3.65 m
Certification VDE, CE
Power
Nominal input voltage 200-240 V
AC input frequency 50 - 60 Hz
Maximum current 32 A
Nominal output voltage 200-240 V
Load capacity 7680 VA
Maximum input current per phase 32 A
Maximum power 7680 W
Weight & dimensions
Width 4.36 mm
Depth 9.29 mm
Height 43.8 mm
Dimensions (WxDxH) 4.36 x 9.29 x 43.81 mm
Weight 2.78 kg
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -15 - 60 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Technical details
Compliance certificates RoHS
