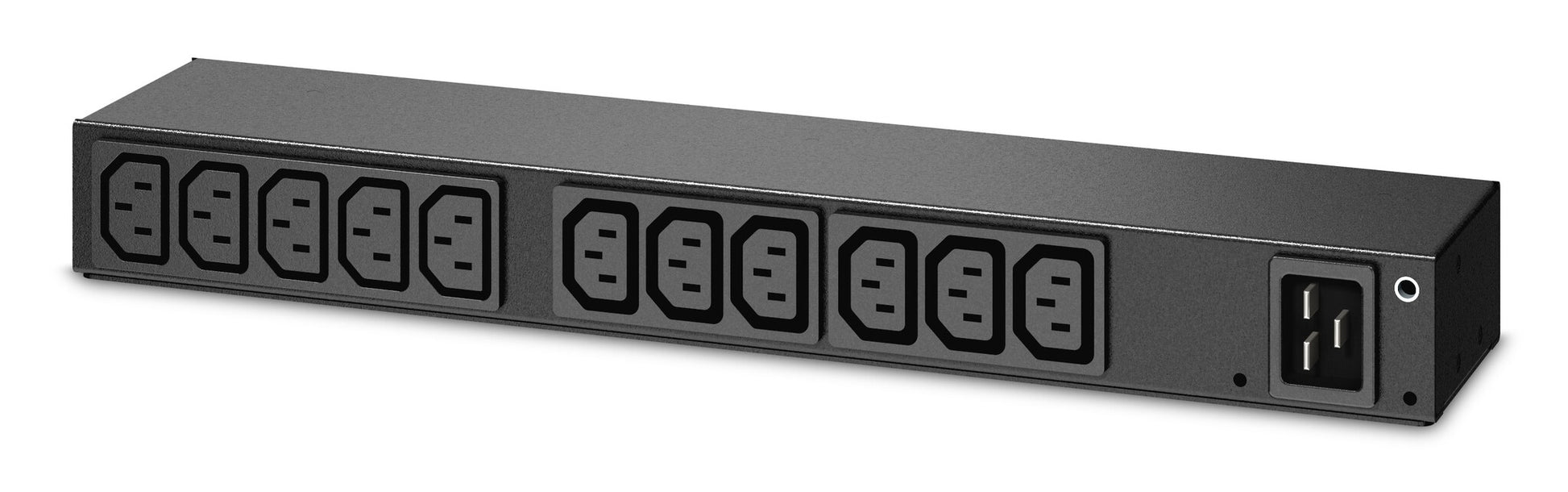

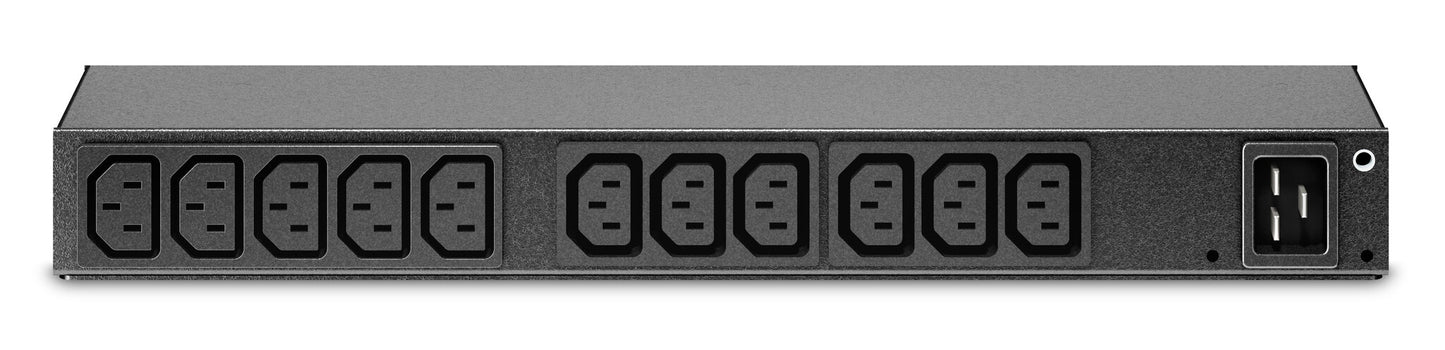

APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
APC AP6020A power distribution unit (PDU) 13 AC outlet(s) 0U/1U Black
SKU:AP6020A
Low stock: 10 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Single-phase Basic 0U/1U Black
- 13 AC outlet(s) C13 coupler
- 3680 W
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (13) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
| Design | |
|---|---|
| PDU types | Basic |
| Type | Single-phase |
| Rack capacity | 0U/1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| AC outlets quantity | 13 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Output connections | IEC 320 C13 |
| Features | |
|---|---|
| Certification | cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH |
| Power | |
|---|---|
| Nominal input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
| Weight & dimensions | |
|---|---|
| Width | 44 mm |
| Depth | 93 mm |
| Height | 388 mm |
| Weight | 1.5 kg |
| Packaging data | |
|---|---|
| Package weight | 2.02 kg |
| Package width | 210 mm |
| Package depth | 76 mm |
| Package height | 436 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -15 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Total carbon footprint | 38.04 |
