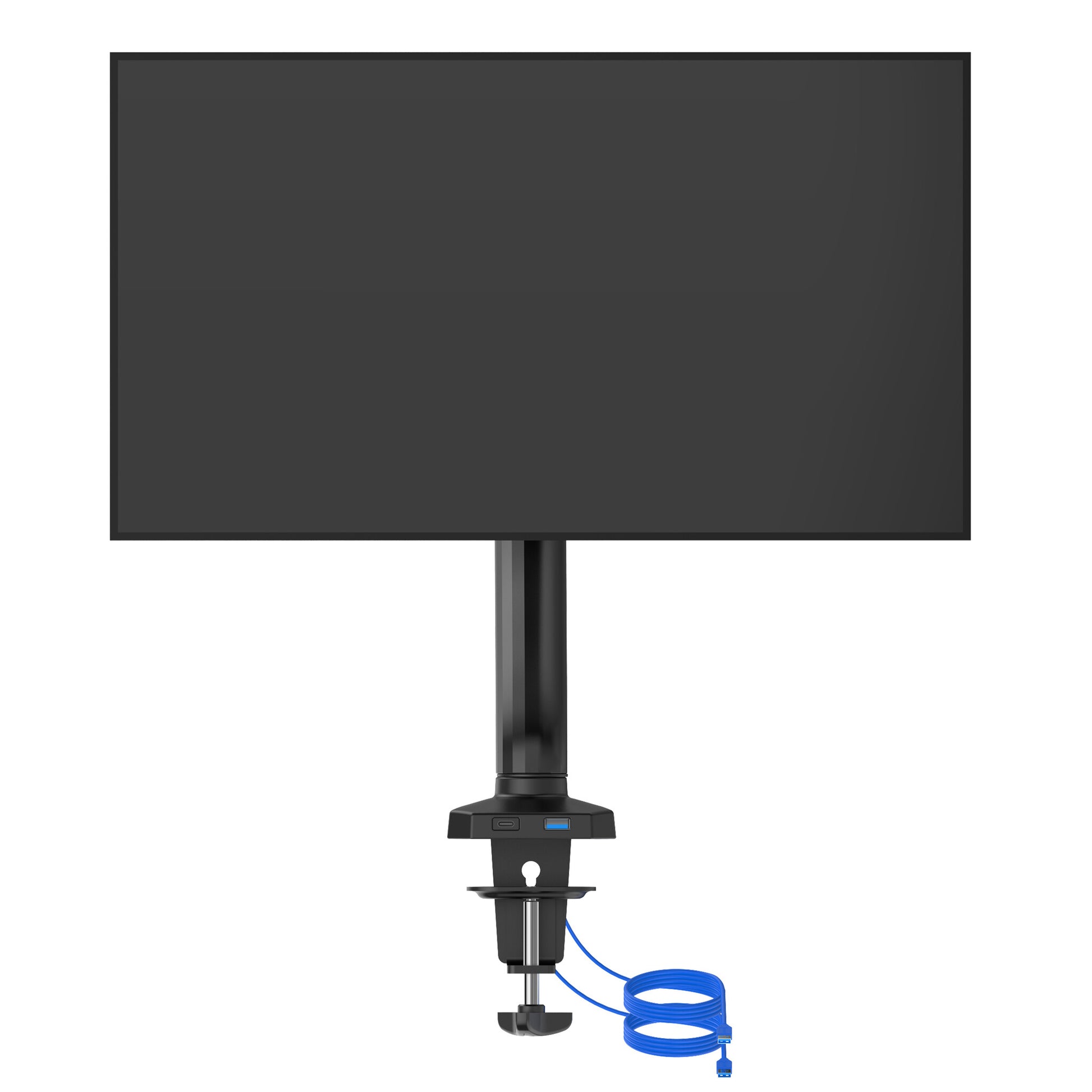

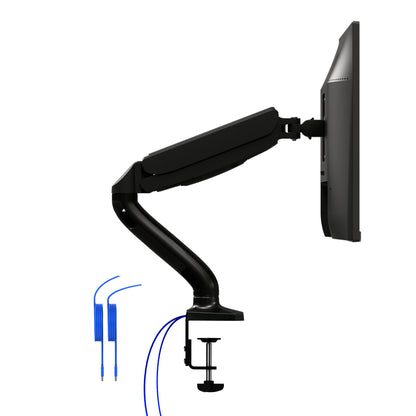

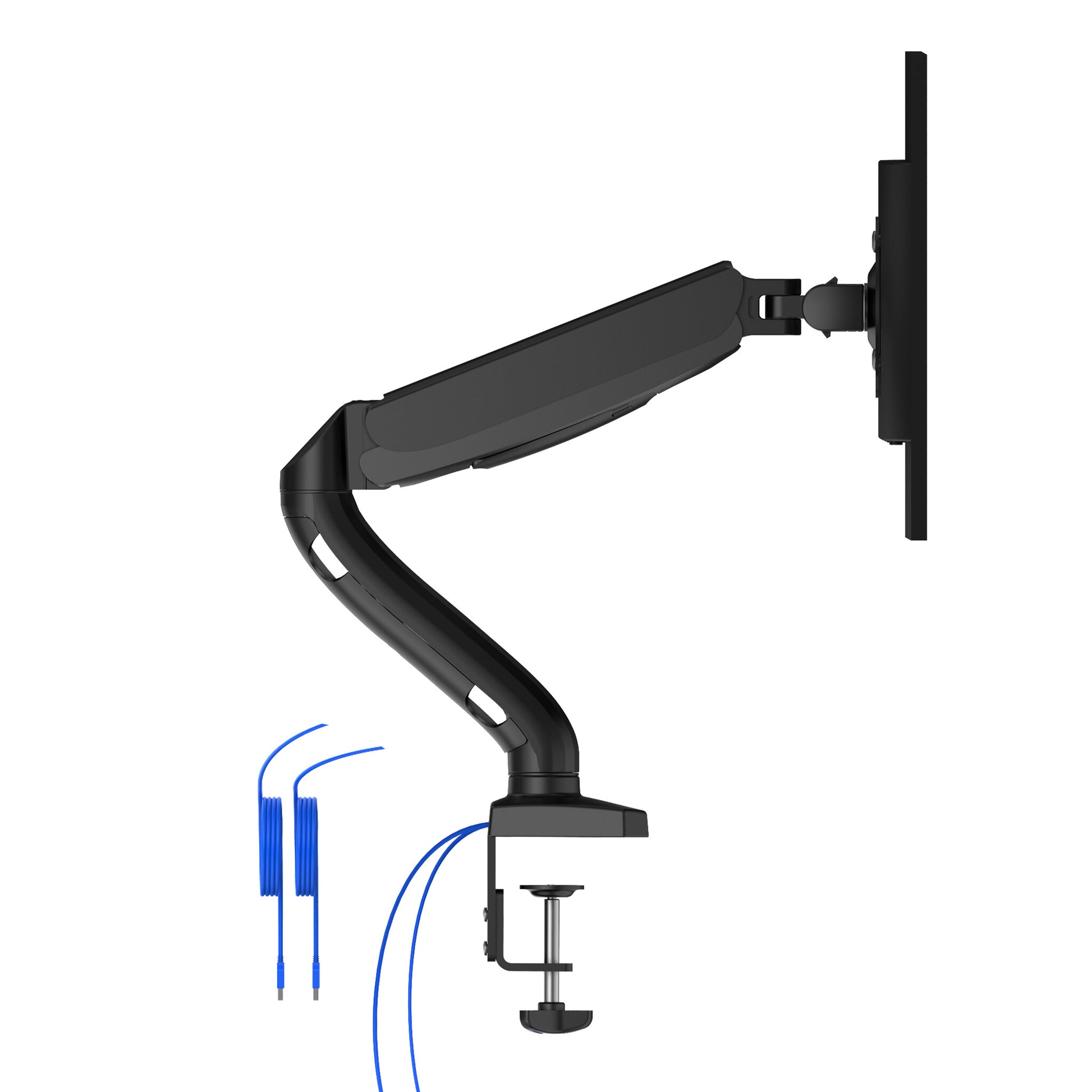

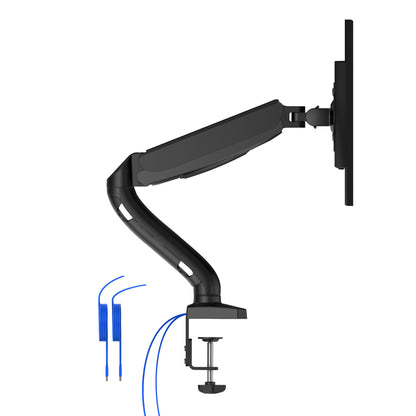

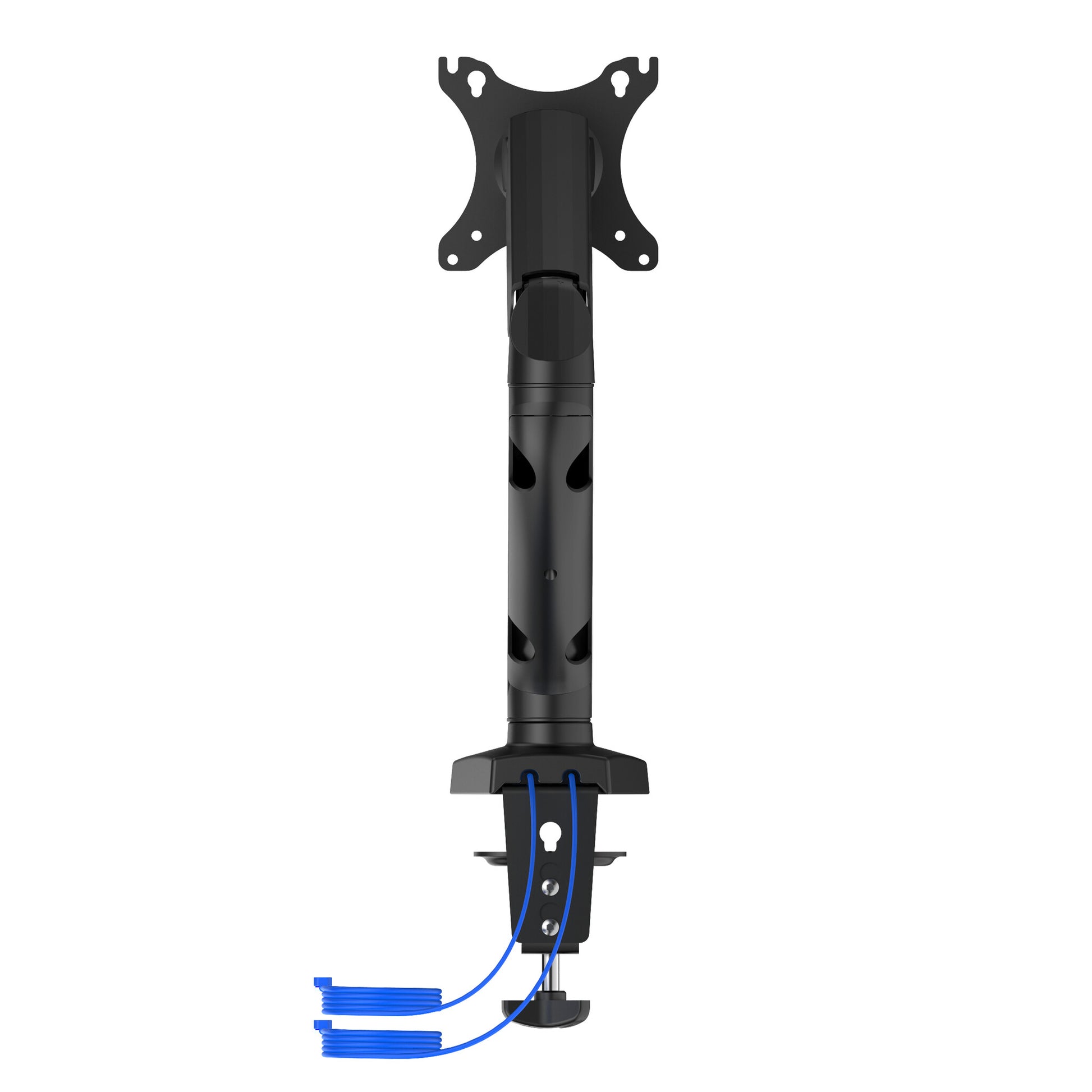

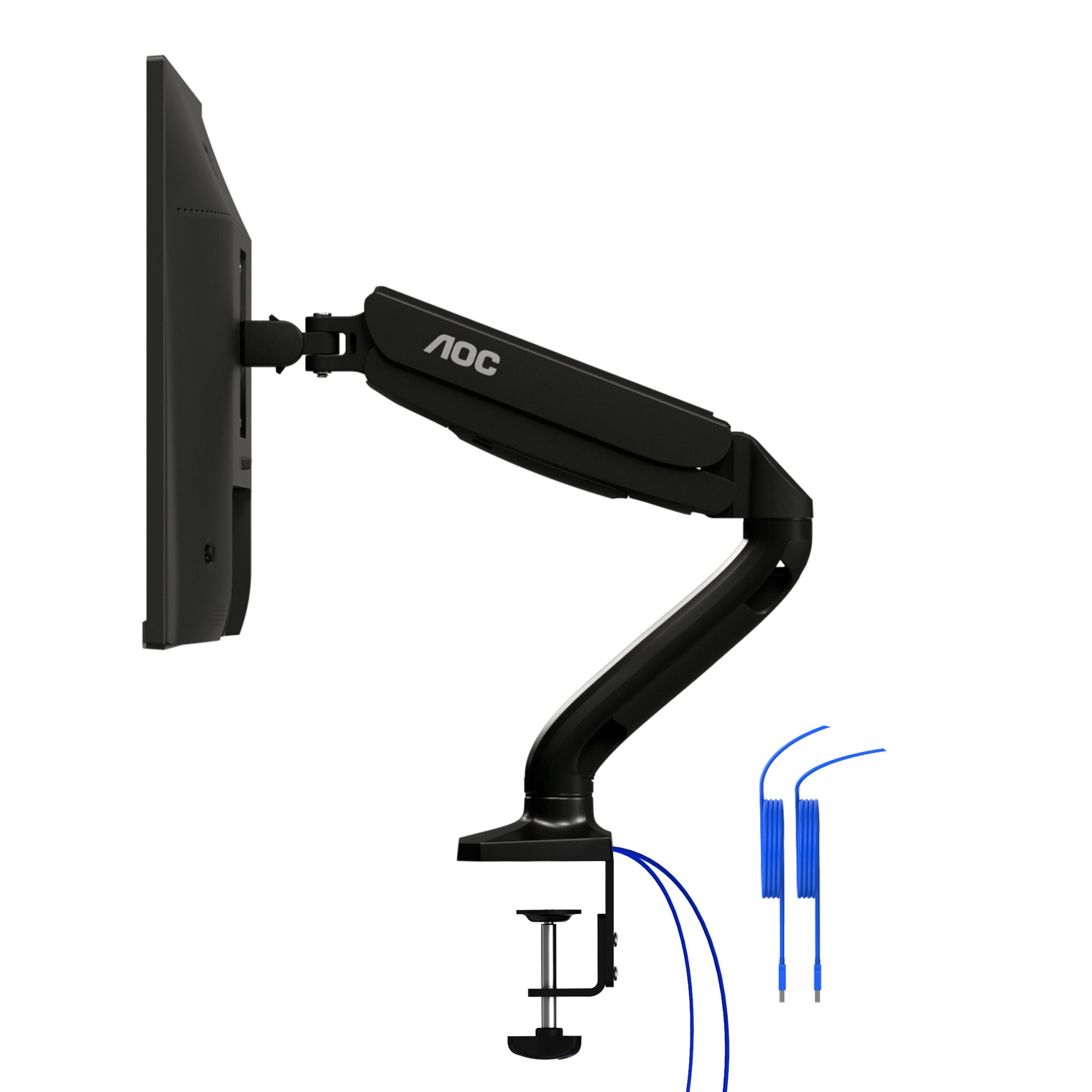

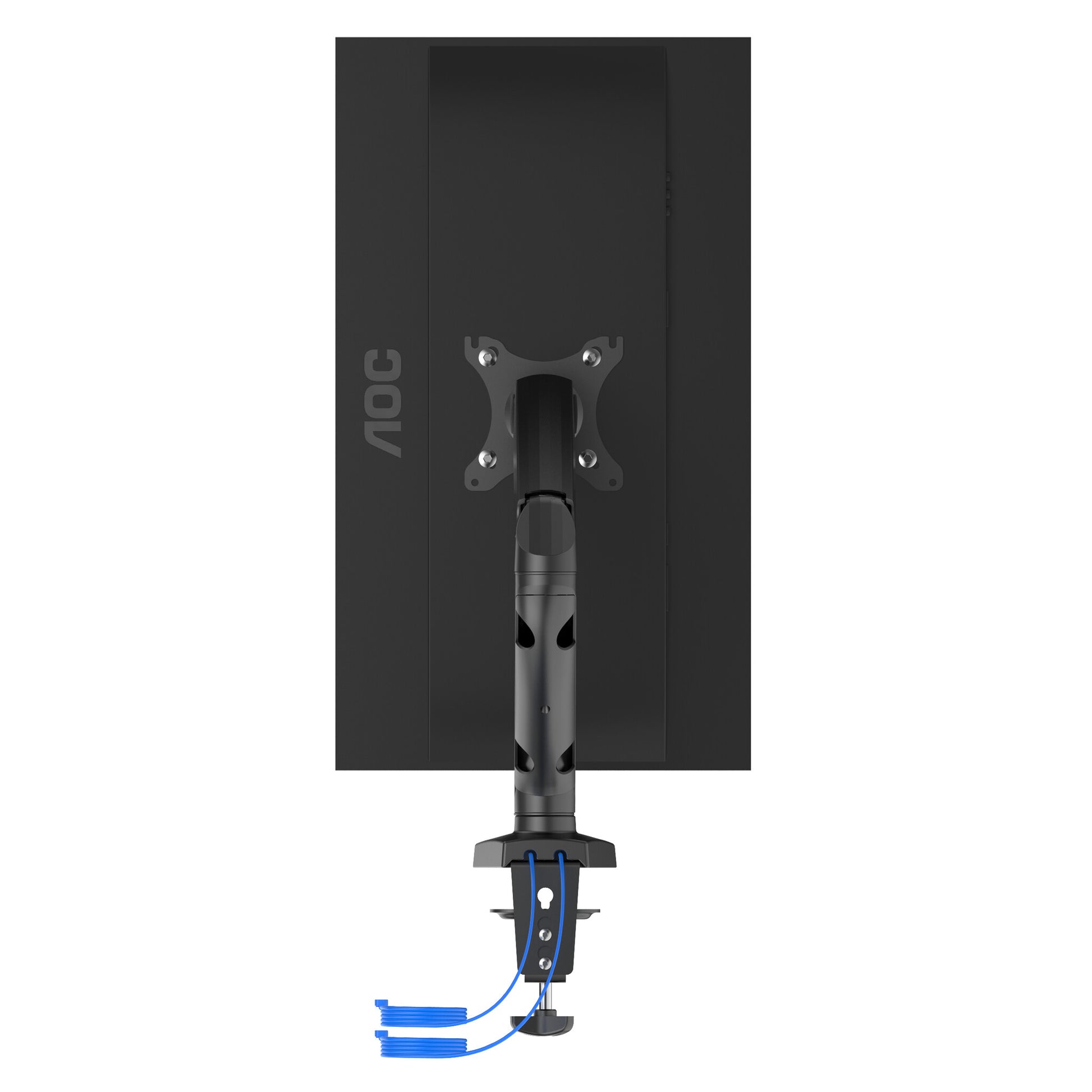

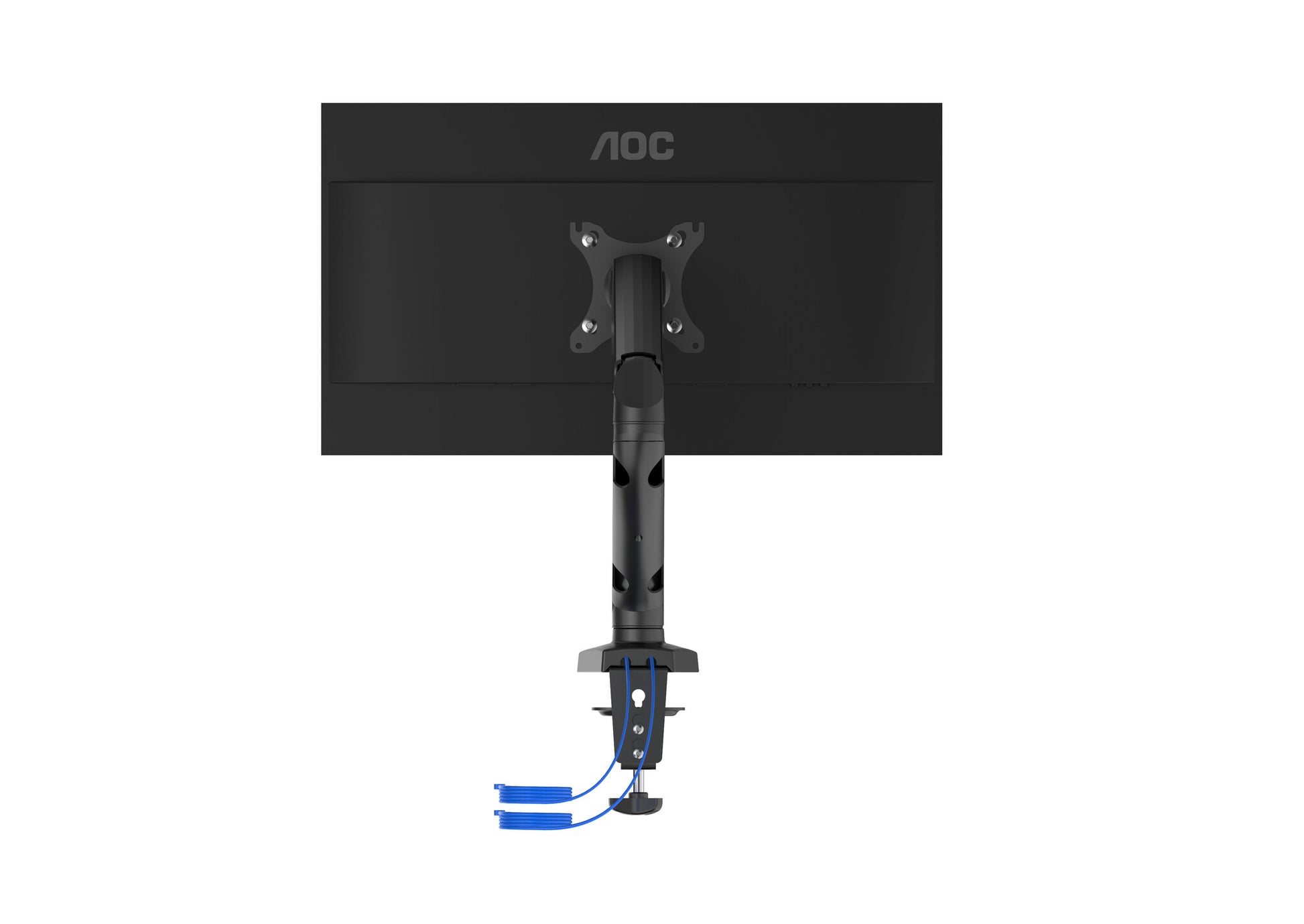

AS110DXGet your monitor in the optimum position easily with AS110's mechanical gas-spring arm with integrated USB Hub

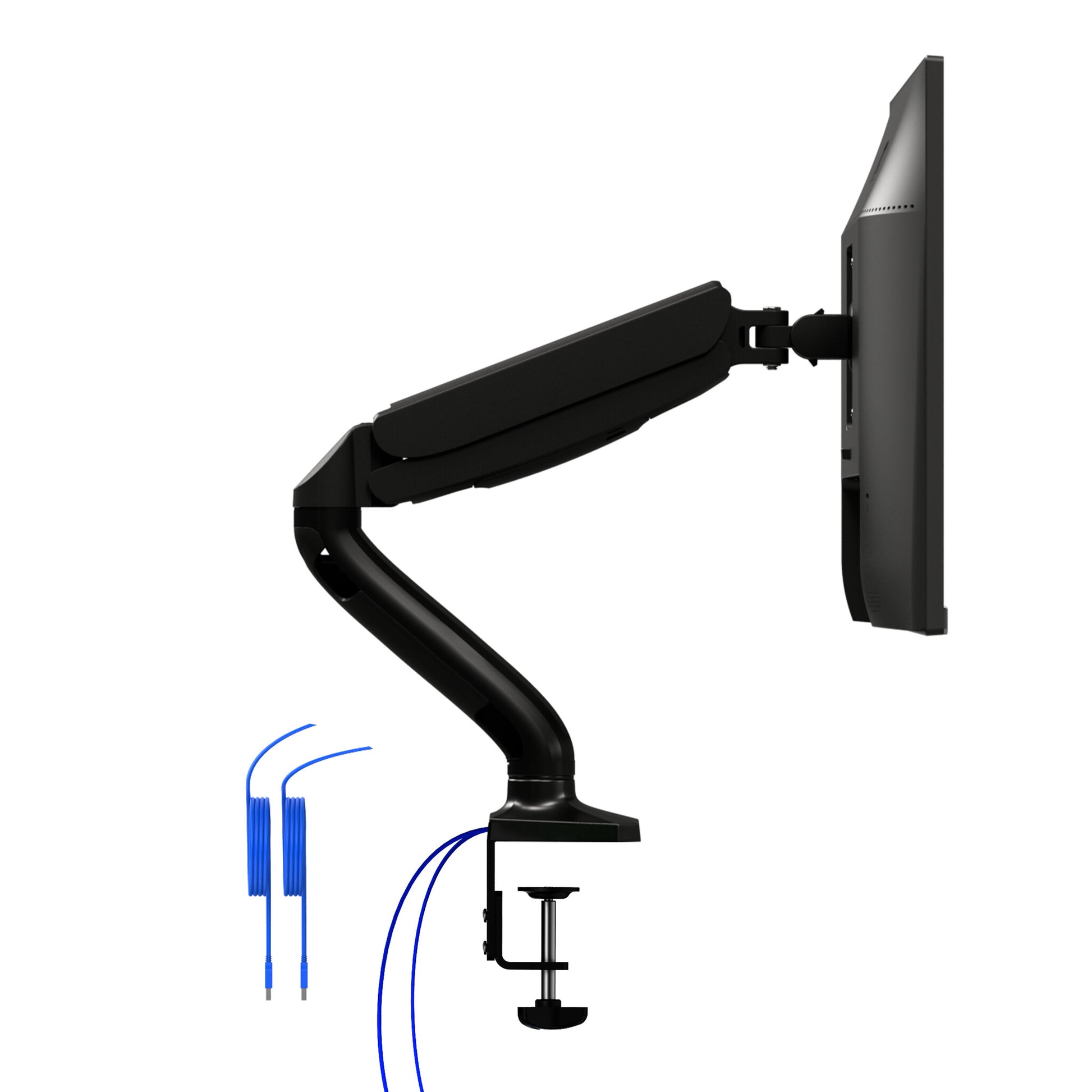

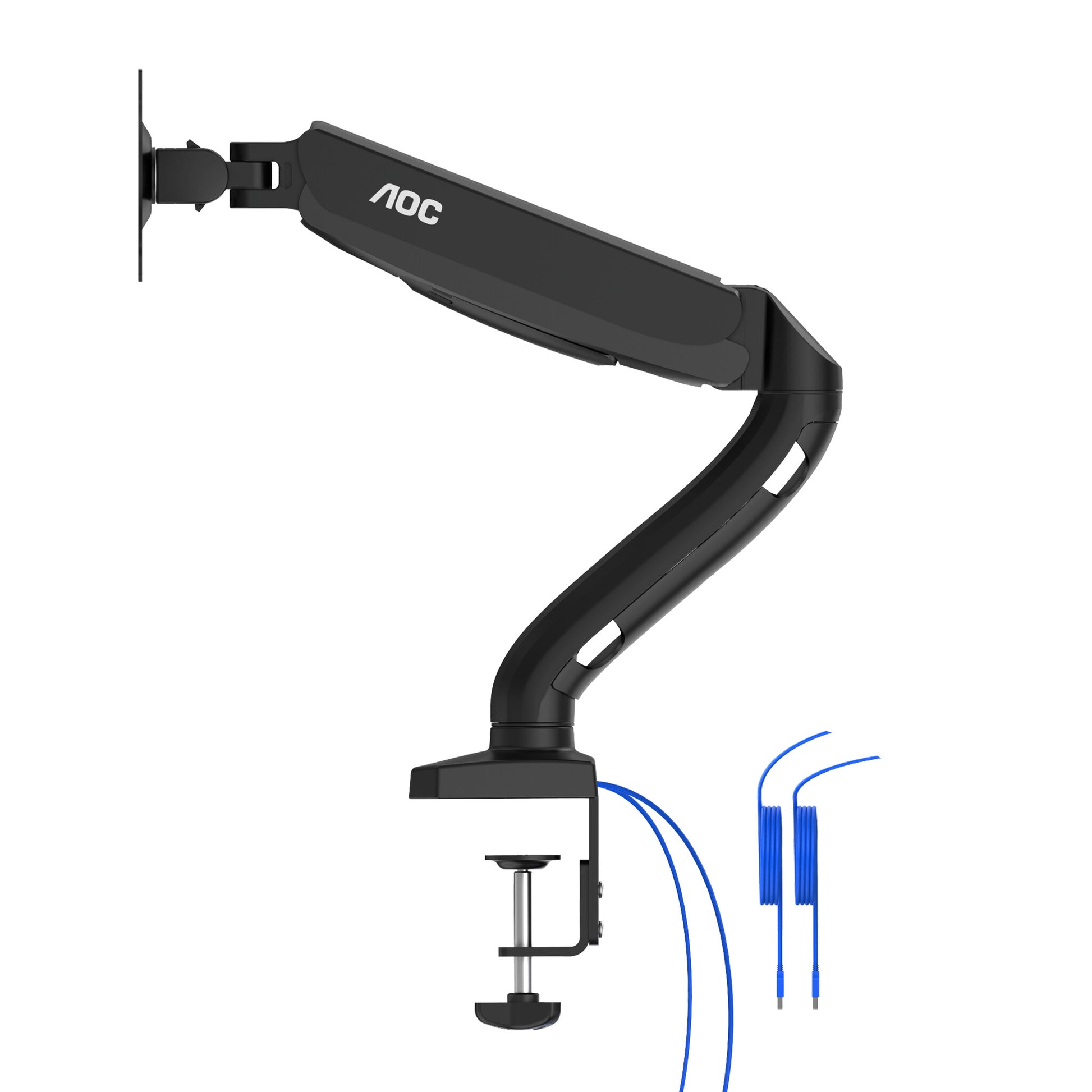

Get your monitor in the optimum position easily with AS110's mechanical gas-spring arm with integrated USB Hub AS110's sleek and sturdy, gas-spring controlled monitor arm enables wide range of ergonomics for your VESA (75 mm or 100 mm) supported monitor. Free up your desk with integrated cable management. Supports up to 32", 9 kg monitors and offers 320 mm height, 325 mm stretch, -45°/60° tilt, -90°/90° swivel and 360° pivot range for increased flexibility. Built in USB Hub provides an easy way to transmit data & charge your devices. The USB Hub is equipped with a USB 3.0 port supporting data transfer speed up to 5Gbps and a USB-C port supporting data transfer speed up to 5Gbps allowing you to transfer your favorite content & files in seconds. Use the integrated USB 3.0 male extension cords to connect your PC with the USB Hub, and boost your productivity with a clutter-free desk.
Mounting
Maximum weight capacity
9 kg
Minimum screen size
33 cm (13")
Maximum screen size
81.3 cm (32")
Mounting type
Desk
Maximum weight capacity (per display)
9 kg
Mounting
Clamp/Bolt-through
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
100 x 100,75 x 75 mm
Number of displays supported
1
Desk thickness (min)
1.5 cm
Desk thickness (max)
8 cm
Clamp mount desk thickness (max)
8 cm
Grommet mount desk thickness (max)
8 cm
Mounting hole range
7 - 87 mm
Ergonomics
Height adjustment
Yes
Height adjustment type
Gas spring
Height adjustment range
320 - 440 mm
Depth adjustment range
0 - 460 mm
Tilt angle range
-450 - 600°
Swivelling
Yes
Swivel angle range
-900 - 900°
Pivot angle
0 - 3600°
Cable management
Yes
Tilt adjustment
Yes
Rotating
Yes
Built-in USB hub
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Design
Product colour
Black
Housing material
Aluminium
Technical details
Warranty period
5 year(s)
Weight & dimensions
Weight
2.65 kg
Package width
280 mm
Package depth
410 mm
Package height
120 mm
Package weight
2.9 kg
Packaging content
Clamp included
Yes
Mounting kit
Yes
Manual
Yes
Packaging content
User Manual, Monitor Arm, Clamp mount, Grommet mount, Installation materials
