FCC Class A, CE, C-Tick, BSMI, KCC, UL, VCCL, RoHS, and WEEE Regulatory Compliance
4GB, GDDR5, 128-bit, PCIe 3.0 x16, 4 x Mini-DisplayPort, 7680 x 4320

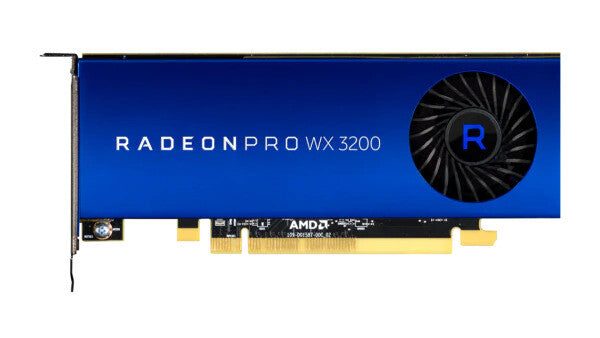

Cost-Effective & ISV-Certified Graphics Solution. The AMD Radeon™ Pro WX 3200 graphics card is the most cost-effective graphics solution under USD $200 and is ISV-certified for professional use with major design applications.
High Quality Graphics Performance for Small Form Factor Workstations. The AEC and Manufacturing industries have seen an increased demand for quality visuals in recent years. The Radeon™ Pro WX 3200 workstation graphics card is ideal for mainstream CAD engineers who require an ISV-certified graphics solution at an aggressive price point, while providing a full set of workstation features for deployments of all sizes. The Radeon™ Pro WX 3200 graphics card has a small form factor that is designed to fit into nearly all desktop workstations, supports the latest display standards with four Mini-DisplayPortTM 1.4 outputs, and offers 4GB of high speed GDDR5 memory and up to 1.66 TFLOPS of single precision compute performance.
Processor
Graphics processor family
AMD
Graphics processor
Radeon Pro WX 3200
Maximum resolution
7680 x 4320 pixels
CUDA
No
Peak floating point performance (single precision)
1660 Gflops
Peak floating point performance (double precision)
104000 Gflops
Stream processors
640
Memory
Discrete graphics card memory
4 GB
Graphics card memory type
GDDR5
Memory bus
128 bit
Memory bandwidth (max)
96 GB/s
Ports & interfaces
Interface type
PCI Express x16 3.0
DisplayPort version
1.4
Mini DisplayPorts quantity
4
Performance
DirectX version
12.0
Shader model version
5.1
OpenGL version
4.6
OpenCL version
2.0
Dual Link DVI
No
Design
Cooling type
Active
Number of fans
1 fan(s)
Form factor
Half-Height/Half-Length (HH/HL)
Number of slots
1
Product colour
Blue, Stainless steel
Certification
FCC Class A, CE, C-Tick, BSMI, KCC, UL, VCCL, WEEE
