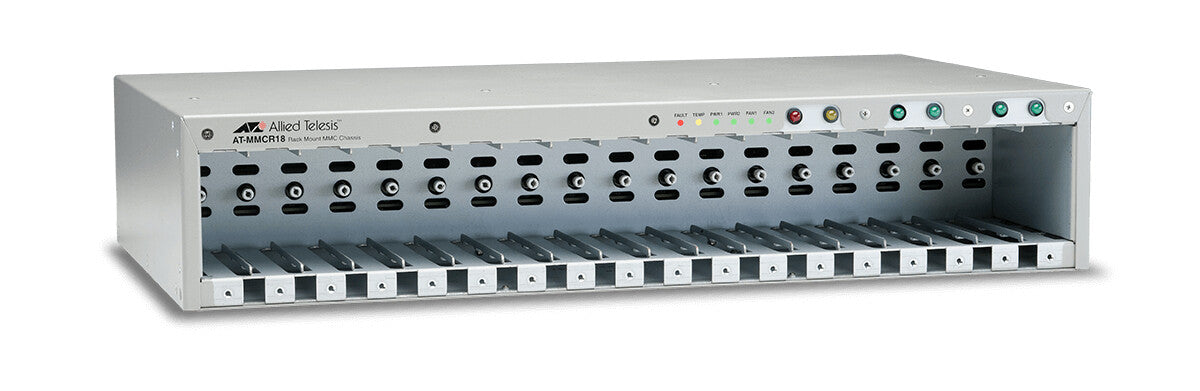

Allied Telesis MMCR18 network equipment chassis
Allied Telesis MMCR18 network equipment chassis
SKU:990-005260-60
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
Media converter flexibility
The Allied Telesis MMCR18 is a two rack unit high chassis, which enables network managers to use up to 18 MMC series media converters in a standard 19 inch rack. For redundancy, it can be powered with either one or two Power Supply Units (PSUs).
Power options
The MMCR18 Chassis can be powered with either an AC or DC power supply, eliminating the need for multiple power connections. Allied Telesis also offers an optional hot swappable PSU to eliminate network downtime. The unit saves space in the wiring closet, and minimizes the number of power connections required. Single-unit media converters can be removed from the MMCR18 and deployed individually to accommodate network modifications.
By incorporating a backplane with 18 different power entry modules integrated with the printed circuit board, power is equally distributed among all media converters—whether
using one or two PSUs.
Rack-mount design
Designed with a simple mounting system, each individual media converter is plugged into the back plane and secured with the included mounting rail.The rack-mount chassis includes
six status LEDs on the front panel indicating power, temperature, fan and fault status.
| Technical details | |
|---|---|
| Rack mounting | Yes |
| Material | Metal |
| LED indicators | Yes |
| Number of slots | 18 |
| Certificates | |
|---|---|
| Certification | FCC Class A, IC Class A |
| Safety | UL, CSA, TUV, IEC 825-1, CE compliant |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 80% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 80% |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.3 kg |
| Height | 87 mm |
| Depth | 255 mm |
| Width | 440 mm |
