Allied Telesis

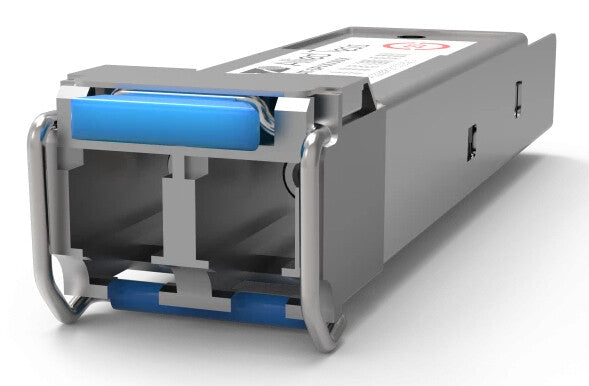

Allied Telesis B-AT-SPFX/2-90 network transceiver module Fiber optic 100 Mbit/s SFP

Allied Telesis B-AT-SPFX/2-90 network transceiver module Fiber optic 100 Mbit/s SFP

Regular price £84.61 GBP
Regular price Sale price £84.61 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SKU:AT-SPFX/2-90

404 in stock

  • Compact size
  • Flexible architecture
  • Plug and play for ease of use
  • Self-locking mechanism
  • MSA compliant
LC Duplex, 100Mbps, MMF, 2 km, 1310 nm, TAA, 0 - 70°C

SP100Mbps Series Small Form-Factor Pluggable Modules
The Allied Telesis 100Mbps SP Series offers the latest industry standard in flexible, full-duplex, Fast Ethernet connectivity. These hot-swappable interfaces simply plug into the SFP slot on all SFP-compatible products. Configuration can be optimized to meet a wide variety of distance and service requirements.

Options
Allied Telesis SP 100Mbps Series Small Form-Factor Pluggables (SFPs) offers short-haul and long-haul. This flexibility allows network managers to easily extend network distance and bandwidth.

Compatibility
SP 100Mbps Series SFPs are MultiSourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP 100Mbps Series to be used with other MSA-compliant platforms that support SFP uplink connections.

Performance
SFP transceiver type Fiber optic
Maximum data transfer rate 100 Mbit/s
Interface type SFP
Single-mode fiber (SMF) supported No
Multi-mode fiber (MMF) supported Yes
Fiber optic connector LC
Maximum transfer distance 2000 m
Tx wavelength (max) 1310 nm
Rx wavelength (max) 1310 nm
Link budget 11 dB
Ethernet interface type Fast Ethernet
Fiber ethernet cabling technology 100BASE
Duplex system Full
Features
Product colour Metallic
Form factor SFP
Plug and Play Yes
Hot-swap Yes
Easy to install Yes
Operational conditions
Minimum operating temperature 0 °C
Maximum operating temperature 70 °C
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 85%
Storage relative humidity (H-H) 0 - 80%
Technical details
Compliance certificates Trade Agreements Act (TAA)
Logistics data
Quantity per pack 1 pc(s)
Other features
Transmit power range -20 - -14 dBmW
RX sensitivity -31 dB
