Locking power supply jack to prevent accidental power disconnects
Available in Trade Agreement Act (TAA) models

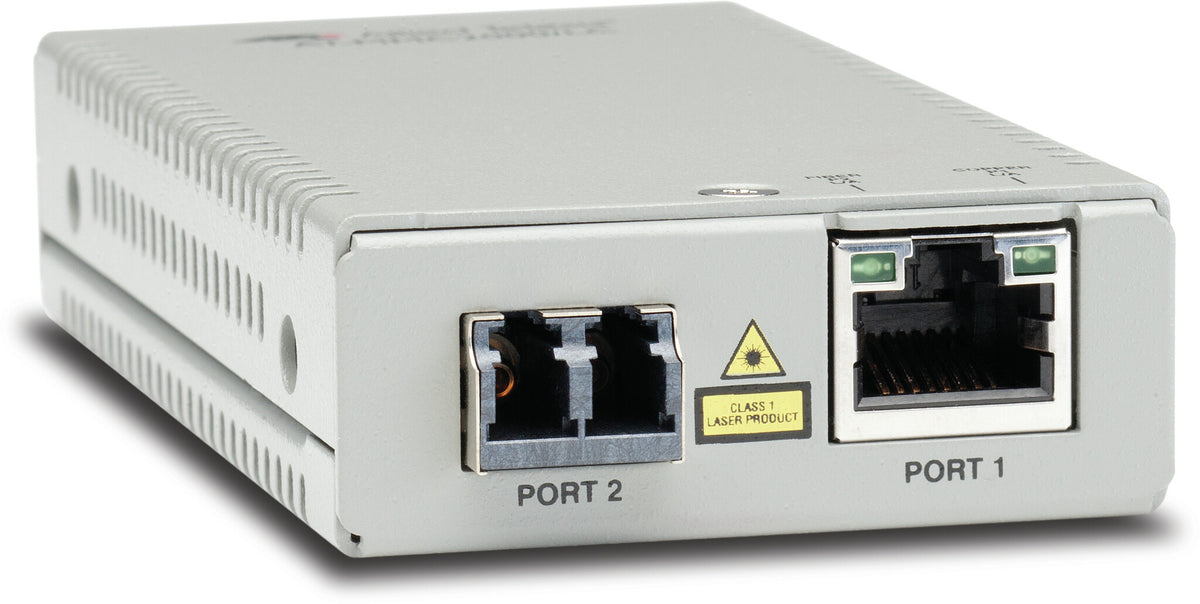

TAA (Federal) 10/100TX to 100FX/LC MM Media & Rate Converter, Multi-region PSU
This standalone mini media and rate converter features 10/100TX to 100FX conversion with a multi-mode LC fiber connector and supports up to 2 km. It is compatible with the MMCR18 rack-mount chassis.
Copper to Fiber Mini Media and Rate Converters Overview The Allied Telesis MMC Series of mini media converters leverages its smaller size to not only help the environment with a small carbon footprint, but also to save space in its working environment. Despite its compact size, the MMC Series delivers all the power and functionality of standard size media converters.
Extend Networks The MMC Series are available in 100Mbps or 1000Mbps models. Depending on the model chosen, the fiber-optic port has options for fixed SC, ST, LC or SFP connectors capable of multi-mode or single-mode fiber connectivity. The twisted-pair copper port has an RJ-45 connector supporting either 100Mbps or 1000Mbps, with a maximum operating distance of 100 meters (328 feet).
VLAN Support Many new backbone switch products now support the industry-standard IEEE 802.1Q specification for Virtual LANs (VLANs) that send extra-long data packets on the network. The MMC Series are fully compatible with these long packets, enabling them to be used in modern networks. Media converters not supporting this feature discard these extra long packets, making them unsuitable for modern networks.
Small and Flexible The smaller size and external power supply of the MMC Series allows them to be used almost anywhere.
Smart MissingLink (SML) The Smart MissingLink™ (SML) feature monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Smart Link Restoration Smart Link restoration allows the devices, in cases of power failure, link loss or other interrupted service, to automatically restore the link without the need to restart/reset them.
Power Saving The MMC Series continues the Allied Telesis commitment to the environment with over 50% power savings. With just 1.7W of power usage, the MMC Series media converters are some of the most efficient in the market today.
Link Test The link test is a fast and easy way for you to test the connections between the media converter ports and the connected end nodes. If a network problem occurs, you can perform a link test to determine which port is experiencing a problem, and focus your troubleshooting efforts on the right cable or end node.
Network
Duplex system
Full
Store-and-forward
Yes
Auto MDI/MDI-X
Yes
VLAN support
Yes
Jumbo frames support
Yes
Fiber ethernet cabling technology
1000BASE‑SX
Ethernet LAN data rates
10,100 Mbit/s
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.1Q
Converter output interface
100Base-FX
Converter input interface
100Base-TX
Maximum data transfer rate
100 Mbit/s
Ports & interfaces
Fiber optic connector
LC
Fiber ports quantity
2
Ethernet LAN (RJ-45) ports
1
Connectivity technology
Wired
Performance
Rx power (min)
-32 dBmW
Tx power (max)
-14 dBmW
Tx power (min)
-20 dBmW
Wavelength
1310 nm
Maximum transfer distance
2000 m
Design
Certification
CE, EN55024, EN61000-3-2, EN61000-3-3
Safety
FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
