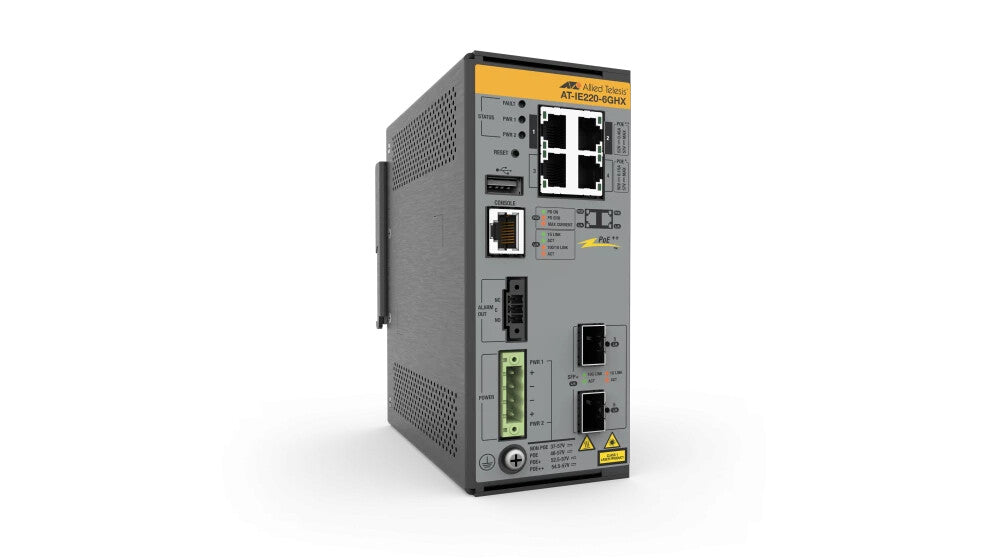

Allied Telesis AT-IE220-6GHX-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Allied Telesis AT-IE220-6GHX-80 Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

£699.59 GBP
£699.59 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

990-007874-80

Low stock: 2 left

  • Managed L2 Web-based management SNMPv1/v2c/v3
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 4
  • MAC address table: 16000 entries Switching capacity: 48 Gbit/s
  • Access Control List (ACL)
  • DC/PoE Power over Ethernet (PoE)
4x 10/100/1000T, 2x 1G/10G SFP+, Industrial Ethernet, Layer 2+ Switch, PoE++ Support, DC

Industrial Ethernet Layer 2+ PoE++ Switches with 10G uplinks
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.

Management features
System event log Yes
Configuring Location Settings (CLI) Yes
ARP inspection Yes
Traffic classification Yes
Traffic shaping Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2
Switch type Managed
Ports & interfaces
USB 2.0 ports quantity 1
Combo SFP ports quantity 2
Gigabit Ethernet (copper) ports quantity 6
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 4
Network
Number of VLANs 4094
VLAN support Yes
Flow control support Yes
Link aggregation Yes
Full duplex Yes
10G support No
Networking standards IEEE 802.3ac, IEEE 802.3bt, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1v, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x
Data transmission
Packet buffer memory 2 MB
Jumbo frames support Yes
Throughput 37.7 Mpps
Switching capacity 48 Gbit/s
MAC address table 16000 entries
Security
BPDU filtering/protection Yes
Authentication MAC-based authentication, Port-based authentication
Security algorithms 802.1x RADIUS
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP client, DHCP snooping
Multicast features
Multicast support Yes
Protocols
Management protocols SNMPv1/v2c/v3
Design
Wall mountable Yes
DIN rail mounting Yes
International Protection (IP) code IP30
Housing material Aluminium, Metal
Product colour Grey
Rack mounting No
Performance
Export Control Classification Number (ECCN) 5A992C
Flash memory 128 MB
Internal memory 512 MB
Power
Power consumption (max) 17.4 W
Input voltage 37 - 57 V
Power source DC/PoE
Power over Ethernet (PoE)
Power over Ethernet 4PPoE (PoE++) ports quantity 2
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) Yes
Weight & dimensions
Height 155 mm
Depth 137 mm
Width 65 mm
Logistics data
Harmonized System (HS) code 8517.62.0050
