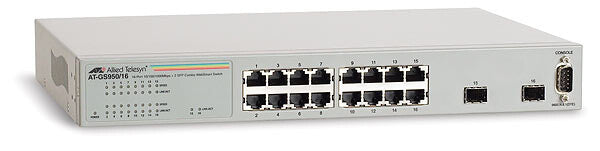

Allied Telesis AT-GS950/16 Managed
Allied Telesis AT-GS950/16 Managed
SKU:AT-GS950/16-30
Low stock: 1 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Managed Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 16
- MAC address table: 8000 entries
The WebSmart AT-GS950/16 features a Web-based interface that allows you to set up 802.1Q VLANs to segregate traffic, QoS to prioritize mission-critical data such as voice or video packets, and link aggregation to create traffic pipelines. The AT-GS950/16 also provides network monitoring tools such as port mirroring and basic port statistics. Remote product management enables simple monitoring from anywhere you have connectivity. This WebSmart switch provides managed features for simple QoS applications, 16 10/100/1000T ports and two combo SFP ports for Gigabit connections.
| Management features | |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Combo SFP ports quantity | 2 |
| SFP/SFP+ slots quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1W, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.5 MB |
| Design | |
|---|---|
| Stackable | No |
| Certification | UL 1950FCC/EN55022 Class AVCCI Class AC-TickEN60950 (TUV)EN55024CE |
| Performance | |
|---|---|
| Internal memory | 8 MB |
| Flash memory | 2 MB |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 2.38 kg |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 352 x 256 x 43.2 mm |
| Packet transfer speed | 1488000 pps |
| Networking features | Gigabit Ethernet |
| Power requirements | 100-240V AC, 50/60Hz |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
