Allied Telesis

Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s

Allied Telesis 2914SX/LC Internal Fiber 1000 Mbit/s

£200.94 GBP
£200.94 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AT-2914SX/LC-901

16 in stock

  • Jumbo frames up to 9.6KB
  • Smart Load Balancing (SLB) and failover
  • Link aggregation (IEEE 802.3ad)
  • Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static
  • UEFI network boot
  • Low-profile and standard height brackets included
LC, PCI-E, 1000 Mbit/s, 1.5 W, 88 x 69 mm, 68 g

PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support

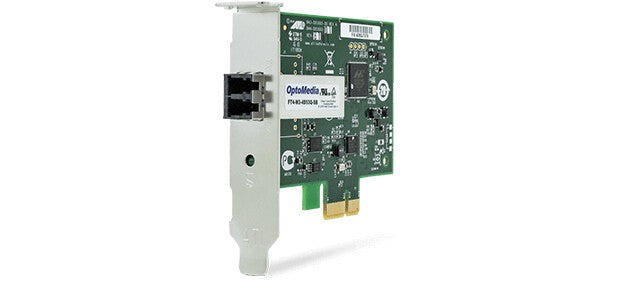

The Allied Telesis 2914SX/LC is a gigabit PCIe x1 network adapter with a fixed LC connector. It supports Wake-on-LAN without the use of an external power supply.

Ports & interfaces
Fiber ports quantity 2
Fiber optic connector LC
Interface Fiber
Host interface PCI Express
Connectivity technology Wired
Network
Load balancing system Yes
Quality of Service (QoS) support Yes
Jumbo frames support Yes
Auto-negotiation Yes
Jumbo frames 9600
Wake-on-LAN ready Yes
Security algorithms SNMP
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Maximum data transfer rate 1000 Mbit/s
Design
Certification UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
LED indicators Yes
Internal Yes
Power
Power consumption (typical) 1.5 W
System requirements
Server operating systems supported Windows Server 2016, Windows Server 2019
Linux operating systems supported Yes
Windows operating systems supported Windows 10, Windows 7
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Sustainability
Sustainability certificates RoHS
Weight & dimensions
Weight 68 g
Height 69 mm
Width 88 mm
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Other features
Flow control support Yes
