Allied Telesis

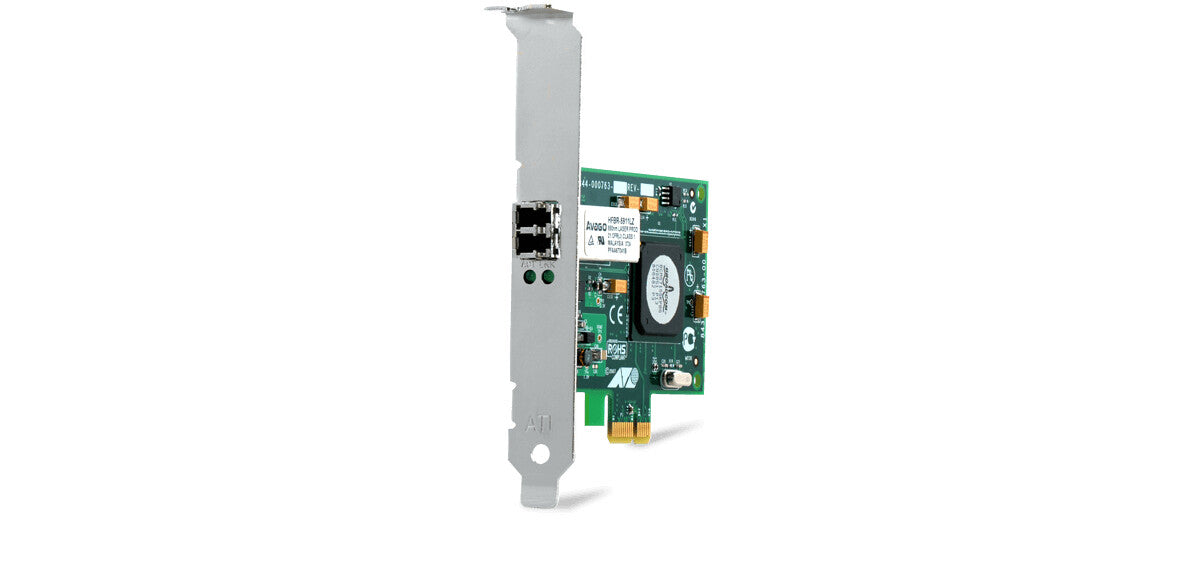

Allied Telesis 2914SP Internal Fiber 1000 Mbit/s

Allied Telesis 2914SP Internal Fiber 1000 Mbit/s

£189.31 GBP
£189.31 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

AT-2914SP-901

Low stock: 10 left

  • Jumbo frames up to 9.6KB
  • Smart Load Balancing (SLB) and failover
  • Link aggregation (IEEE 802.3ad)
  • Generic trunking (FEC/GEC) / IEEE 802.3ad-draft static
  • UEFI network boot
  • Low-profile and standard height brackets included
PCI Express Gigabit Network Adapters with Wake-on-LAN (WoL) Support, 1x 100/1000 Mbit/s SFP

The Allied Telesis 2914SP is a gigabit PCIe x1 network adapter with an open SFP port. This port supports both Fast Ethernet and Gigabit SFP’s. This adapter supports Wake-on-LAN without the use of an external power supply.

Ports & interfaces
Fiber ports quantity 1
Fiber optic connector SFP
Interface Fiber
Host interface PCI Express
Connectivity technology Wired
Network
Load balancing system Yes
Quality of Service (QoS) support Yes
Jumbo frames support Yes
Auto-negotiation Yes
Jumbo frames 9600
Wake-on-LAN ready Yes
Ethernet LAN data rates 100,1000 Mbit/s
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Maximum data transfer rate 1000 Mbit/s
Design
Certification UL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI
LED indicators Yes
Internal Yes
Power
Output voltage 3.3 V
System requirements
Server operating systems supported Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Linux operating systems supported Yes
Windows operating systems supported Windows 10, Windows 7, Windows 8, Windows Vista
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 68 g
Height 69 mm
Width 88 mm
Packaging data
Low-profile bracket Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
Other features
Quantity per pack 1 pc(s)
Priority queuing supported Yes
Flow control support Yes
