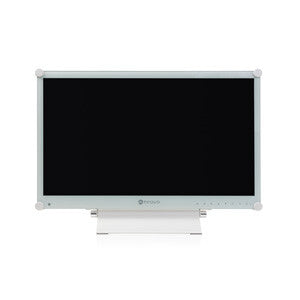

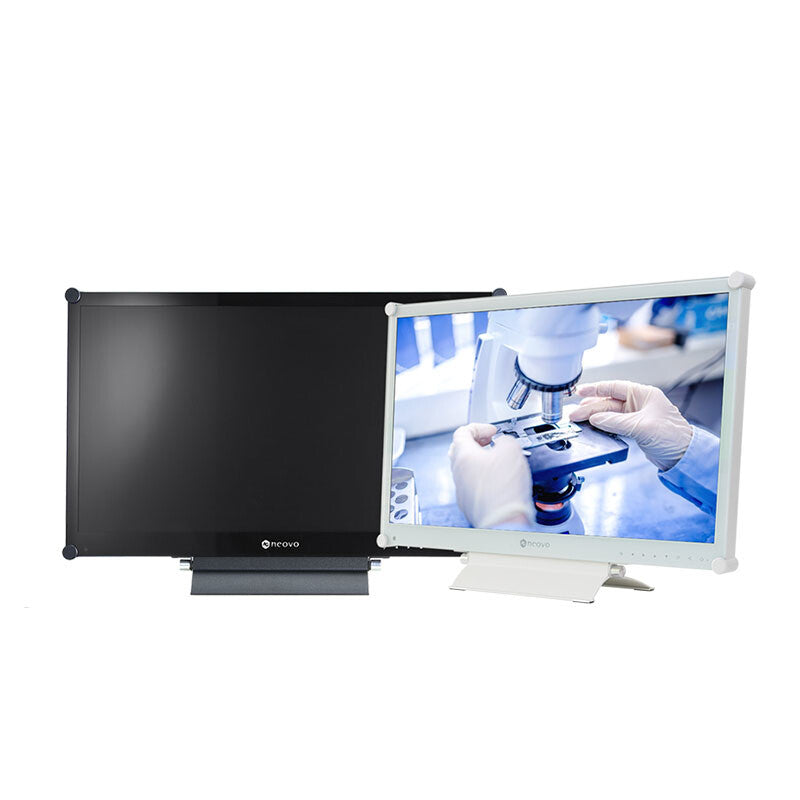

The X-22E semi-industrial monitor with the metal casing is designed for reliable 24/7 operation in demanding environments. With selectable gamma curves and versatile connectivity, this monitor provides an optimal visual experience with excellent colour, brightness, and contrast ratio. NeoV Optical Glass screen and corrosion-resistant metal casing shield it from scratches and chemical exposure which make it ideal for public, laboratory, and light industrial applications.
The NeoV Optical Glass attached to the X-22E screen is scratch-resistant with anti-acid and anti-alkali coating treatment and tough enough to withstand repeated cleaning.
DURABLE IN LIGHT INDUSTRIAL ENVIRONMENT Its corrosion-resistant metal casing provides enhanced heat dissipation, making the X-22E semi-industrial monitor durable for demanding environments.

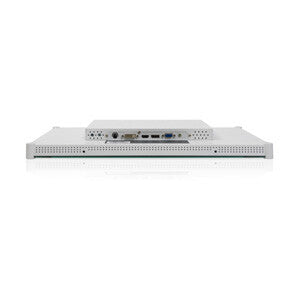

VERSATILITY, PRODUCTIVITY AND COMPATIBILITY The X-22E allows viewing critical data and engaging multiple video sources with versatile connectivity, including DisplayPort, HDMI, DVI, and VGA. The PIP/PBP option allows for increased productivity and efficiency. Selectable aspect ratio and zoom functions provide compatibility with different video sources.
PATENTED ANTI-BURN-IN TECHNOLOGY AG Neovo’s patented Anti-Burn-in technology tackles the LCD monitor burn-in effect, otherwise known as a ghost image on the screen. Burn-in images result in the polarisation of the liquid crystal material contained within the TFT LCD panel. The Anti-Burn-in technology prolongs the lifetime of AG Neovo monitors featuring this technology to secure user’s investment.
CONSISTENT DESIGN WITH A LONGER LIFETIME Replacing AG Neovo semi-industrial monitors never requires users to change their whole infrastructure. This is because AG Neovo offers a consistent form factor and long product life cycles. Even as technology advances, no change is made to exterior dimensions or design.
ENHANCED GAMMA CORRECTION Selectable gamma curves visually optimise different kinds of images. The AG Neovo specialised image settings enhance colour, brightness, sharpness and contrast ratio, allowing the X-22E semi-industrial monitor with a metal casing to improve the light, shadows and colour balance of videos.
Display
NTSC coverage (typical)
72%
Colour gamut standard
NTSC
Surface hardness
9H
Digital vertical frequency
50 - 75 Hz
Digital horizontal frequency
24 - 83 kHz
Pixel pitch
0.2482 x 0.2482 mm
Display number of colours
16.78 million colours
Viewing angle, vertical
160°
Viewing angle, horizontal
170°
Contrast ratio (dynamic)
2000000:1
Contrast ratio (typical)
1000:1
Supported video modes
1080p
Supported graphics resolutions
1920 x 1080 (HD 1080)
Screen shape
Flat
Response time
3 ms
Display brightness (typical)
250 cd/m²
Backlight type
LED
Panel type
TN
HD type
Full HD
Touchscreen
No
Display technology
LED
Native aspect ratio
16:9
Display resolution
1920 x 1080 pixels
Display diagonal
54.6 cm (21.5")
Performance
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
RMS rated power
4 W
Number of speakers
2
Built-in camera
No
Built-in speaker(s)
Yes
Design
Housing material
Metal
Product colour
White
Market positioning
Industrial
Ports & interfaces
Audio input
Yes
DisplayPort version
1.2a
DisplayPorts quantity
1
HDMI version
1.4
HDMI ports quantity
1
HDMI
Yes
DVI-D ports quantity
1
DVI port
Yes
VGA (D-Sub) ports quantity
1
Built-in USB hub
No
Ergonomics
Picture-in-Picture
Yes
Tilt angle range
0 - 15°
Tilt adjustment
Yes
Height adjustment
No
Cable lock slot type
Kensington
Cable lock slot
Yes
Panel mounting interface
75 x 75,100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power consumption (off)
0.3 W
Power consumption (standby)
0.3 W
Power consumption (typical)
18 W
Energy consumption (SDR) per 1000 hours
15 kWh
Energy efficiency class (SDR)
E
Operational conditions
Storage relative humidity (H-H)
5 - 95%
Operating relative humidity (H-H)
10 - 90%
Storage temperature (T-T)
-20 - 60 °C
Operating temperature (T-T)
0 - 40 °C
Packaging content
Quick start guide
Yes
Cables included
AC, Audio (3.5mm), VGA
Stand included
Yes
Weight & dimensions
Weight (without stand)
6.1 kg
Height (without stand)
324.3 mm
Depth (without stand)
56.2 mm
Width (without stand)
513.2 mm
Weight (with stand)
6.7 kg
Height (with stand)
368.5 mm
Depth (with stand)
155 mm
Width (with stand)
513.2 mm
Packaging data
Package type
Box
Package height
477 mm
Package depth
204 mm
Package width
614 mm
Sustainability
European Product Registry for Energy Labelling (EPREL) code
444584
Logistics data
Harmonized System (HS) code
85285210
Technical details
Compliance certificates
CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
