AddOn Networks

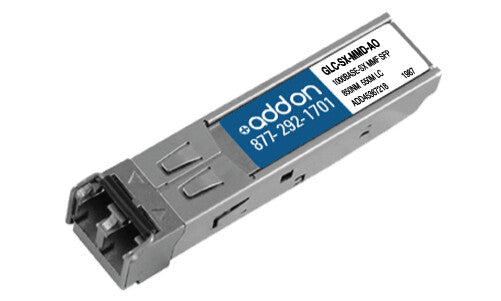

AddOn Networks GLC-SX-MMD-AO network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
AddOn Networks GLC-SX-MMD-AO network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
Couldn't load pickup availability
SKU:GLC-SX-MMD-AO
55 in stock
AddOn's GLC-SX-MMD-AO is a CISCO compatible SFP transceiver that operates at 850nm over Multi-Mode Fiber, with a maximum reach of 550m connected via a LC connector built to meet or exceed the OEM's specifications, and comply with MSA (Multi-Source Agreement) standards. All products are 100% functionally tested, and are guaranteed compatible.
AddOn transceivers (GBIC, SFP, SFP+, X2, XFP and XENPAK) are 100% compliant for all networking product lines, and are factory loaded with OEM specific configuration data required for networking compliance. These transceivers initialize and perform identically to the OEM transceivers and can be mixed and deployed with other OEM or 3rd party transceivers, for seamless network performance.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Features | |
|---|---|
| Compatible products | CISCO |
| Certification | UL, cUL FCC Part 15 Class B |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Width | 13.7 mm |
| Depth | 56.5 mm |
| Height | 18 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
