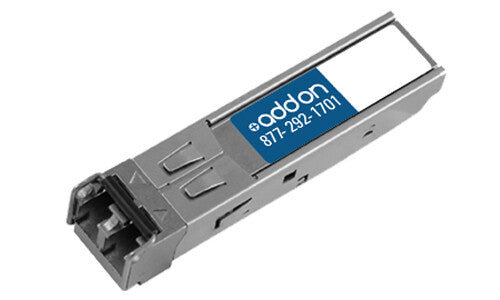

AddOn Networks 10GBASE-SR SFP+ network transceiver module Fiber optic 10000 Mbit/s SFP+
AddOn Networks 10GBASE-SR SFP+ network transceiver module Fiber optic 10000 Mbit/s SFP+
Couldn't load pickup availability
SKU:PAN-SFP-PLUS-SR-AO
Low stock: 7 left
Add-On's Ten Gigabit Small Form Factor Pluggable (SFP+) transceivers are designed to exceed OEM system requirements. All products are guaranteed 100% compatible and will not void OEM Service/support programs. Our SFP Transceivers utilize industry standard bi-directional serial optical data communication protocols such as Gigabit Ethernet or Fiber Channel reaching speeds up to 8Gbps.
All our Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds
- 100% OEM Compatible
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant
| Performance | |
|---|---|
| Cabling technology | 10GBASE-SR |
| Networking standards | IEEE 802.3z |
| SFP transceiver standard | SR |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Multi-mode fiber (MMF) supported | Yes |
| Interface type | SFP+ |
| Maximum data transfer rate | 10000 Mbit/s |
| SFP transceiver type | Fiber optic |
| Features | |
|---|---|
| Certification | MSA |
| Hot-Plug support | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 85% |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight & dimensions | |
|---|---|
| Height | 8.5 mm |
| Depth | 56.5 mm |
| Width | 13.4 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability certificates | RoHS |
