ADDER

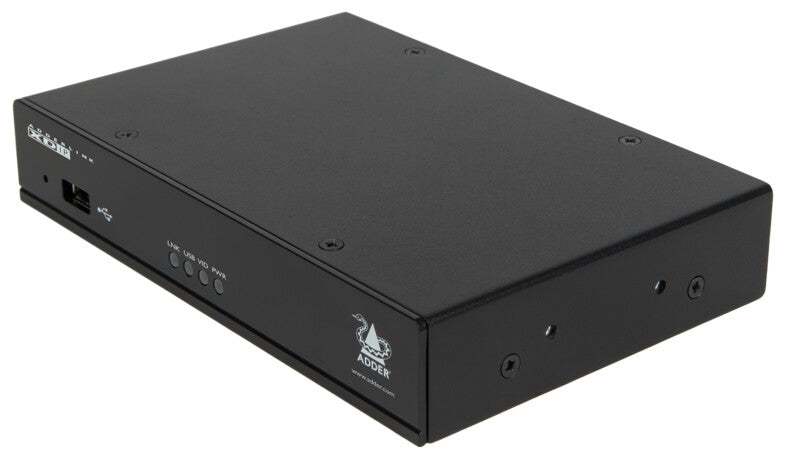

ADDER XDIP KVM extender Transmitter & receiver
ADDER XDIP KVM extender Transmitter & receiver
SKU:XDIP-EURO
Low stock: 4 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Powerful KVM extender with KVM matrix functionality
- Configurable as a point to point extender or small matrix solution
- A single unit can be programmed as transmitter or receiver
- Remote control via RESTful API or HTTPS web browser
- Support for Power over Ethernet (PoE)
- Local USB and video feed through ports
The ADDERLink XDIP is designed to improve IT scalability for small to medium businesses. Utilizing a standard 1Gb/s IP network, the XDIP enables users to extend and manage critical PCs with ultra-low latency and HD video. An intuitive API delivers remote control of the matrix and allows the XDIP to be integrated into larger systems, controlled by third party software.
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Supported resolutions | The system supports video resolutions to a maximumof 1920 x 1200 @ 60Hz |
| Product colour | Black |
| Material | Metal |
| USB 2.0 ports quantity | 4 |
| Certification | CE, FCC |
| Transmitter | |
|---|---|
| Transmitter video port type | HDMI |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
|---|---|
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Transmitter width | 16.9 cm |
| Transmitter depth | 12 cm |
| Transmitter height | 3.1 cm |
| Transmitter weight | 600 g |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 1 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Packaging content | |
|---|---|
| Cables included | Audio (3.5mm), HDMI, USB Type-A to USB Type-B |
| Quick installation guide | Yes |
| Packaging data | |
|---|---|
| Package width | 248 mm |
| Package depth | 290 mm |
| Package height | 55 mm |
