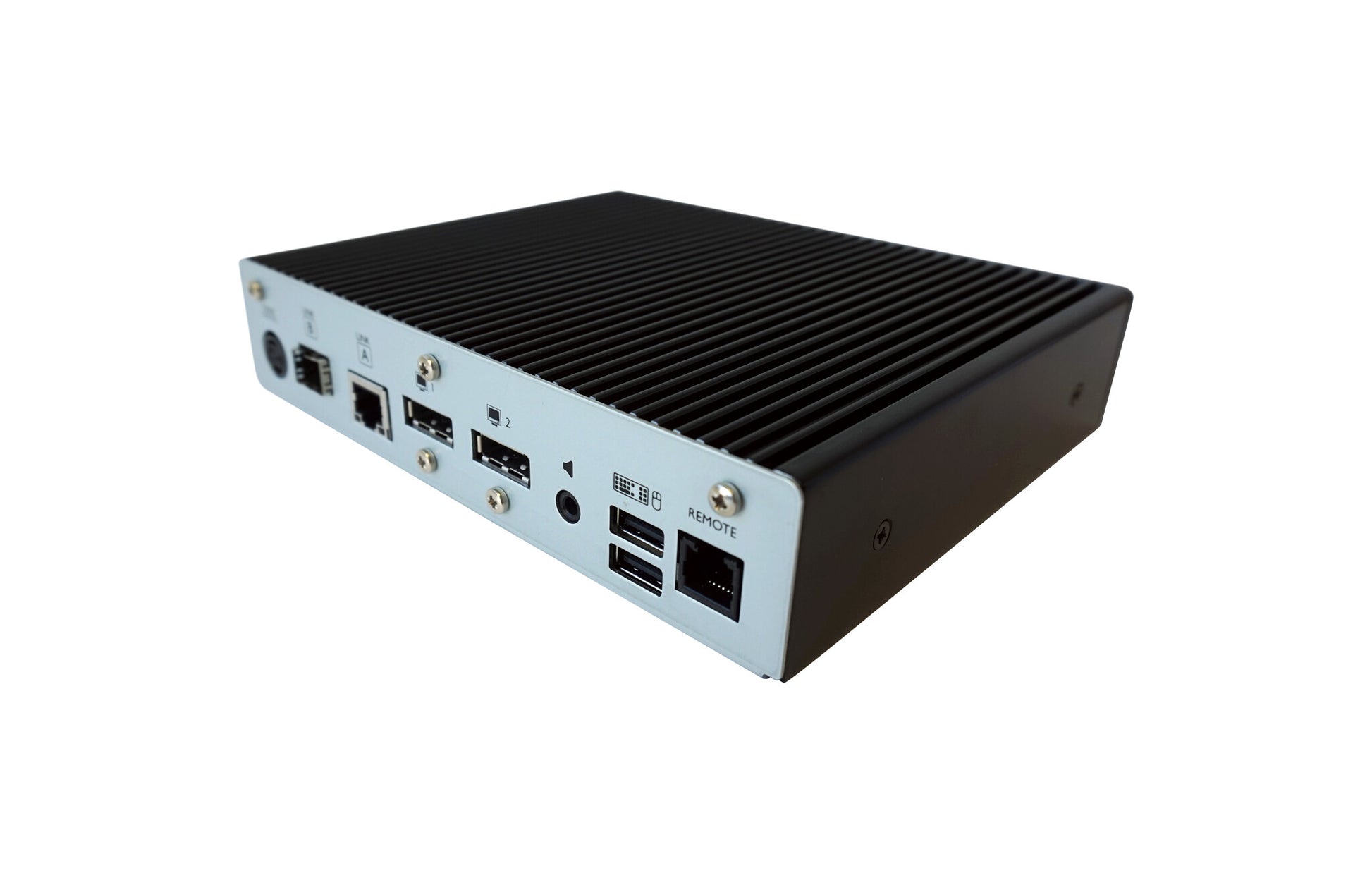

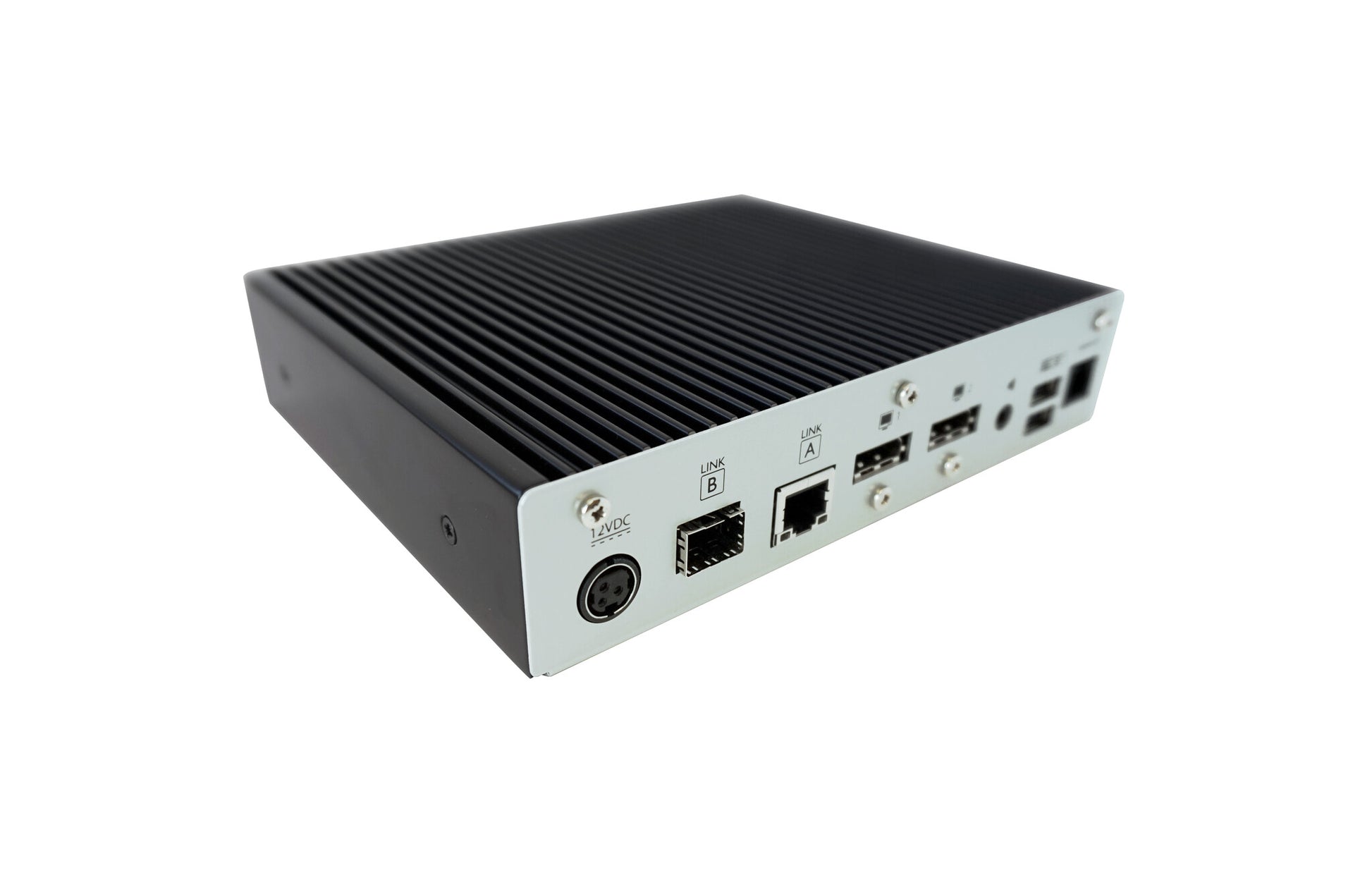

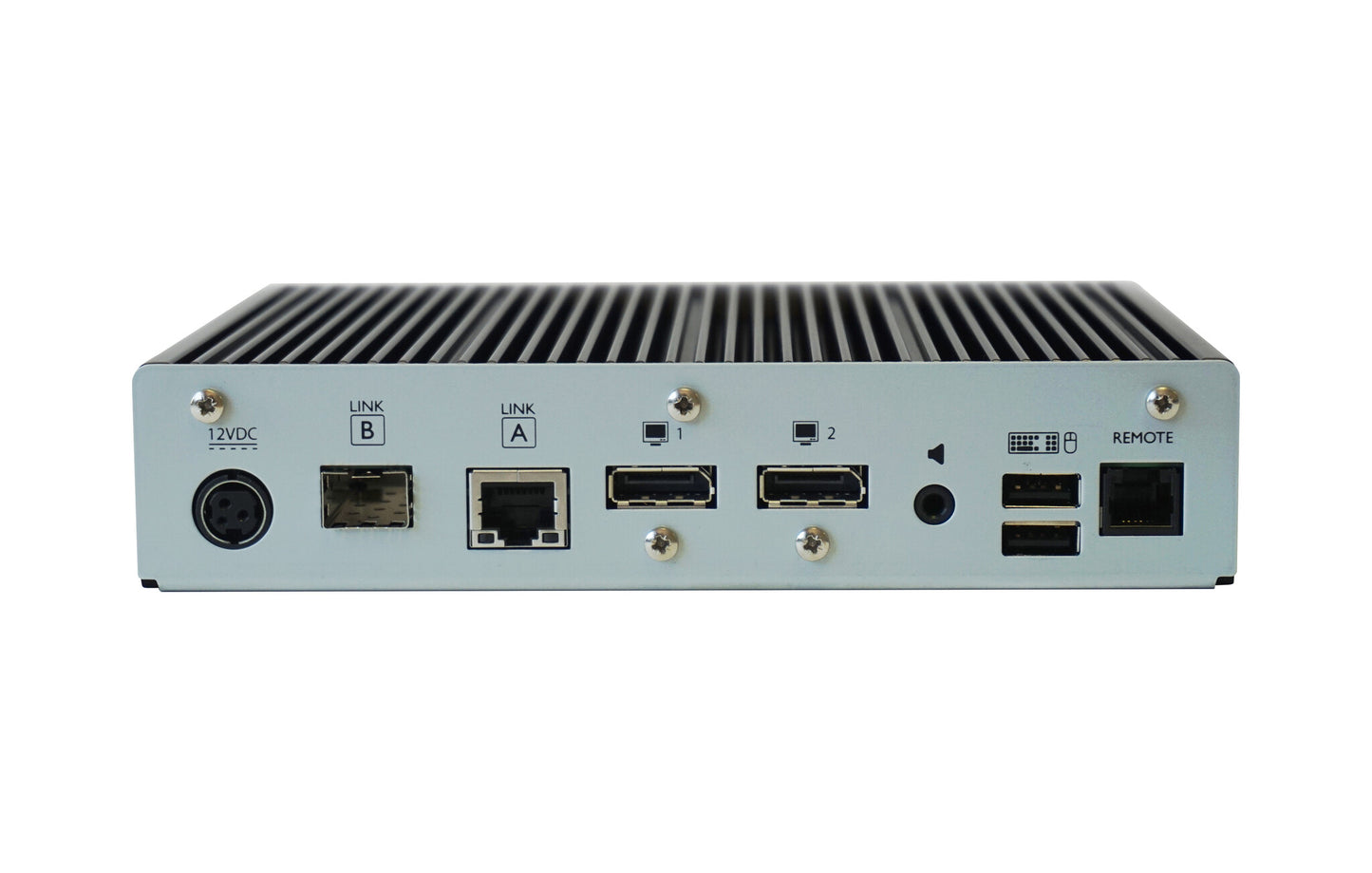

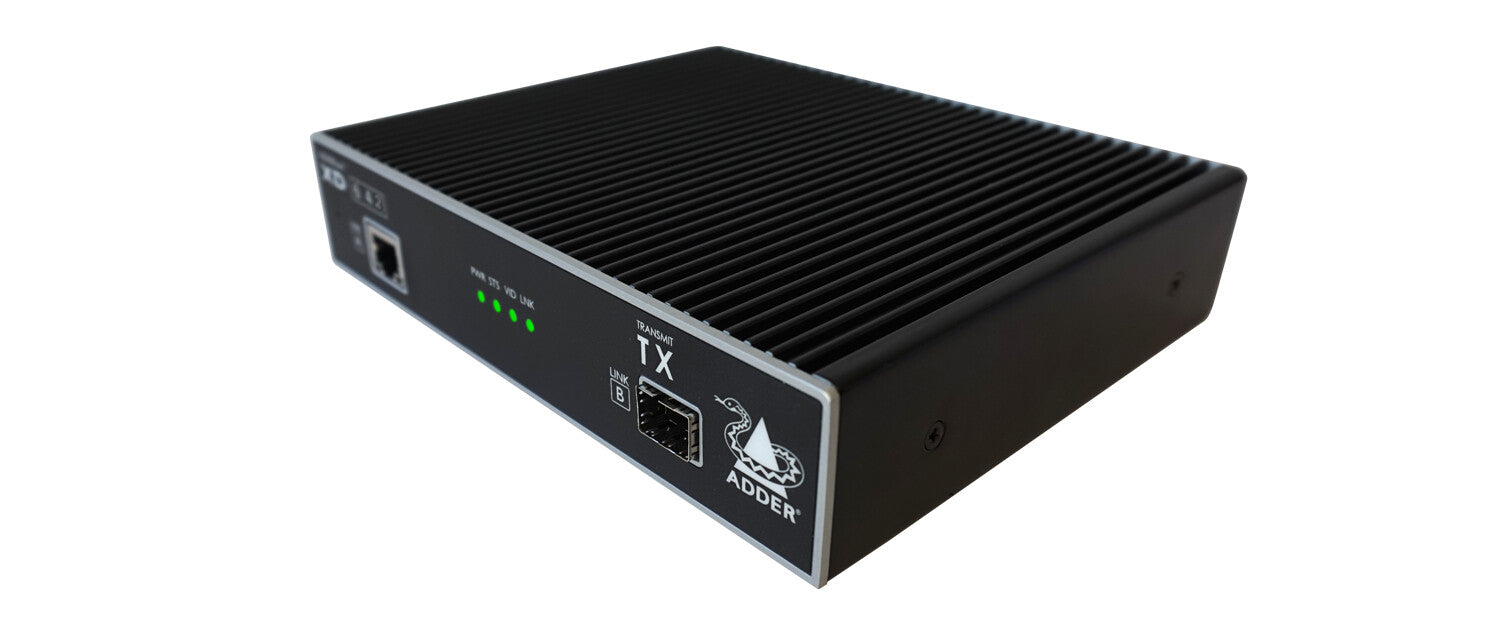

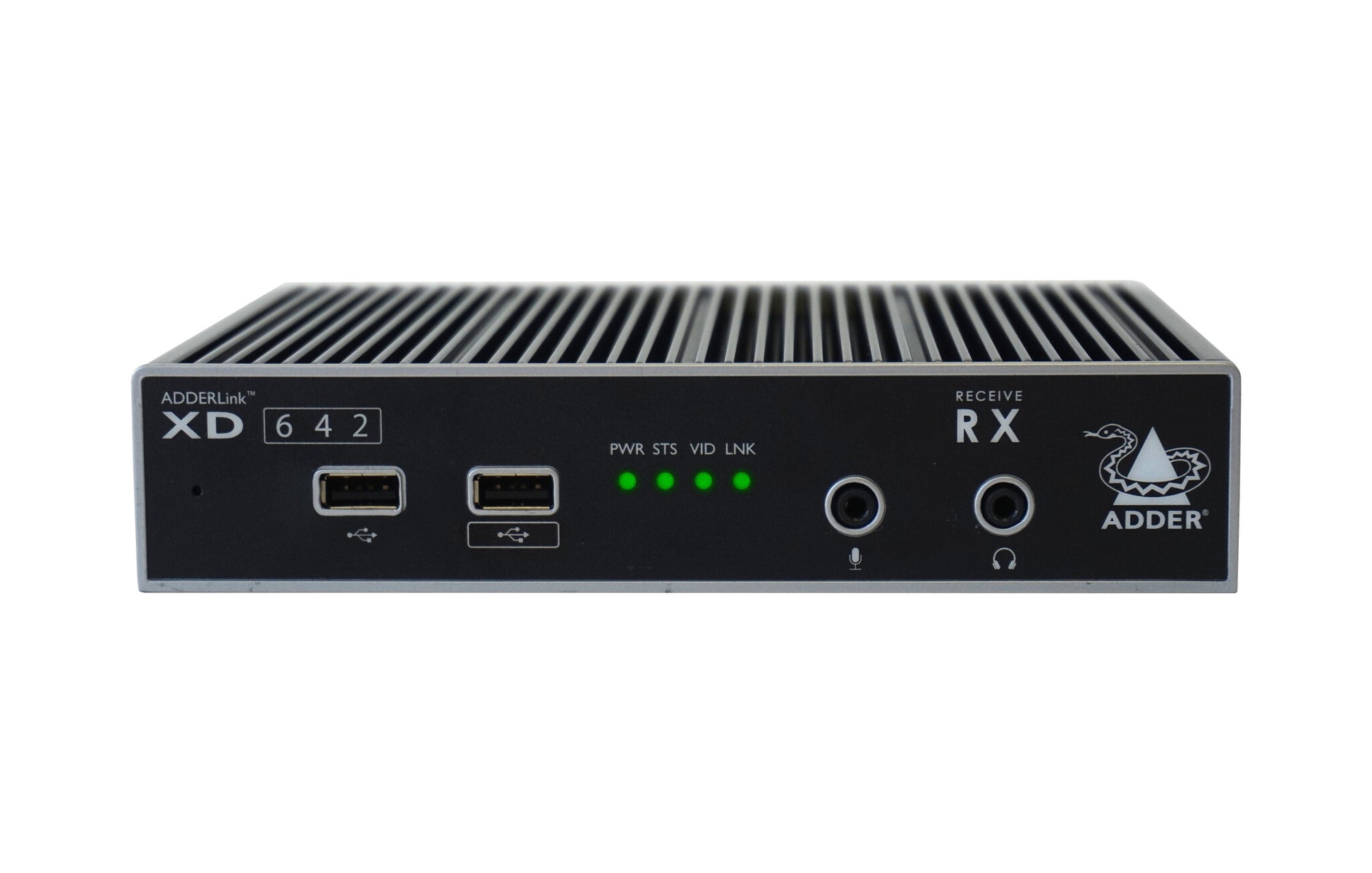

ADDER XD642P-DP KVM extender Transmitter & receiver
ADDER XD642P-DP KVM extender Transmitter & receiver
SKU:XD642P-DP-EURO
Low stock: 5 left
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
- Dual-head 4K60 video, USB2.0 and audio
- Point-to-point protocol for ultra-low latency
- Flexibility between copper and fiber connectivity
- Adder’s USB emulation ensures reliable computer bootup
The ADDERLink XD642 is a high performance KVMA (Keyboard, Video, Mouse and Audio) extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 4000 m |
| Cable types supported | Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber |
| Maximum digital resolution | 4096 x 2160 pixels |
| Colour depth | 8 bit |
| Supported resolutions | up to 4096x2160 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling |
| Product colour | Black |
| Material | Metal |
| Plug and Play | Yes |
| USB 2.0 ports quantity | 6 |
| LED indicators | Status |
| Certification | CE, FCC |
| Transmitter | |
|---|---|
| Transmitter video port type | DisplayPort |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
|---|---|
| Receiver local video port type | DisplayPort |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local keyboard/mouse port type | USB |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 47/63 Hz |
| AC adapter output voltage | 12 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Transmitter width | 18.6 cm |
| Transmitter depth | 14.8 cm |
| Transmitter height | 3.9 cm |
| Transmitter weight | 1.29 kg |
| Receiver width | 18.6 cm |
| Receiver depth | 14.8 cm |
| Receiver height | 3.9 cm |
| Receiver weight | 1.24 kg |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 2 |
| RJ-11 ports quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
