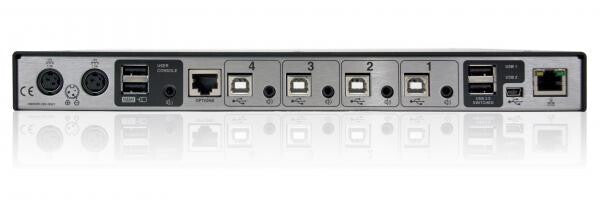

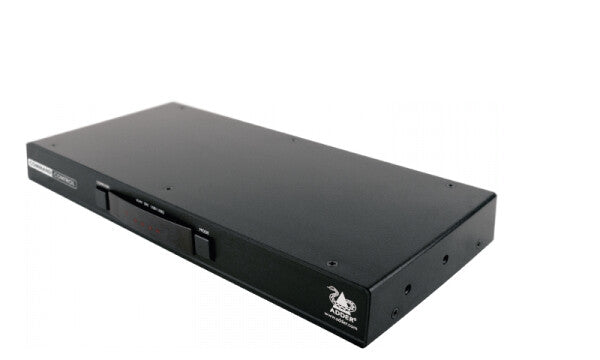

ADDER CCS-PRO4 KVM switch Black

ADDER CCS-PRO4 KVM switch Black

£585.12 GBP
£585.12 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

CCS-PRO4-EURO

Low stock: 1 left

  • Adder’s multi-monitor Free-Flow technology
  • USB True Emulation
  • Multiple switching options
  • External API control
  • Independent USB device selection
  • Power redundancy
  • Screen Illumination Module
4 x USB type B, 4 x Audio 3.5mm in, Command and Control switch, 900g

The ADDER® CCS-PRO4 Command and Control switch enables users to interact with up to four computers using a single mouse and keyboard. The operator can simply move the mouse cursor across screen borders to instantly select the computer they need to control providing the experience of a single desktop, saving both time and desk space.

- Improved desk ergonomics: one keyboard and mouse to operate up to four computers, saving desk space and reducing mental load
- Seamless switching: Free-Flow allows users to switch intuitively between target computer by moving the mouse pointer from screen to screen
- Flexible audio: amalgamated audio from selected computer sources enables the user to hear all relevant audio and alarm events

Ports & interfaces
Number of computers controlled 4
Keyboard port type USB
Mouse port type USB
Video port type USB
USB 2.0 Type-B ports quantity 4
Console USB ports quantity 4
Console ports 3.5mm mic, USB A
Audio connections Yes
Network
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Design
Product colour Black
Housing material Metal
LED indicators Yes
Certification CE, FCC
Display
Built-in display Yes
Power
Power source AC
Input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 0.7 A
Output voltage 12 V
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 290 mm
Depth 130 mm
Height 30 mm
Weight 900 g
Logistics data
Harmonized System (HS) code 85176200
