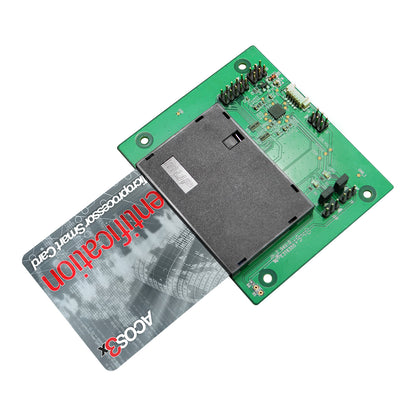

ACS ACM39U-Y3 interface cards/adapter
ACS ACM39U-Y3 interface cards/adapter
SKU:ACM39U-Y3
167 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.
The ACM39U-Y3 provides a solution for secured access control by employing the globally recognized ACR39 core. It comes in module form to enable easy implementation of smart card-based solutions in embedded systems. The ACM39U-Y3 uses the latest microchip technology, bringing you high security for your confidential files in a convenient and easy way.
The ACM39U-Y3 supports ISO 7816 Class A, B, and C smart cards. Also, it works with memory cards and microprocessor cards with T=0 and T=1 protocol. It features a USB Full Speed interface and a smart card read/write speed of 600 Kbps. This highly durable device can last for at least 100,000 card insertion cycles.
The ACM39U-Y3 is also easy to install and use with various environments. Being PC/SC and CCID–compliant, its drivers are compatible with operating systems such as Windows®, Linux®, and Mac OS®. In addition, the ACM39U-Y3 can also be integrated with systems running the Android™ platform with versions 3.1 and later.
With its various features, the ACM39U-Y3 is a powerful component that is ideal for Security, e-Banking, e-Payment, and e-Government applications.
| Design | |
|---|---|
| Product colour | Black, Green |
| Features | |
|---|---|
| Plug and Play | Yes |
| Supported protocols | T=0; T=1; Memory Card Support |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | Android |
| Weight & dimensions | |
|---|---|
| Width | 82 mm |
| Depth | 70 mm |
| Height | 10 mm |
| Weight | 19.1 g |
| Other features | |
|---|---|
| Compliance industry standards | ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V) |
| Interface | USB 1.1 |
| Mac compatibility | Yes |
