Ubiquiti Networks
Regular price
£571.82 GBP
Regular price
Sale price
£571.82 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:WAVE-PRO
Low stock: 8 left
- 60 GHz primary radio with 5.4 Gbps (2.7 Gbps duplex) maximum throughput
- 5 GHz 800+ Mbps weather-resistant backup radio
- (2) 2.5 GbE and (1) 10G SFP+ ports
- Ergonomic transportation handle
- Precision alignment mount
- Integrated GPS & Bluetooth
60 GHz, GPS, Bluetooth, 2x RJ-45, 1x SFP+, IPX6, 2.8 kg

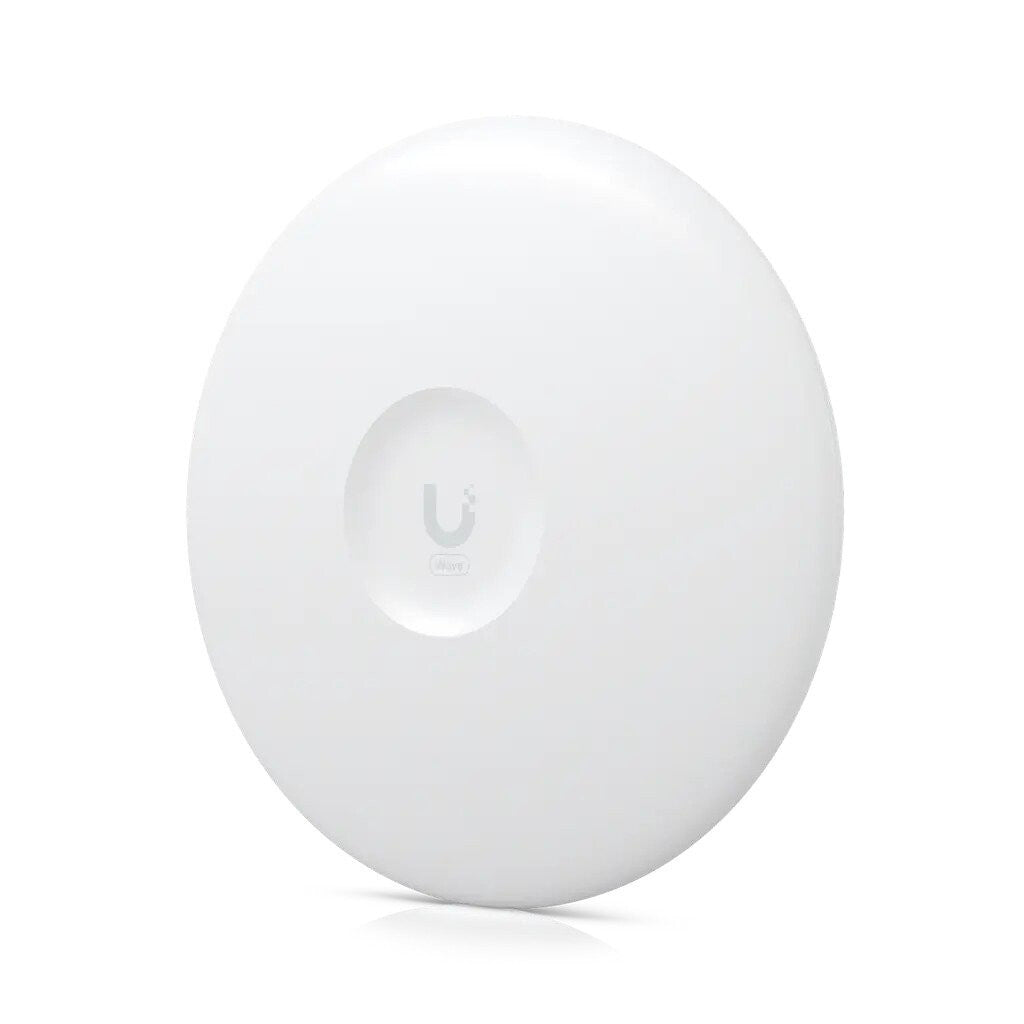

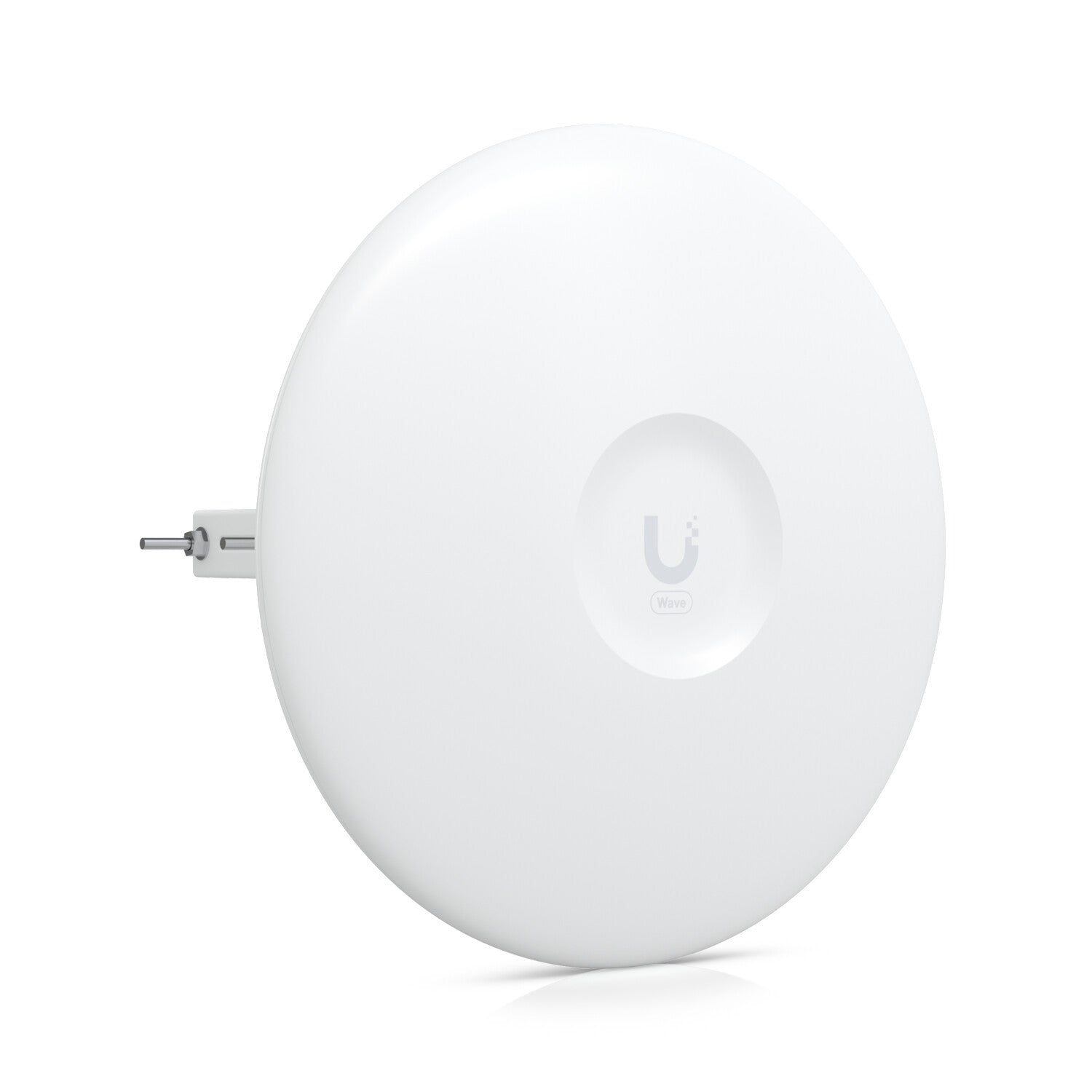

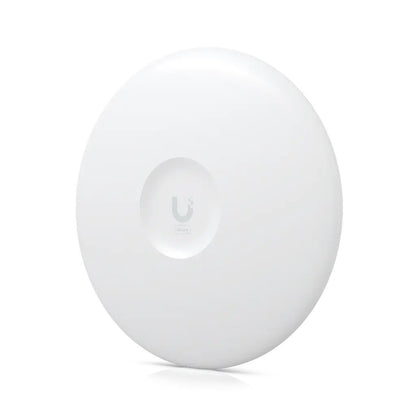

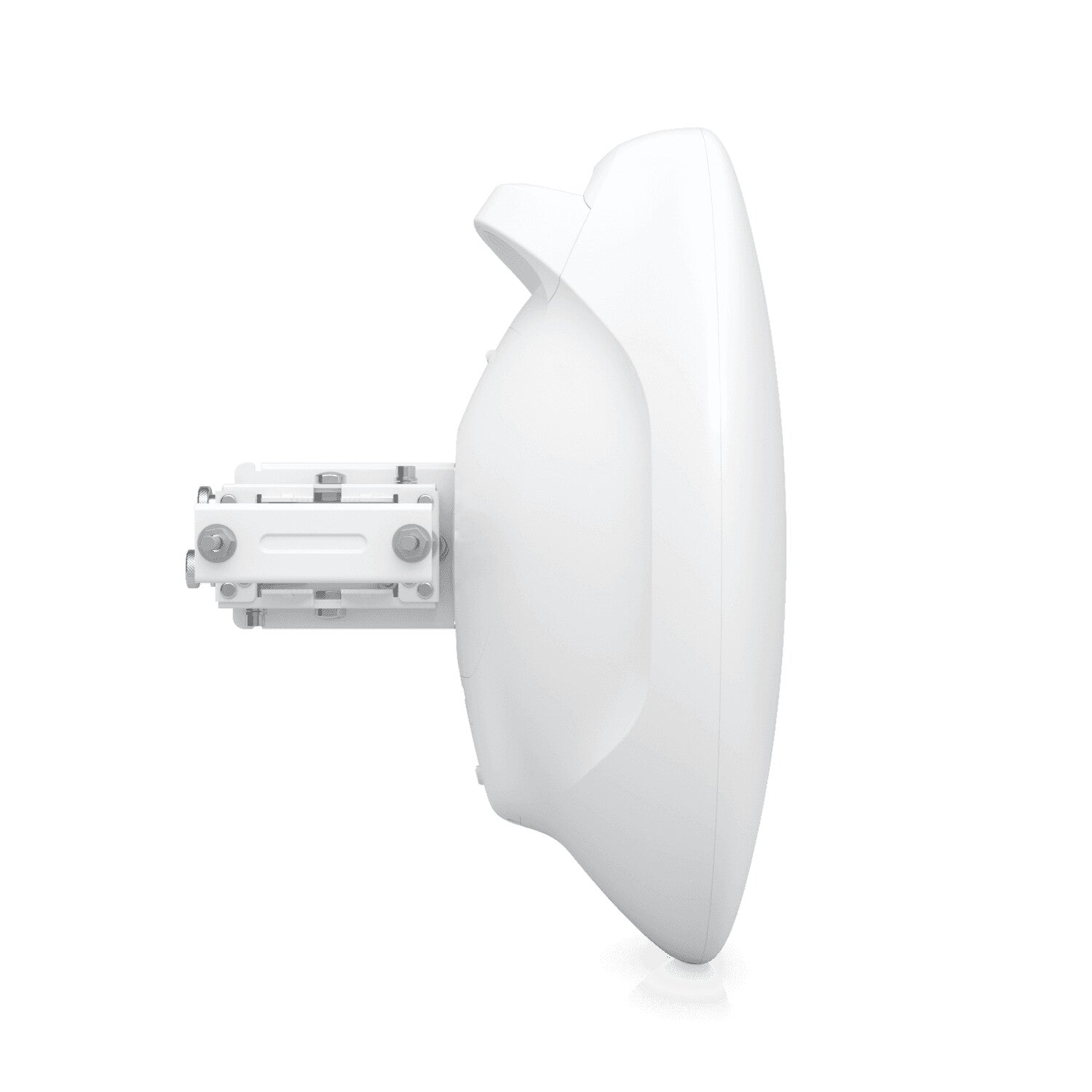

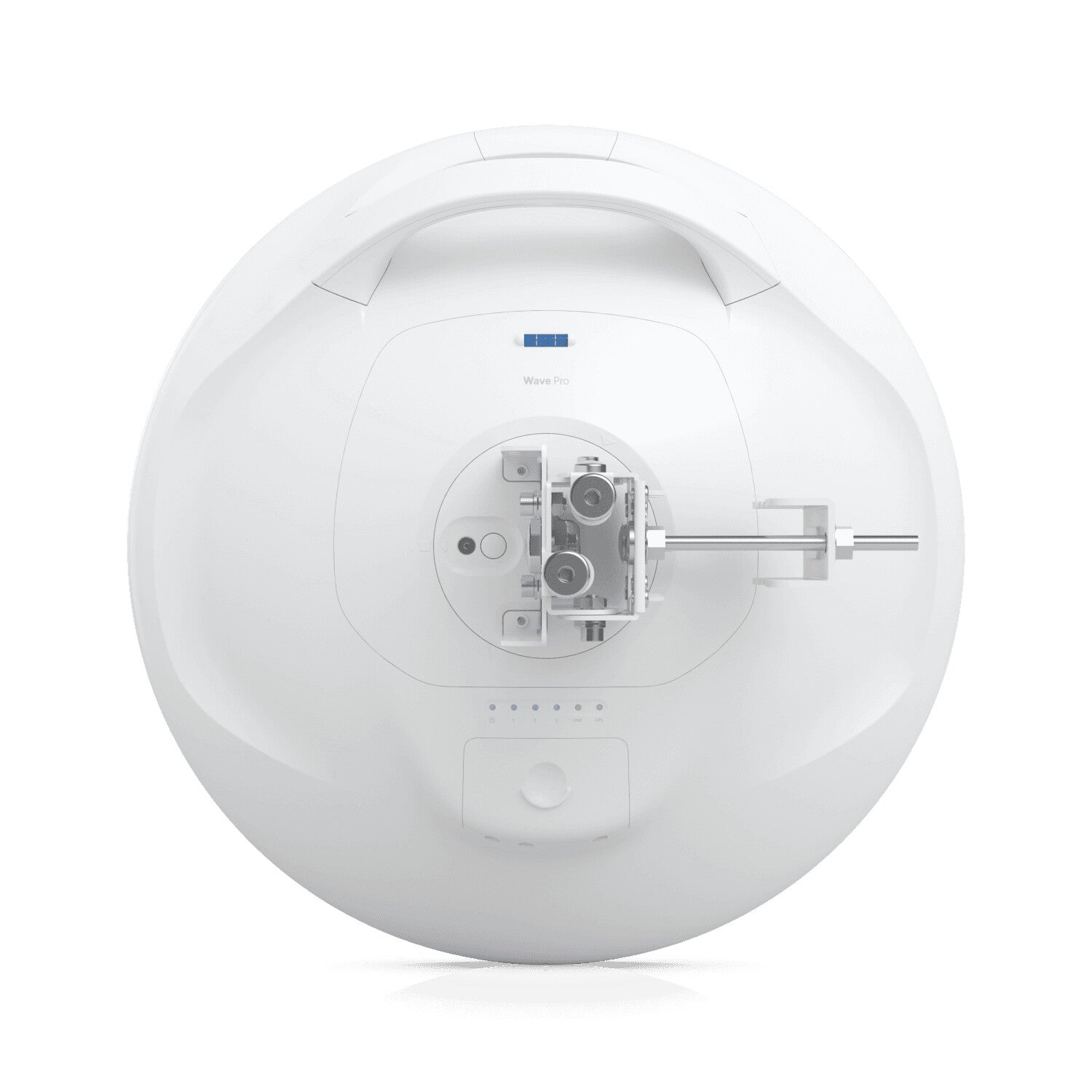

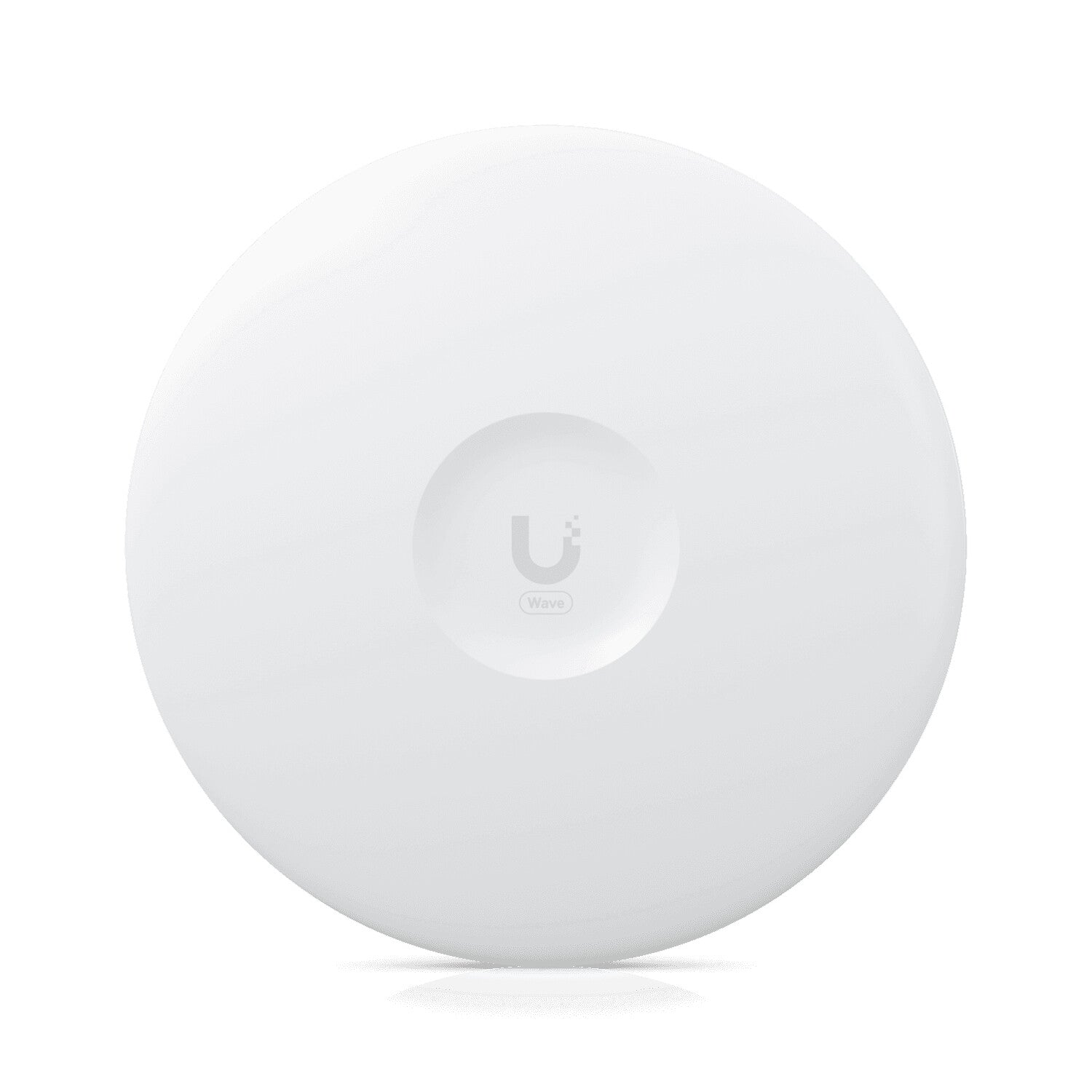

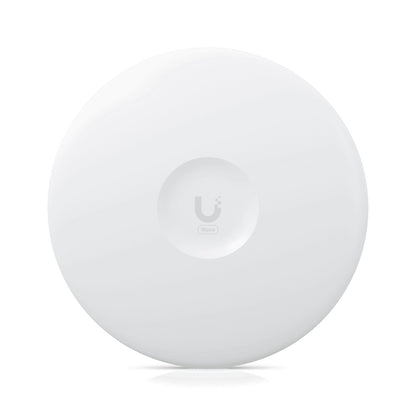

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.
| Data transmission |
|---|
| Maximum data transfer rate |
2500 Mbit/s |
| Maximum transfer distance |
15000 m |
| Antenna |
|---|
| Antenna design |
Internal |
| Antenna type |
Internal |
| Antenna gain level (max) |
46 dBi |
| Wireless LAN features |
|---|
| Wi-Fi |
Yes |
| Wi-Fi band |
Single-band (5 GHz) |
| Top Wi-Fi standard |
Wi-Fi 6 (802.11ax) |
| Frequency band |
57 - 71 GHz |
| Modulation |
16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Networking standards |
IEEE 802.11ax |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Security |
|---|
| Security algorithms |
WPA2-PSK |
| Features |
|---|
| Product type |
Network bridge |
| Material |
Aluminium, Plastic |
| Mounting type |
Pole |
| Product colour |
White |
| LED indicators |
GPS, LAN, Link, Power |
| Power LED |
Yes |
| Network Time Protocol (NTP) client |
Yes |
| International Protection (IP) code |
IPX6 |
| Reset button |
Yes |
| Internal memory |
512 MB |
| Power |
|---|
| Power source type |
DC, PoE |
| DC input voltage |
44 – 54 |
| Power consumption (max) |
26 W |
| Power over Ethernet (PoE) |
Yes |
| DC output voltage |
48 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Certificates |
|---|
| Certification |
FCC, IC, CE |
| Weight & dimensions |
|---|
| Width |
424.4 mm |
| Depth |
424.4 mm |
| Height |
166.2 mm |
| Weight |
2.8 kg |
| Processor |
|---|
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| Processor model |
ARM Cortex-A53 |
| Processor frequency |
1400 MHz |
| Packaging content |
|---|
| Mounting bracket(s) included |
Yes |
| Quick installation guide |
Yes |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
