SKU:UXG-FIBER
536 in stock
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
- 5 Gbps routing with IDS/IPS

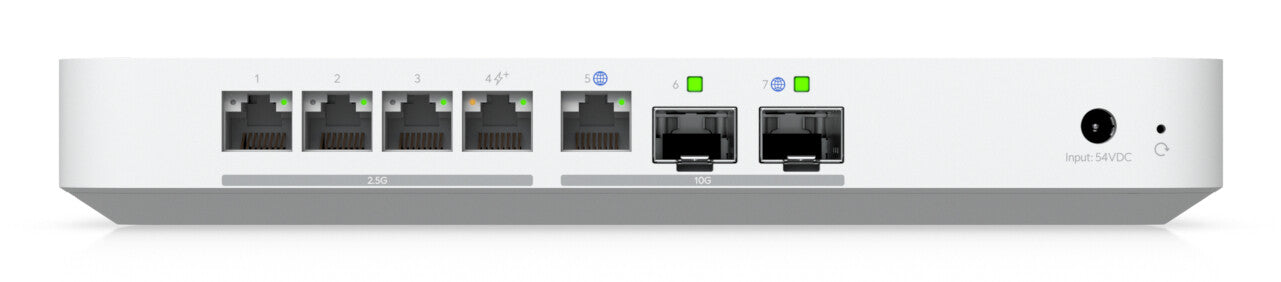

- (1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
- (1) 10G SFP+ LAN port
- Integrated 4-port switch with (1) PoE+ port
Managed, 4x 2.5 GbE LAN, PoE+, 10G SFP+ WAN, 10 GbE RJ45 WAN, 10G SFP+ LAN, Quad-core ARM Cortex-A73 at 2.2 GHz, 2 GB, Polycarbonate, white, 212.8 x 127.6 x 30 mm
Desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
| Design |
|---|
| LED indicators |
Activity, LAN, Link, System |
| Enclosure material |
Polycarbonate (PC) |
| Product colour |
White |
| Performance |
|---|
| Internal memory |
2000 MB |
| Number of processors installed |
1 |
| Processor frequency |
2200 MHz |
| Built-in processor |
Yes |
| Processor manufacturer |
ARM |
| Processor family |
ARM Cortex |
| Control display unit |
No |
| Protocols |
|---|
| Routing protocols |
OSPF |
| Network |
|---|
| Load balancing |
Yes |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
1000,2500,10000 Mbit/s |
| Security |
|---|
| Firewall security |
Yes |
| VLAN support |
Yes |
| Security algorithms |
IPSec, TLS |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| WAN connection |
Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports |
5 |
| SFP+ ports quantity |
2 |
| Management features |
|---|
| Reset button |
Yes |
| Multicast support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Power |
|---|
| Electromagnetic (EMP) protection (contact) |
4 kV |
| Electromagnetic (EMP) protection (air) |
8 kV |
| Electromagnetic (EMP) protection |
Yes |
| Power over Ethernet (PoE) |
Yes |
| DC input voltage |
54 V |
| Power over Ethernet (PoE) type supported |
PoE+ |
| Input current |
1.1 A |
| Input voltage |
100 - 240 V |
| Power consumption (max) |
25 W |
| Weight & dimensions |
|---|
| Weight |
605 g |
| Width |
212.8 mm |
| Depth |
127.6 mm |
| Height |
30 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Cables included |
Power |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
