Ubiquiti Networks
Regular price
£2,759.83 GBP
Regular price
Sale price
£2,759.83 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:ECS-AGGREGATION-UK
18 in stock
- Managed L2/L3
- 10G support
- MAC address table: 256000 entries Switching capacity: 3600 Gbit/s
- 1U Rack mounting
- AC Power supply included

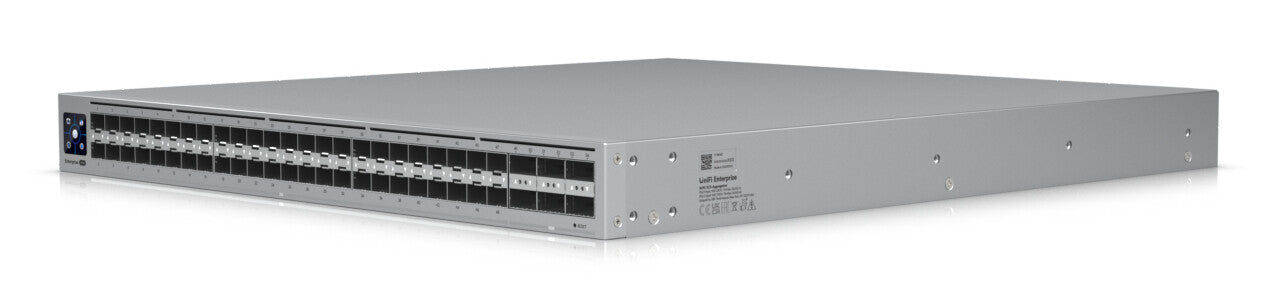

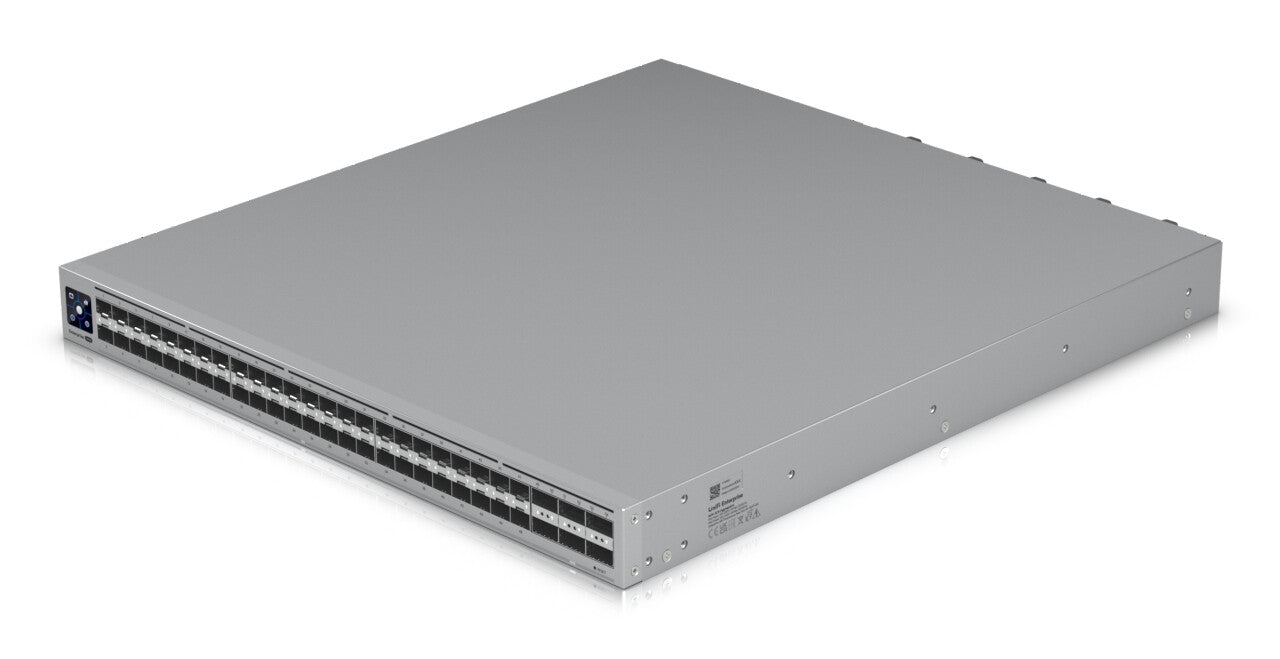

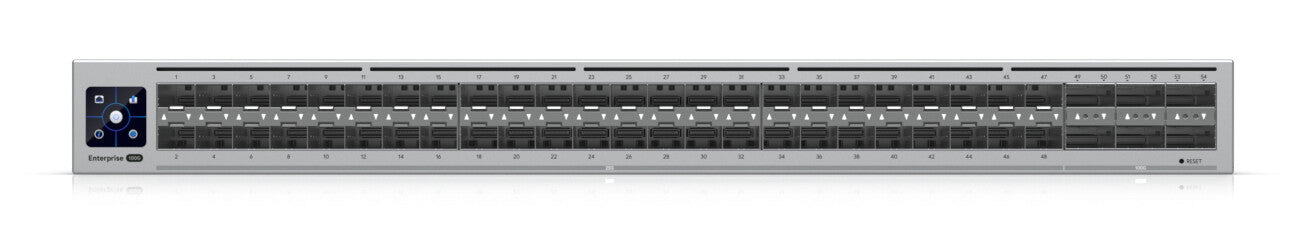

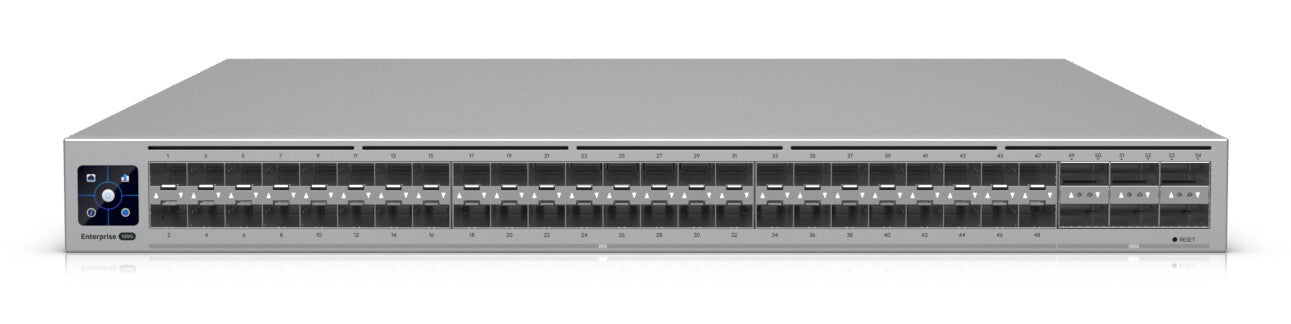

Enterprise Campus Aggregation, 6x 100/40G QSFP28 ports, 48x 25/10G SFP28 ports, 3.6 Tbps, 2.3 Bpps, 442.4 x 43.7 x 496 mm
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
| Management features |
|---|
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports type |
No |
| SFP28 ports quantity |
48 |
| QSFP28 ports quantity |
6 |
| Network |
|---|
| 10G support |
Yes |
| Port mirroring |
Yes |
| IPv4 routes |
512000 |
| Network virtualization technologies |
Multi-Chassis Link Aggregation (MLAG) |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
Voice VLAN |
| Number of VLANs |
1000 |
| Data transmission |
|---|
| MAC address table |
256000 entries |
| Switching capacity |
3600 Gbit/s |
| Throughput |
1800 Gbit/s |
| Forwarding rate |
2400 Mpps |
| Jumbo frames support |
Yes |
| Packet buffer memory |
24 MB |
| Security |
|---|
| DHCP features |
DHCP guarding, DHCP relay, DHCP snooping |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| MAC address filtering |
Yes |
| Multicast features |
|---|
| Multicast support |
Yes |
| Design |
|---|

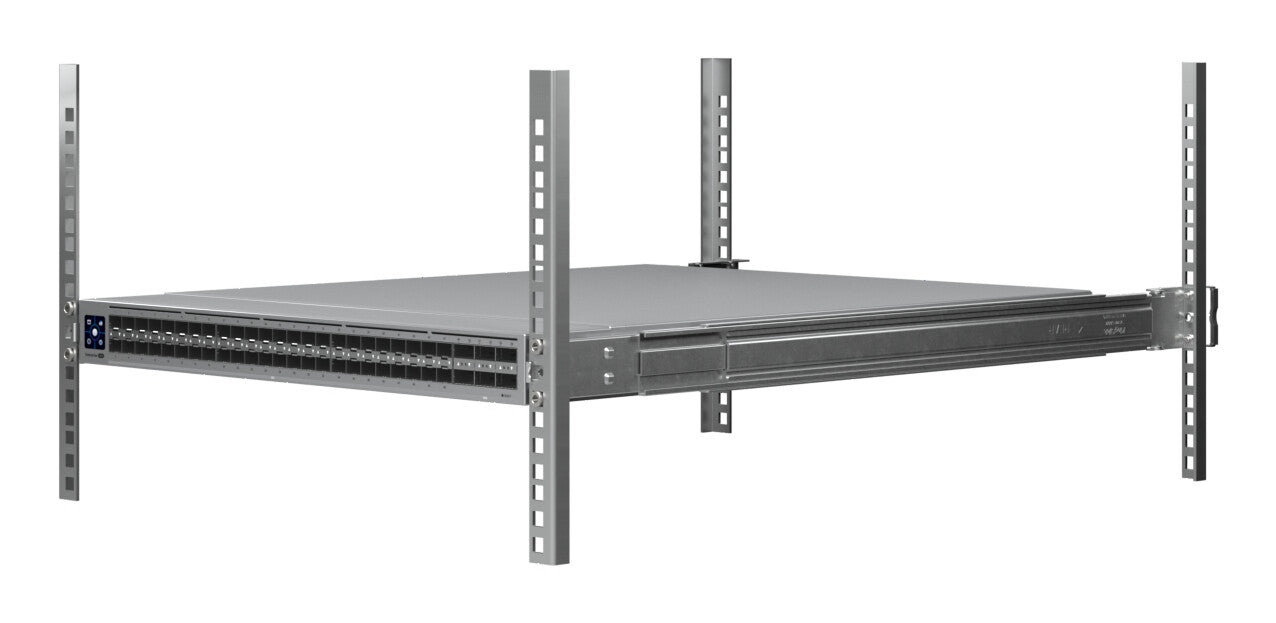

| Rack mounting |
Yes |
| Form factor |
1U |
| Product colour |
Grey |
| Housing material |
SGCC |
| LED indicators |
Yes |
| Redundant fans support |
Yes |
| Display type |
LCM |
| Number of fans |
5 fan(s) |
| general_information_attribute_container_name |
|---|
| attribute_product_family_name |
UniFi |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA) |
| Power |
|---|
| Power source |
AC |
| Power supply included |
Yes |

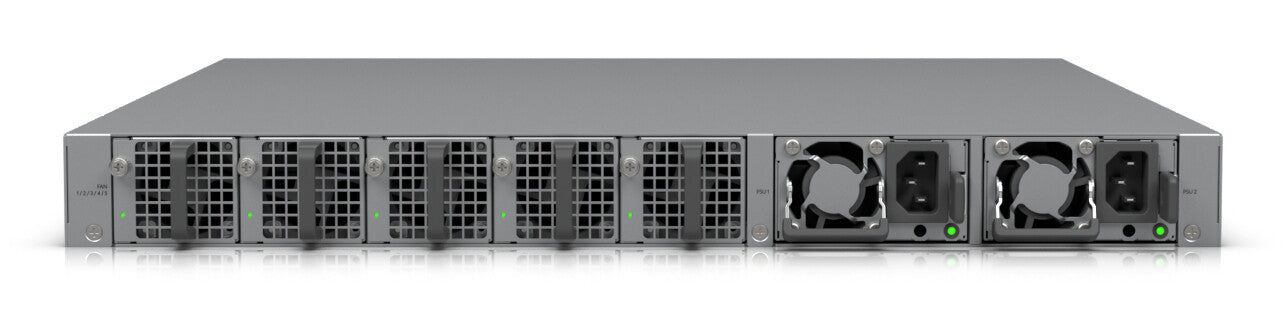

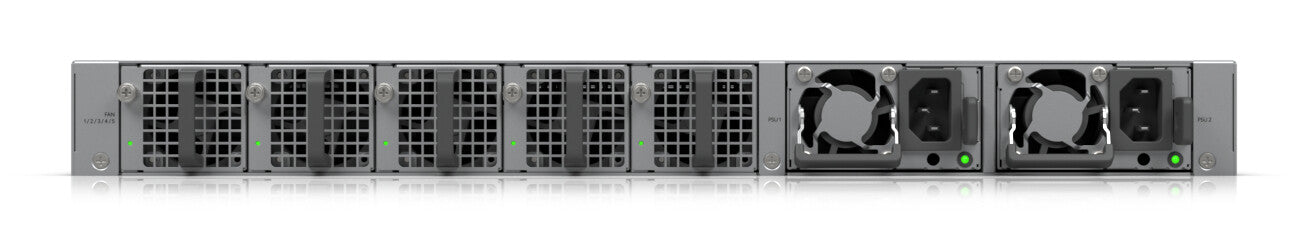

| Number of power supply units |
2 |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power consumption (max) |
340 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 95% |
| Heat dissipation |
1160.08 BTU/h |
| Weight & dimensions |
|---|
| Width |
442.4 mm |
| Depth |
496 mm |
| Height |
43.7 mm |
| Weight |
9.9 kg |
