Ubiquiti Networks

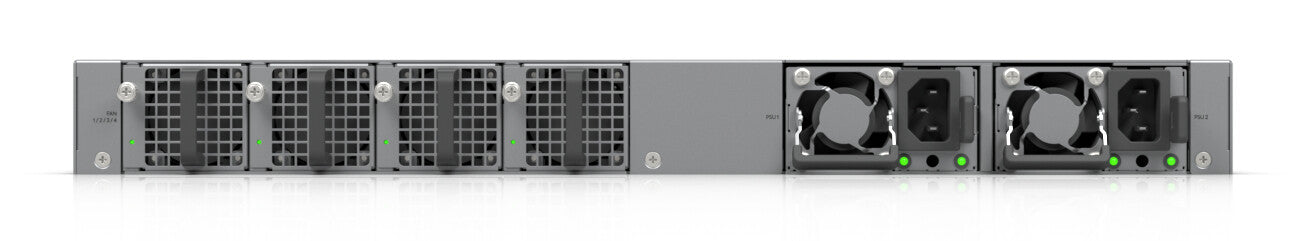

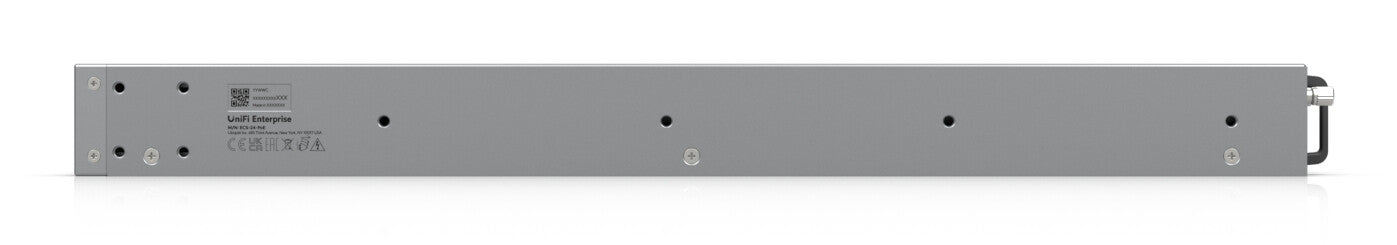

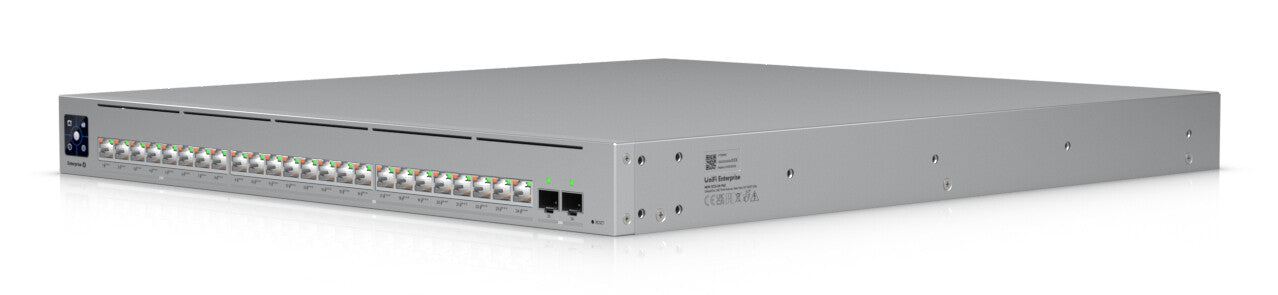

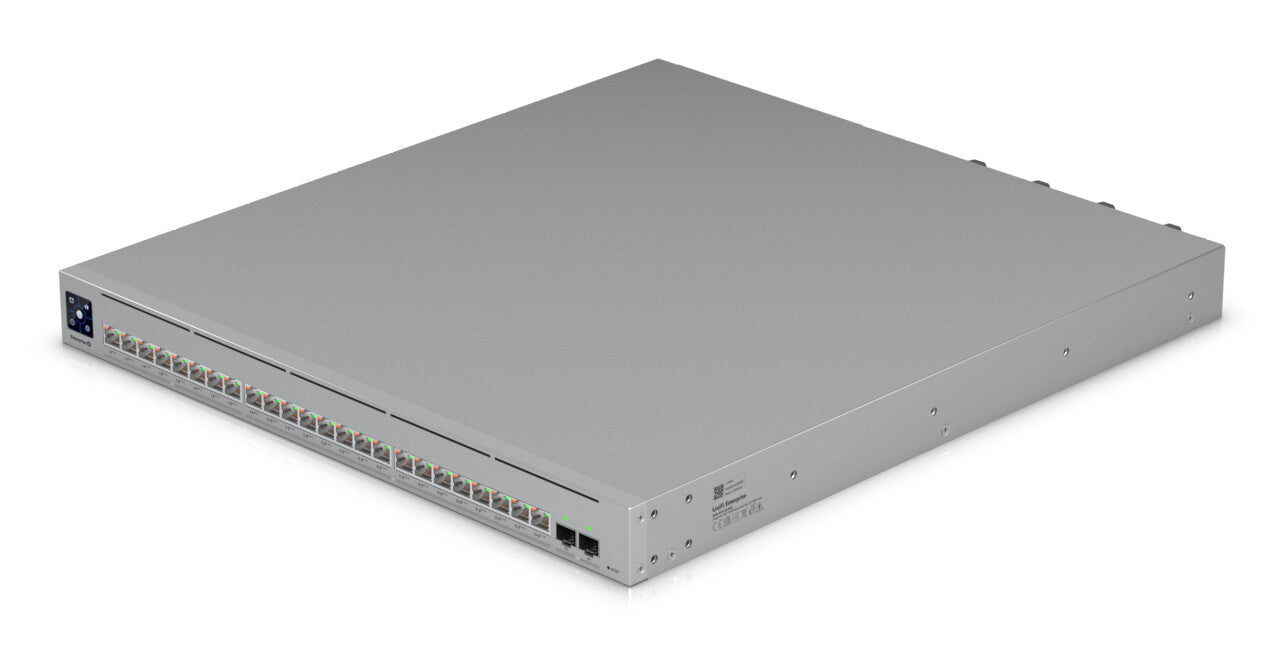

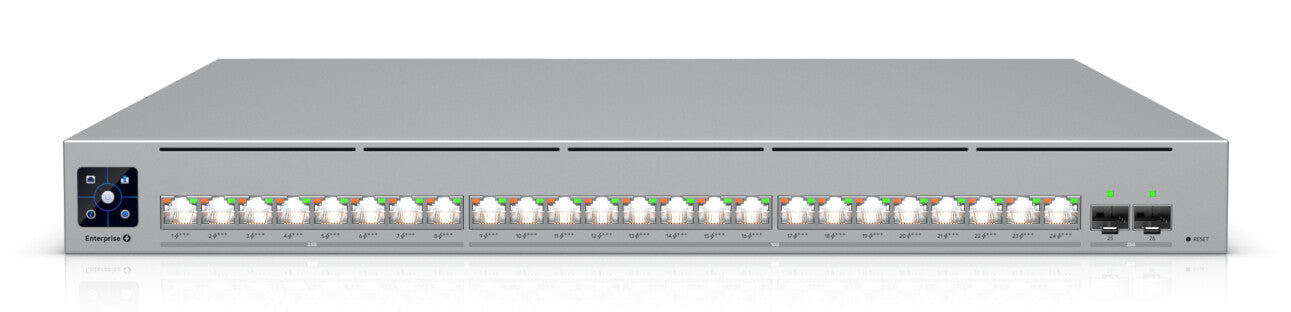

Ubiquiti UniFi ECS-24-PoE-UK Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

Ubiquiti UniFi ECS-24-PoE-UK Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

£1,857.58 GBP
£1,857.58 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

ECS-24-POE-UK

12 in stock

  • Managed L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10G support
  • MAC address table: 128000 entries Switching capacity: 460 Gbit/s
  • 1U Rack mounting
  • AC Power supply included Power over Ethernet (PoE)

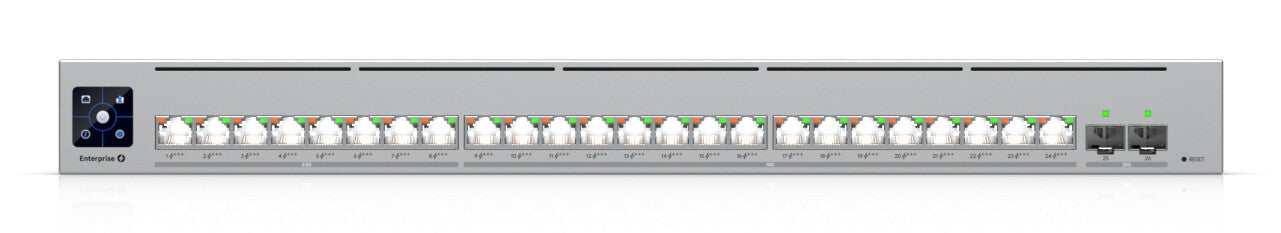

Enterprise Campus 24 PoE, 16x 10 GbE, 8x 2.5 GbE, PoE+++ 90W, 2x 25G SFP28, 460 Gbps, 1.3" touchscreen, 1U, SGCC steel

Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Management features
Switch type Managed
Switch layer L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type 10G Ethernet (100/1000/10000)
2.5G Ethernet (copper) ports quantity 8
10G Ethernet (copper) ports quantity 16
SFP module slots quantity 2
SFP28 ports quantity 2
Power connector AC-in jack
Network
Networking standards IEEE 802.1x, IEEE 802.3bt
10G support Yes
Port mirroring Yes
IPv4 routes 256000
Rate limiting Yes
Ethernet LAN data rates 10,100,1000,2500,5000,10000 Mbit/s
Link aggregation Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Voice VLAN
Data transmission
MAC address table 128000 entries
Switching capacity 460 Gbit/s
Throughput 230 Gbit/s
Forwarding rate 342.24 Mpps
Static route Yes
Jumbo frames support Yes
Packet buffer memory 8 MB
Security
DHCP features DHCP guarding, DHCP relay, DHCP snooping
IGMP snooping Yes
Loop protection Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Form factor 1U
Product colour Grey
Housing material SGCC
Reset button Yes
LED indicators Activity, Link, Status
Redundant fans support Yes
Display type LCM
Number of fans 4 fan(s)
general_information_attribute_container_name
attribute_product_family_name UniFi
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Power
Power source AC
Power supply included Yes

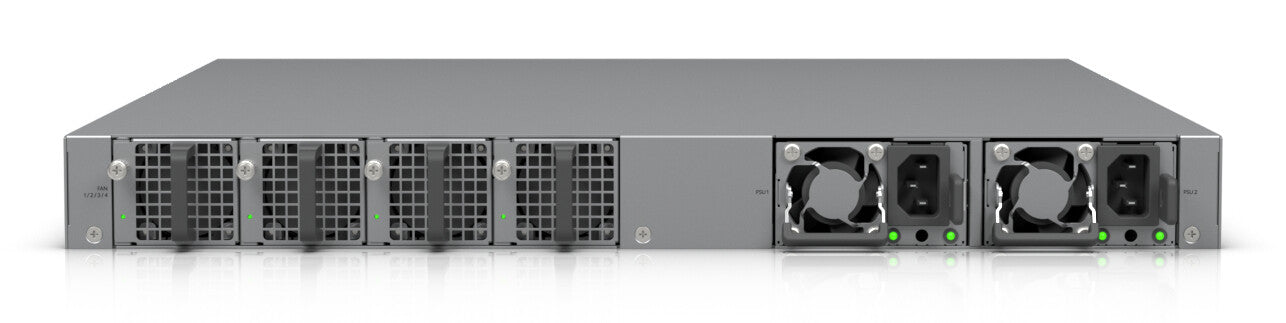

Redundant power supply (RPS) support Yes
Number of power supply units 2
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 2400 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) type supported PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE) power per port 90 W
Total Power over Ethernet (PoE) budget 1050 W
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442.4 mm
Depth 496 mm
Height 43.7 mm
Weight 9.46 kg
Packaging data

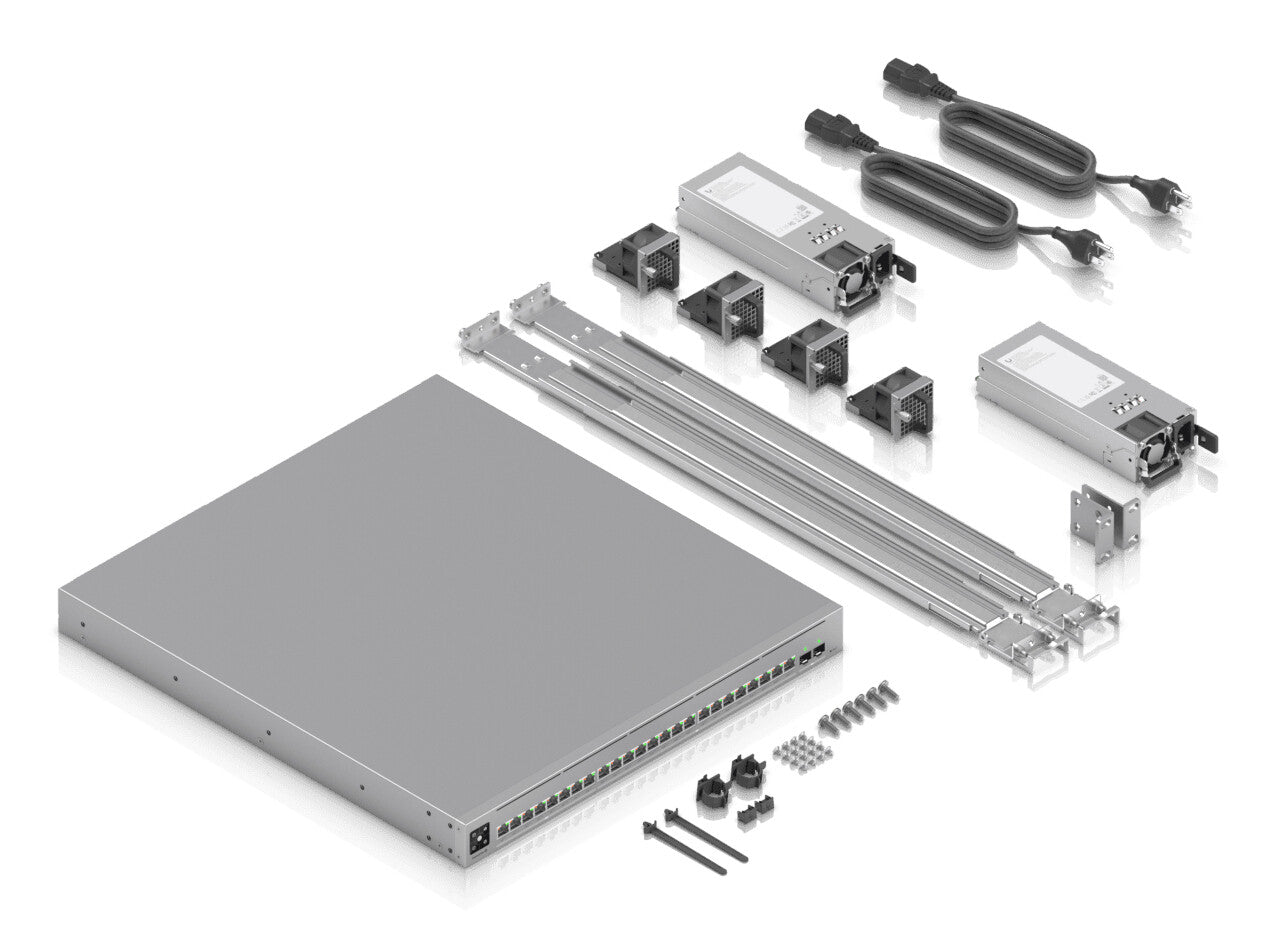

Cables included Power

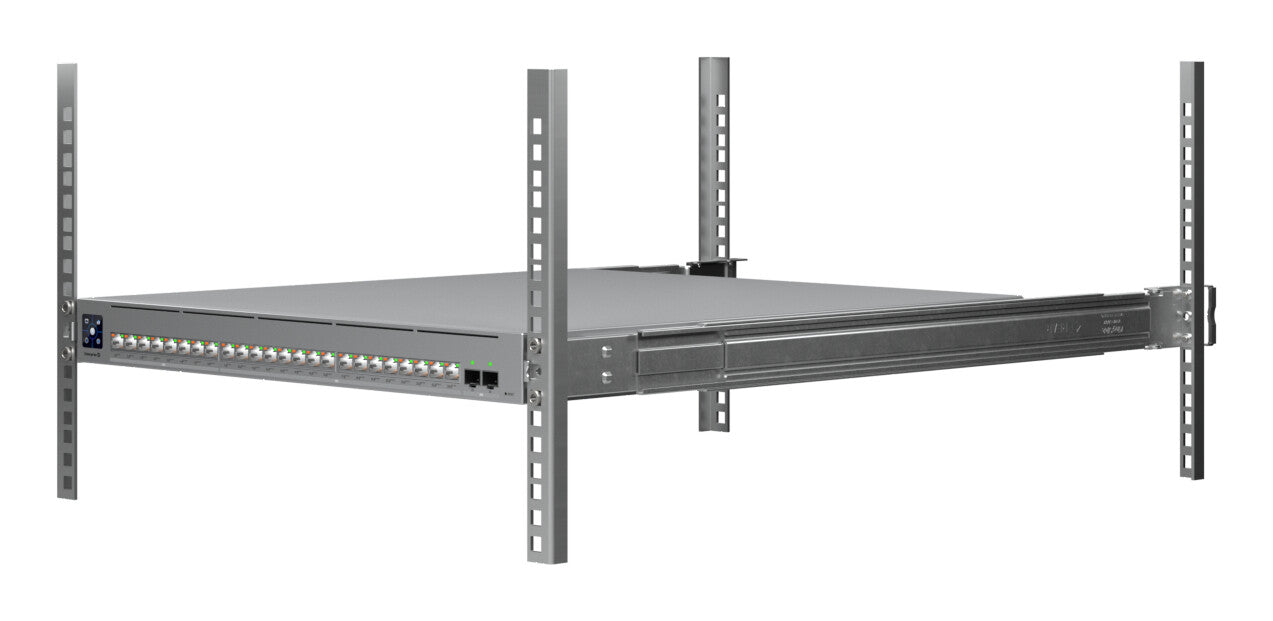

Rack rails Yes
Mounting brackets included Yes
Rack mount kit Yes
