Manhattan DisplayPort 1.2 Cable, 4K@60Hz, 1m, With Latches, Fully Shielded, Black, Lifetime Warranty, Equivalent to DISPL1M
Manhattan DisplayPort 1.2 Cable, 4K@60Hz, 1m, With Latches, Fully Shielded, Black, Lifetime Warranty, Equivalent to DISPL1M
SKU:306935
100 in stock
Couldn't load pickup availability
Delivery & lead times
Delivery & lead times
Some products ship directly from our suppliers and can have longer lead times than stock held in the UK. If you need a delivery date, please contact us before ordering. See our shipping policy.
Buying 5 or more? Volume pricing
Buying 5 or more? Volume pricing
We offer volume pricing, business accounts and quotations for organisations. Request a quote or call 01344 963637.
Returns & warranty
Returns & warranty
See our refund policy. Manufacturer warranty terms vary by product - contact us if you need warranty details before you buy.

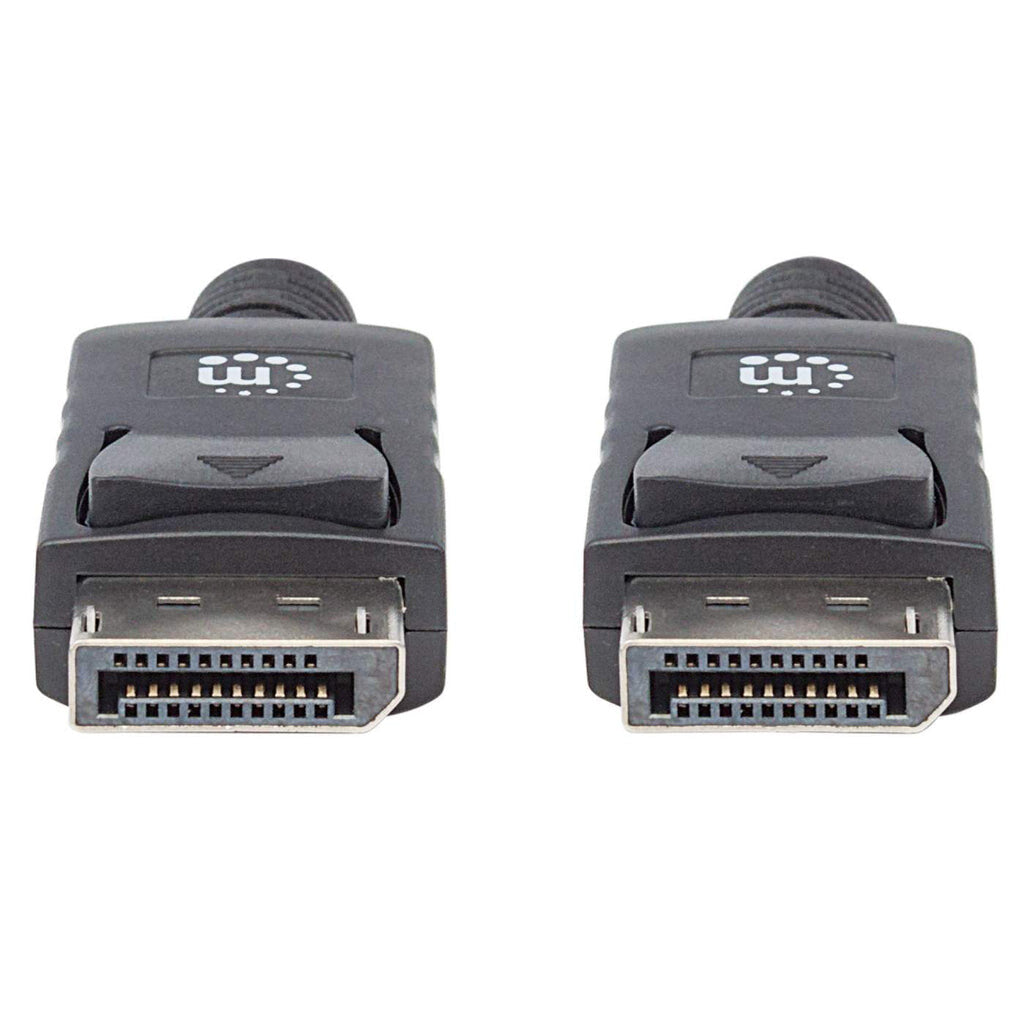

- DisplayPort 20-pin male to DisplayPort 20-pin male latching connections
- Delivers high-bandwidth, digital audio/visual signals from PC to display and other DisplayPort-enabled devices — up to 4K@60hz resolution
- Fully shielded to reduce EMI and other interference sources
- Plug and play for box-to-box applications
- Moulded PVC boot
- Lifetime Warranty
High-definition performance for personal computing._x000D_
Manhattan DisplayPort Cables provide a single-cable solution that delivers both high-definition digital audio and video signals between desktop and notebook computers and an output device. With 21.6 Gbps bandwidth (HBR2), Deepcolour and 24-bit, 8-channel uncompressed audio capability, the 20-pin connector is small, compact and ideal for use with DisplayPort-equipped computers, flat-panel displays, slim-profile devices and many consumer electronics including Blu-ray players and game consoles. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections help Manhattan DisplayPort Cables provide maximum conductivity and clear, crisp signal transmissions with reduced EMI interference and distortion.
| Features | |
|---|---|
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 4096 x 2160 pixels |
| Product colour | Black |
| Magnetically shielded | Yes |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Certification | UL 20276 |
| Packaging data | |
|---|---|
| Weight | 75 g |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
|---|---|
| Compliance certificates | CE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
