Hewlett Packard Enterprise

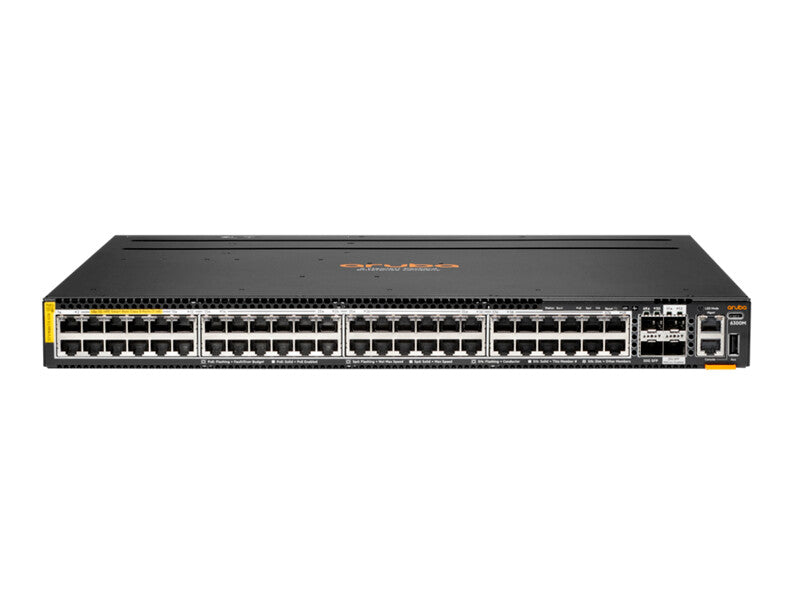

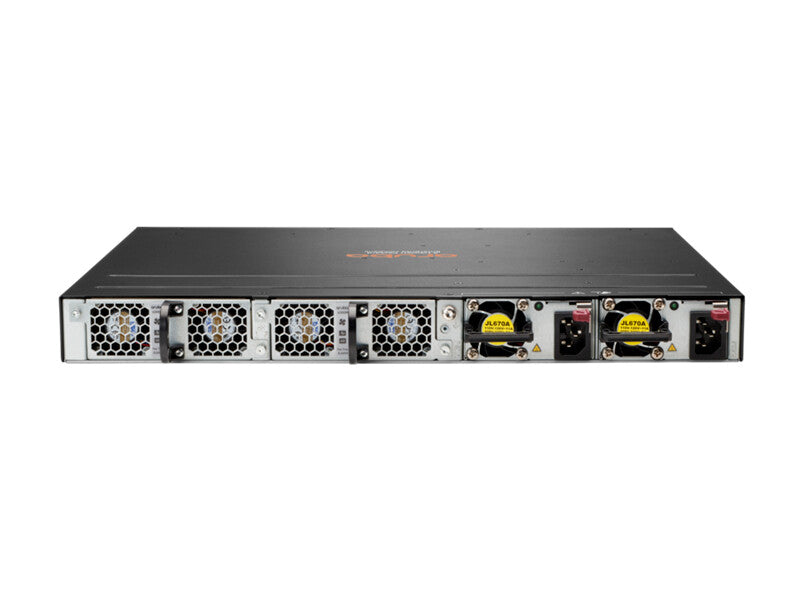

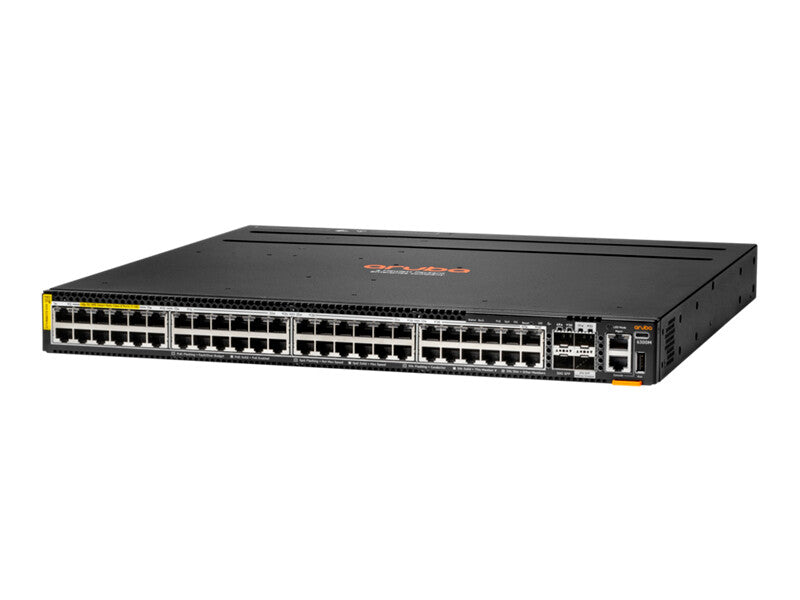

HPE Aruba Networking R8S90A network switch Managed 5G Ethernet (100/1000/5000) Power over Ethernet (PoE)

HPE Aruba Networking R8S90A network switch Managed 5G Ethernet (100/1000/5000) Power over Ethernet (PoE)

£16,294.32 GBP
£16,294.32 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

R8S90A

Low stock: 1 left

  • 48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port
  • 2x 10G/25G/50G SFP ports
  • 2x 1G/10G/25G SFP ports (MACSEC)
  • Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 90W)
  • 1x USB-C Console Port
  • 1x RJ Console Port
  • 1x OOBM port
  • 1x USB Type A Host port
  • 1x Bluetooth dongle to be used with CX Mobile App
6300M 48p HPE Smart Rate 1G/2.5G/5G Class8 PoE and 2p 50G and 2p 25G Switch
Management features
Switch type Managed
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 48
Basic switching RJ-45 Ethernet ports type 5G Ethernet (100/1000/5000)
SFP module slots quantity 8
Console port RJ-45/USB Type-C
Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
10G support No
Data transmission
Switching capacity 880 Gbit/s
Throughput 660 Mpps
Latency (1 Gbps) 4.24 µs
Latency (10 Gbps) 1.5 µs
Packet buffer memory 8 MB
general_information_attribute_container_name
attribute_product_family_name Aruba Networking
Performance
Built-in processor Yes
Processor model ARM Cortex-A72
Processor frequency 1.8 MHz
Memory type DDR4-SDRAM
Flash memory 32 MB
Power
Power source AC
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) power per port 90 W
Weight & dimensions
Width 442 mm
Depth 385 mm
Height 44 mm
Weight 6.71 kg
