Get more done on this 24" WUXGA resolution monitor with 100 Hz refresh rate.[1] Experience vibrant, consistent colors with 100% sRGB[1] and HP Progressive White Balance.[2]

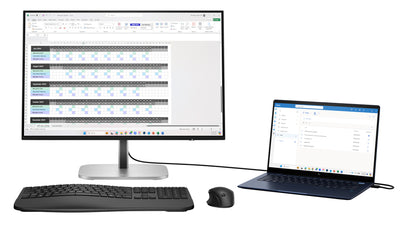

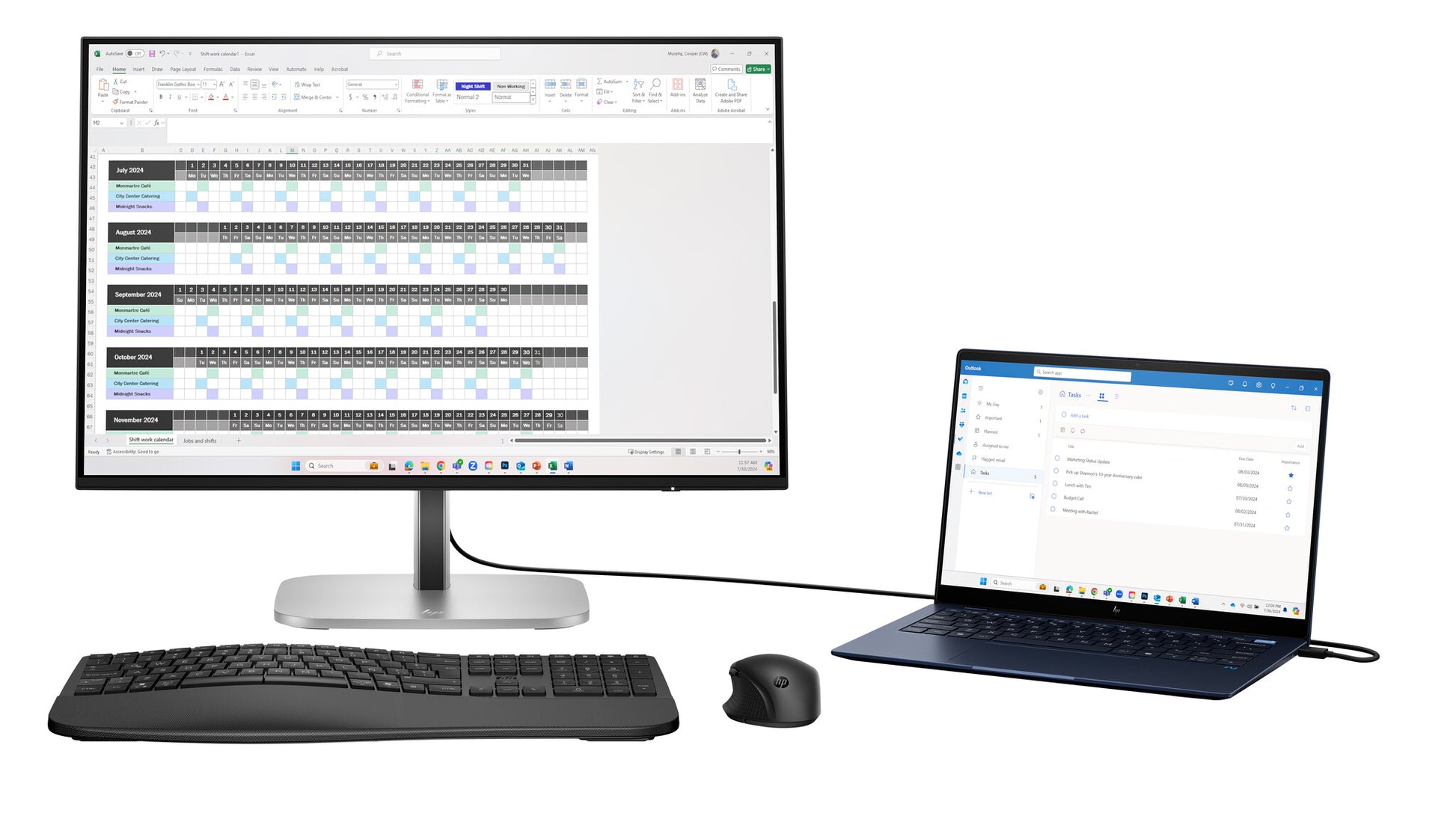

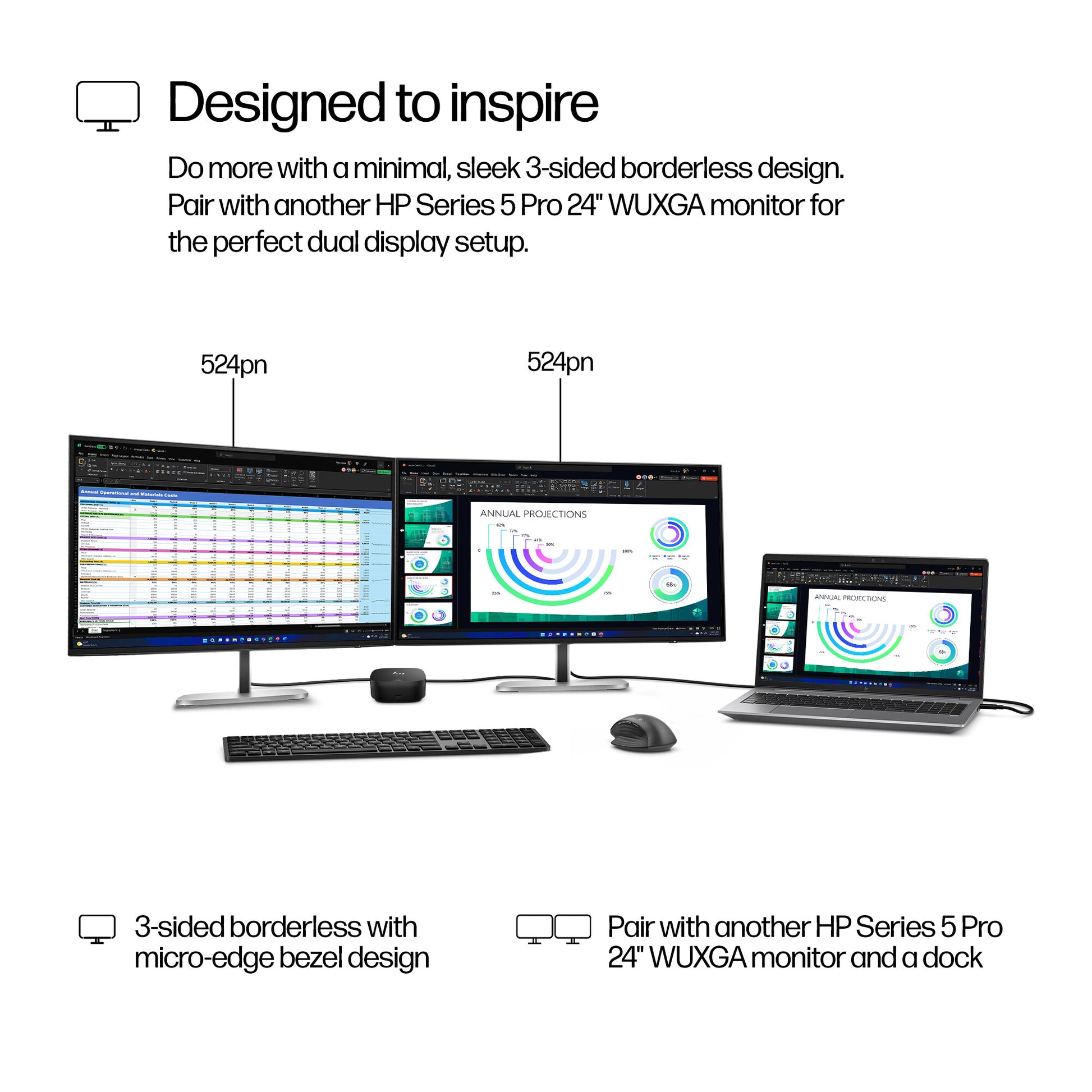

Do more with a minimal, sleek 3-sided borderless design. Pair with another HP Series 5 Pro 24" WUXGA monitor[4] for the perfect dual display setup[13].

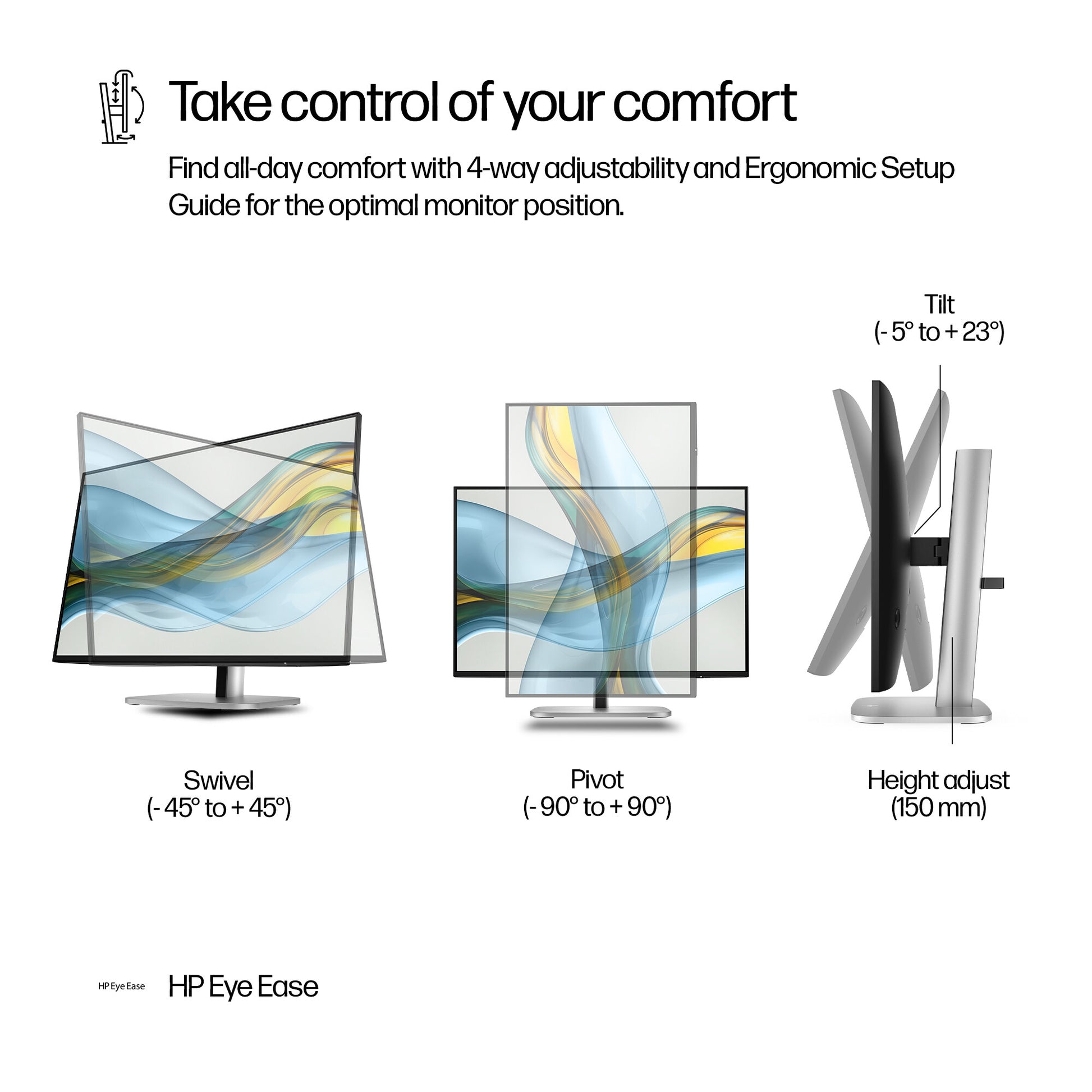

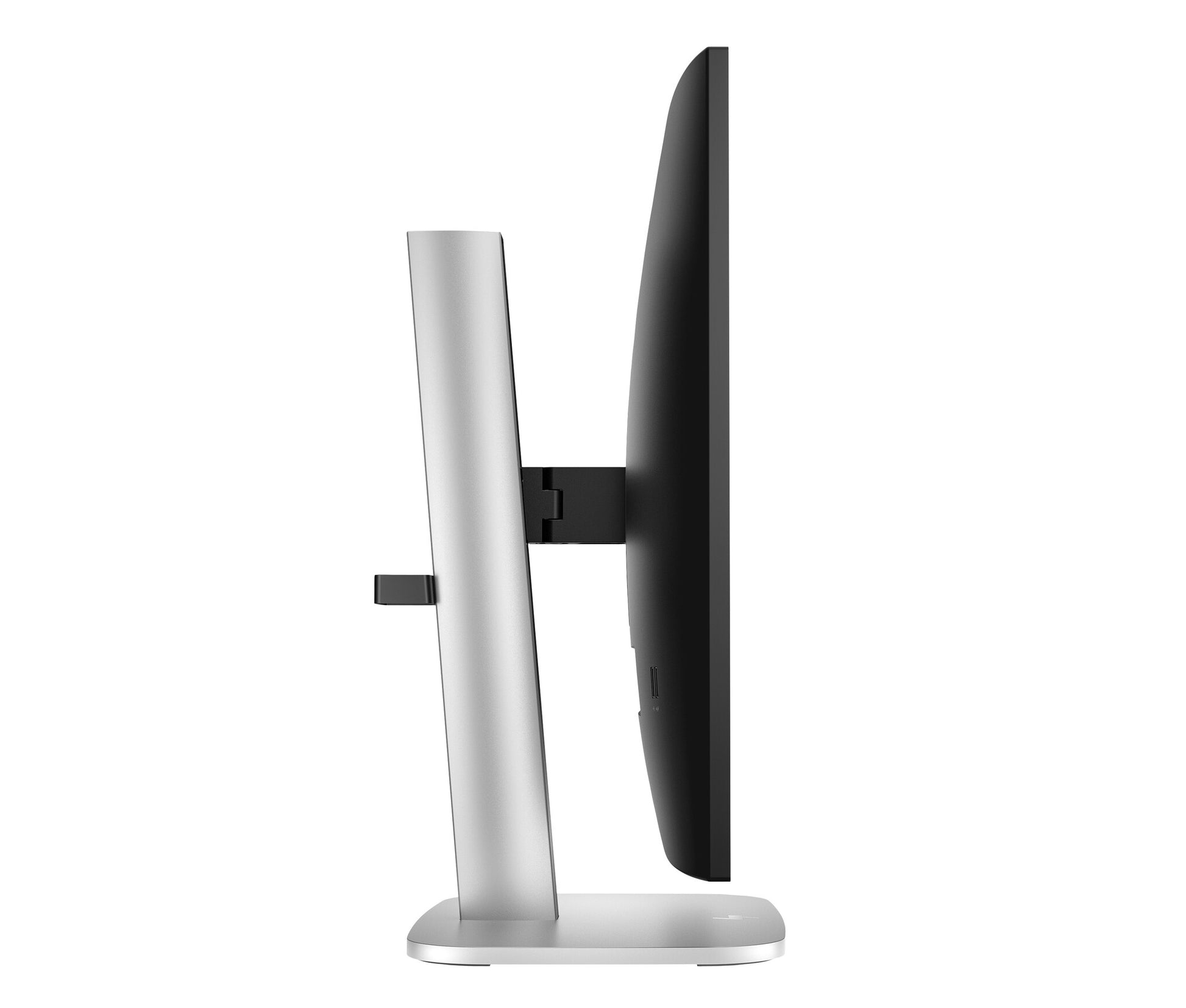

Find all-day comfort with 4-way adjustability and Ergonomic Setup Guide[5] for the optimal monitor position. HP Eye Ease reduces blue light without impacting color.
Thoughtfully designed with at least 90% recycled plastic content and 90% recycled aluminum in the stand[6].

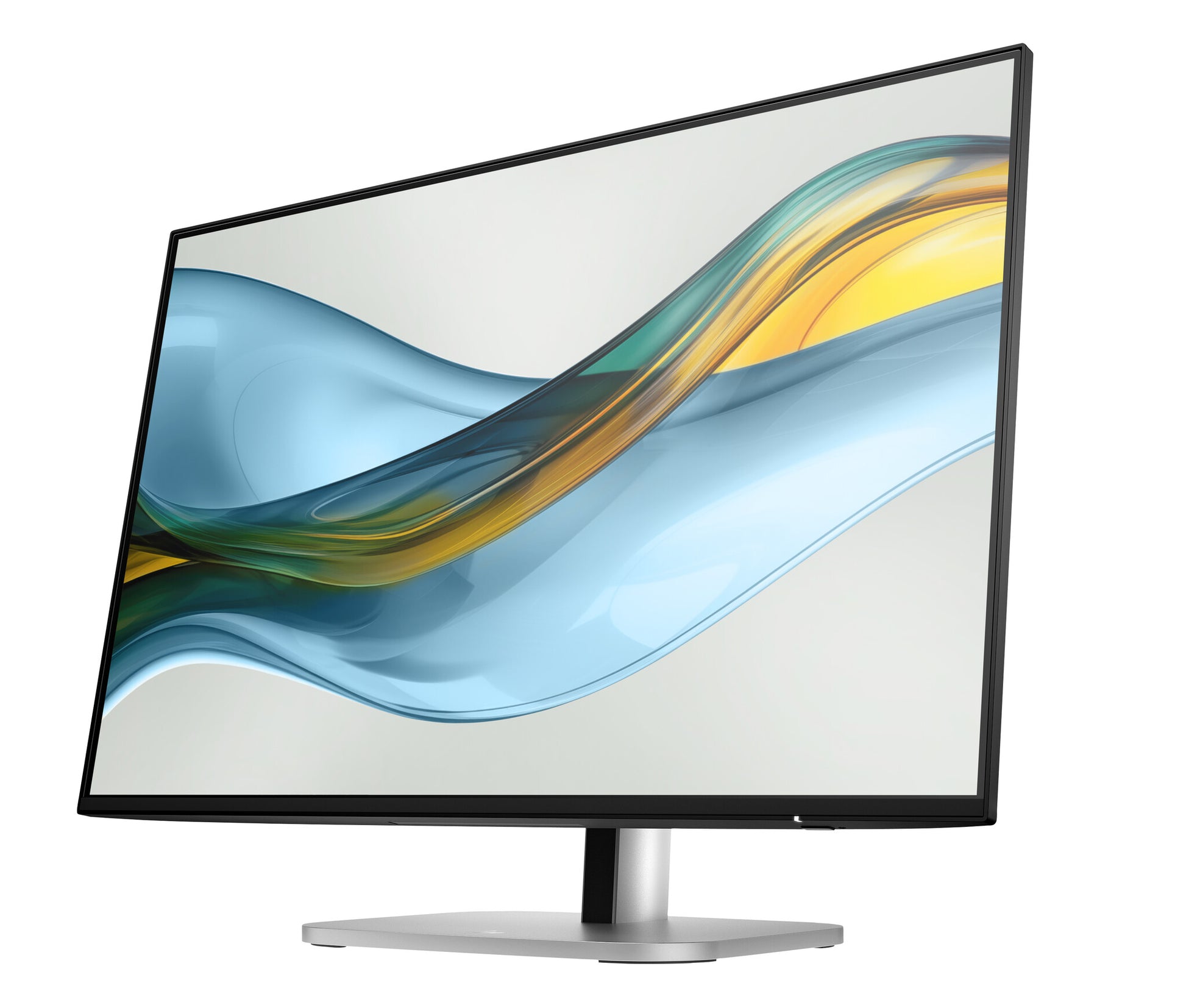

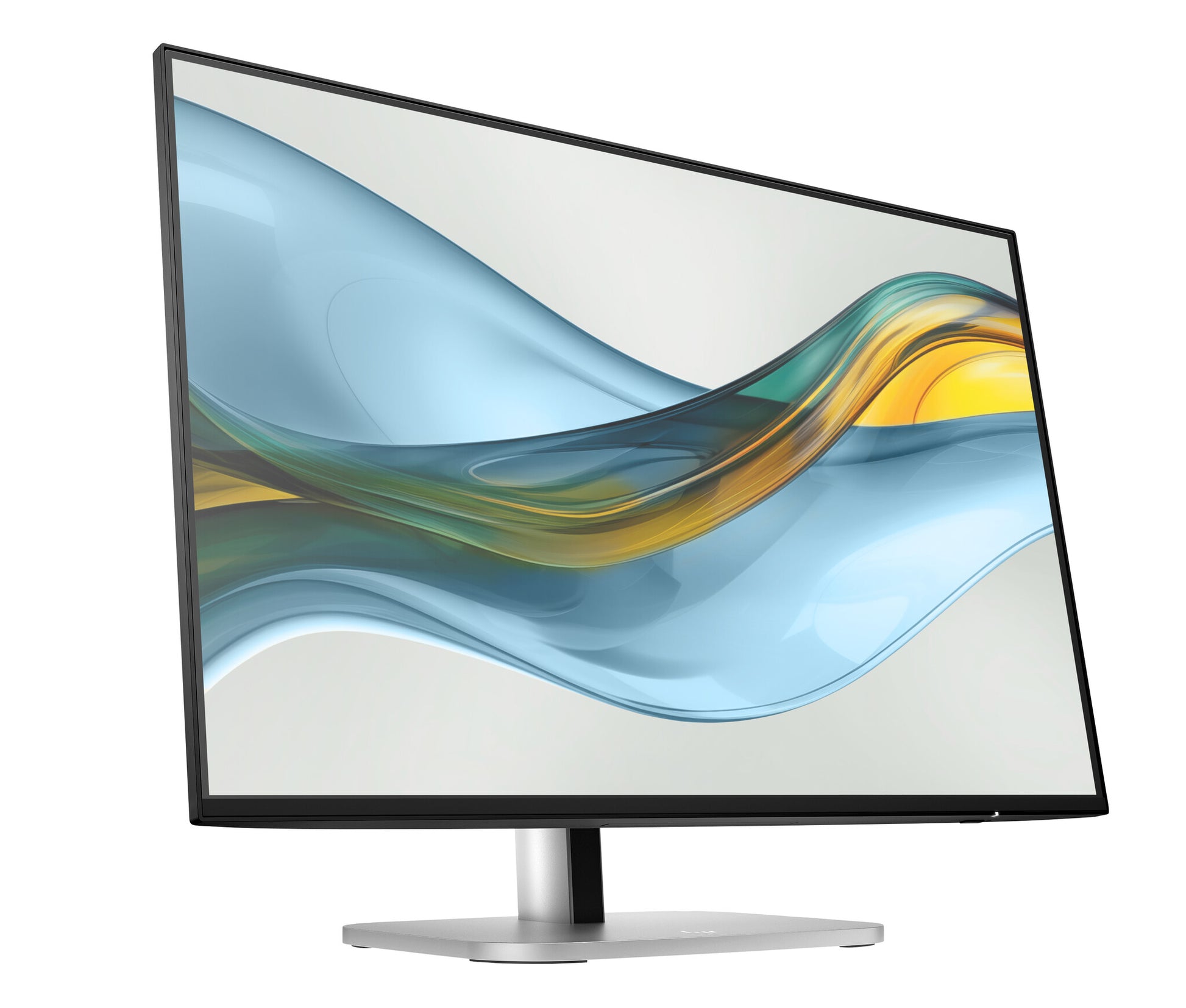

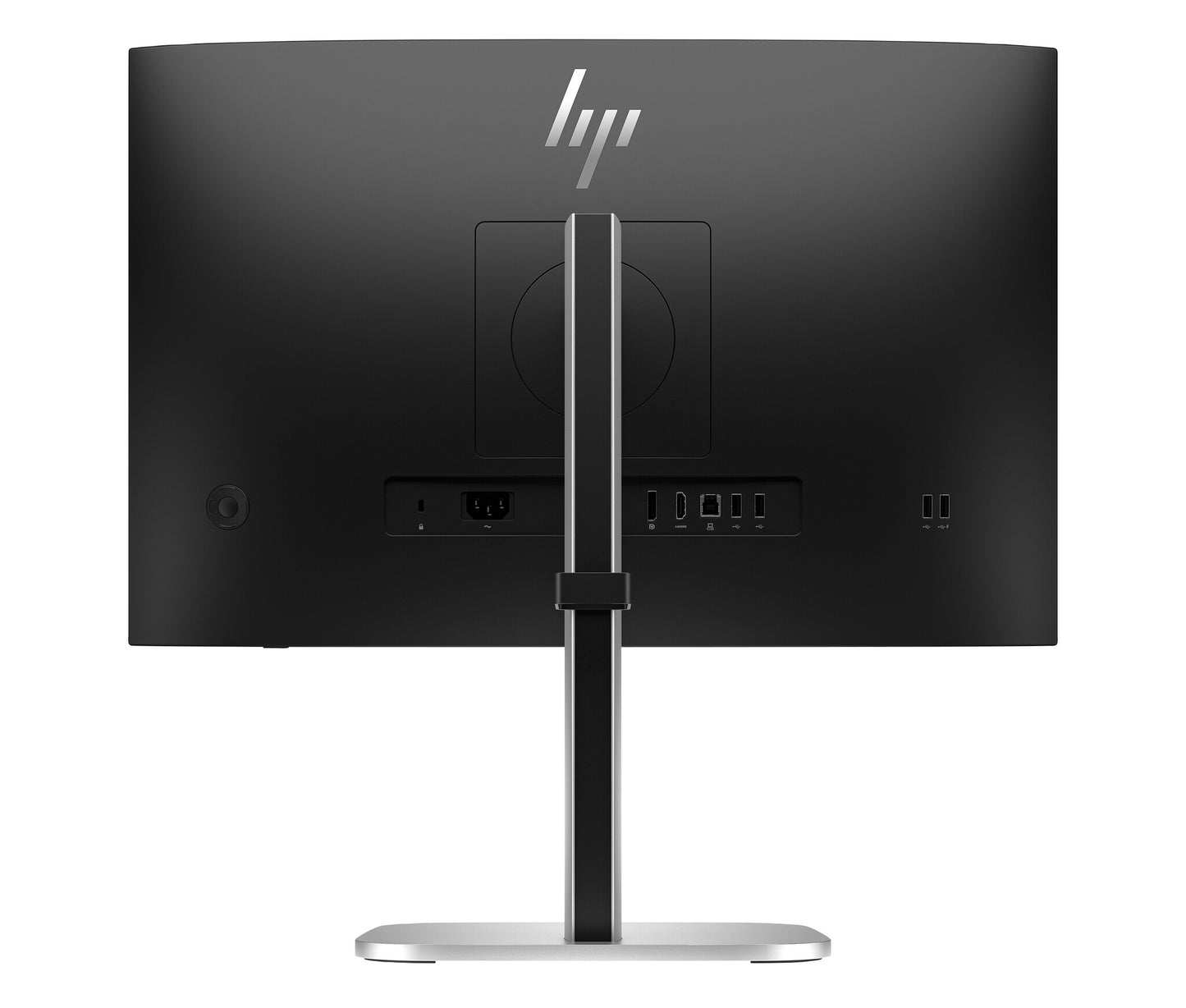

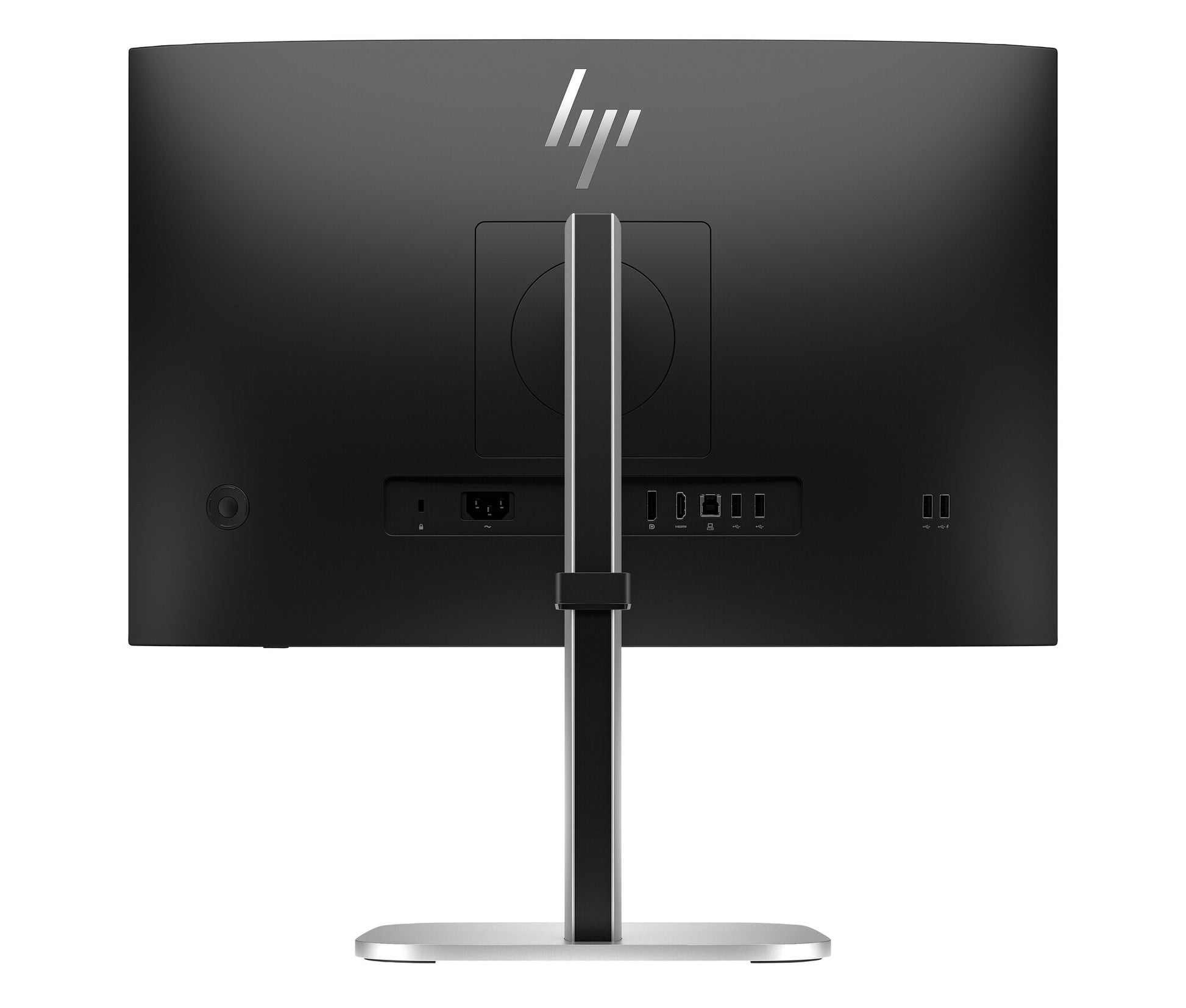

Series 5 Pro 24 inch WUXGA Monitor - 524pn
Reimagine what work looks like Get more out of your workday with the HP Series 5 Pro 24” WUXGA Monitor. Create the setup that works for the way you work, wherever you work, with refined visual clarity and adjustable comfort built into a sleek, modern design.
Display
Display bezel technology
Micro-Edge
Display brightness
350 cd/m²
sRGB coverage (typical)
100%
Colour gamut
100%
Colour gamut standard
sRGB
Colour depth
8 bit
Surface hardness
3H
Haze rate
25%
Display diagonal (metric)
61 cm
Viewable size, vertical
32.4 cm
Viewable size, horizontal
51.8 cm
Vertical scan range
50 - 100 Hz
Horizontal scan range
30 - 130 kHz
Pixel density
94 ppi
Pixel pitch
0.27 x 0.27 mm
Display number of colours
16.7 million colours
Viewing angle, vertical
178°
Viewing angle, horizontal
178°
Maximum refresh rate
100 Hz
Contrast ratio (dynamic)
10000000:1
Contrast ratio (typical)
1500:1
Aspect ratio
16:10
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA)
Screen shape
Flat
Anti-glare screen
Yes
Display surface
Matt
Response time measurement type
GTG (Gray to Gray)
Response time
5 ms
Display brightness (typical)
350 cd/m²
Backlight type
Edge LED
LED backlight
Yes
Panel type
IPS
HD type
WUXGA
Touchscreen
No
Display technology
LCD
Native aspect ratio
16:10
Display resolution
1920 x 1200 pixels
Display diagonal
61 cm (24")
Performance
HP segment
Business
Low Blue Light technology
Yes
Flicker-free technology
Yes
AMD FreeSync
No
NVIDIA G-SYNC
No
Multimedia
Built-in camera
No
Built-in speaker(s)
No
Design
Certification
BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; FCC; GS Mark; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; WEEE; ISC; California Energy Commission (CEC); WW application; UAE; TGM; Ukraine certificates; NRCS; PSE; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Works with Chromebook certified; Korea MEPS; CEL Grade 2; Australian-New Zealand DoC; EMF
Country of origin
China, Vietnam
Feet colour
Silver, Black
Colour name
Jet black
Product colour
Black
Market positioning
Business

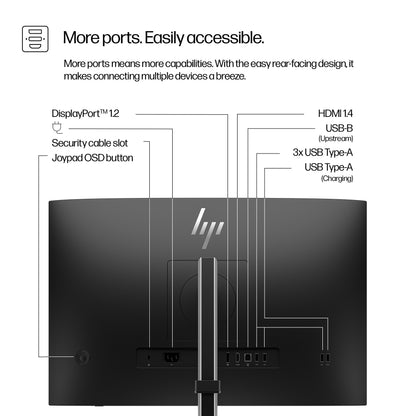

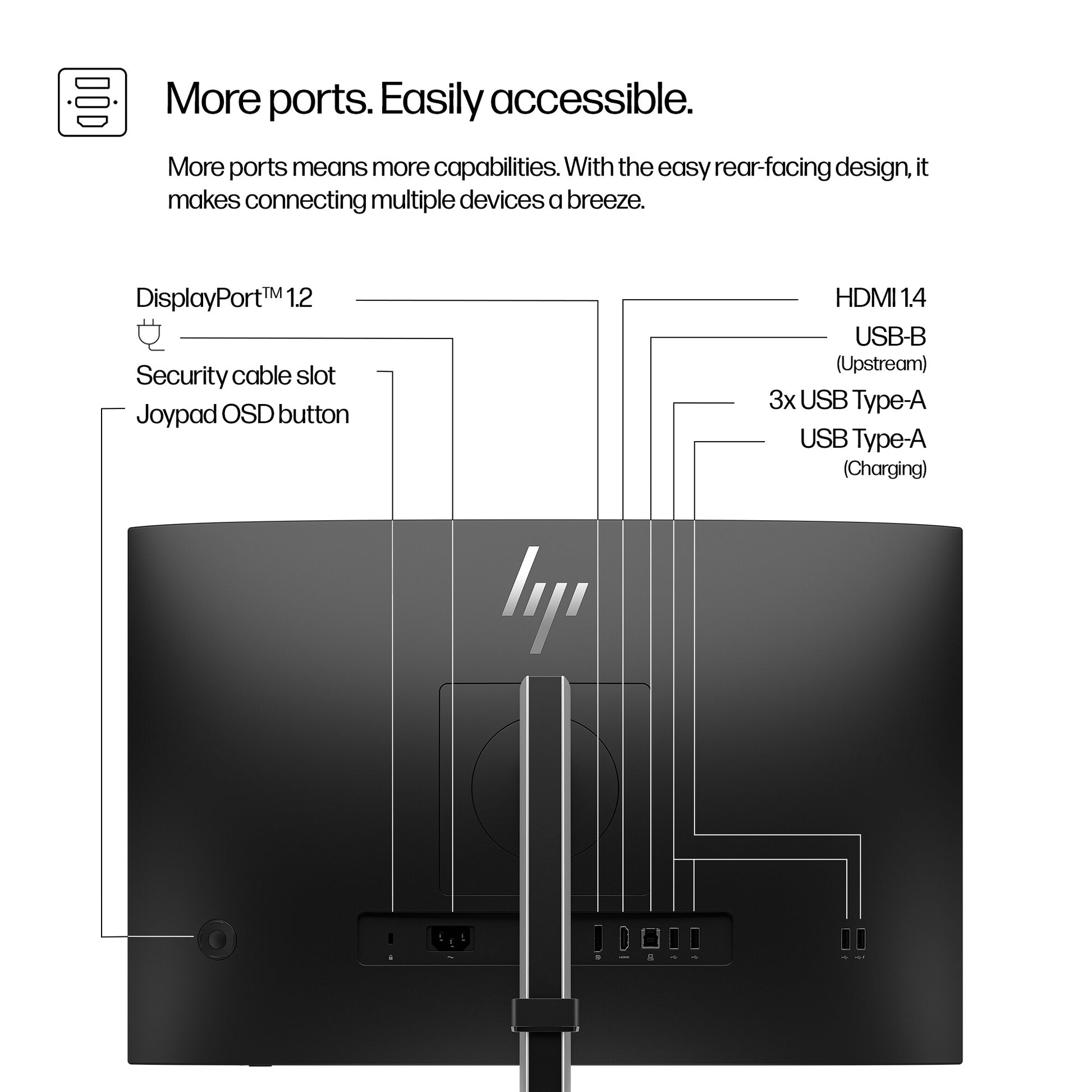

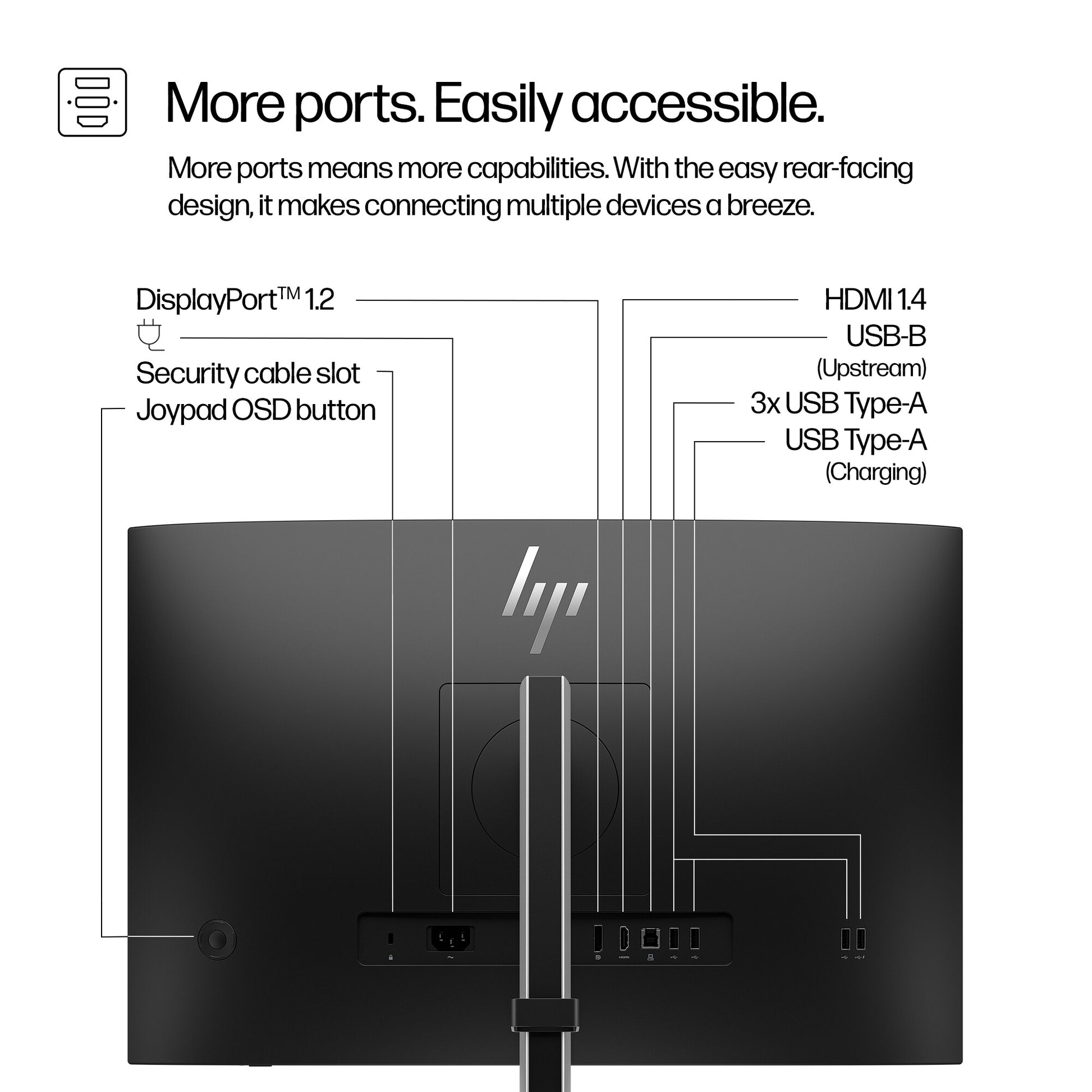

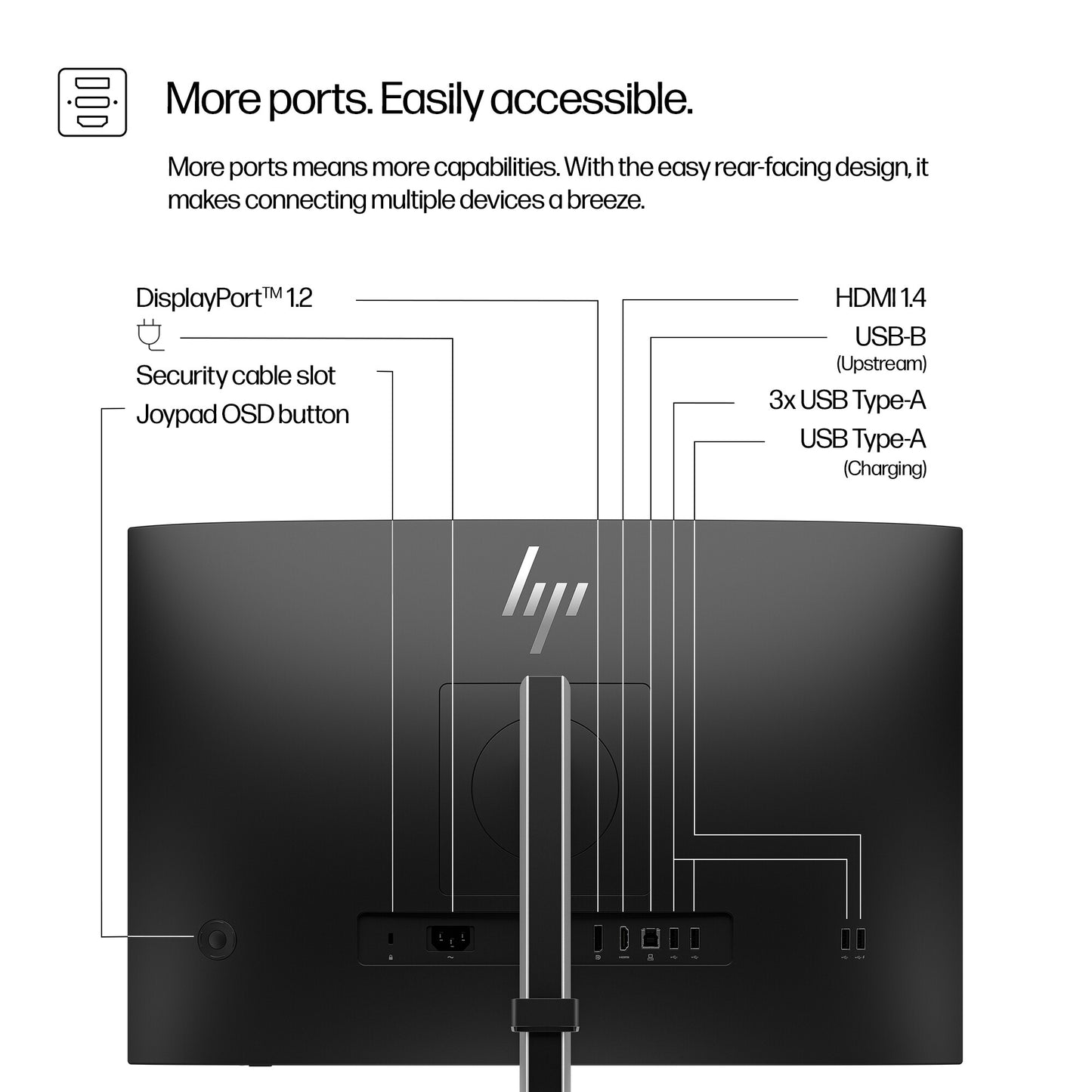

Ports & interfaces
HDCP
Yes
DisplayPort version
1.2
DisplayPorts quantity
1
HDMI version
1.4
HDMI ports quantity
1
HDMI
Yes
USB Type-A downstream ports quantity
4
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub
Yes

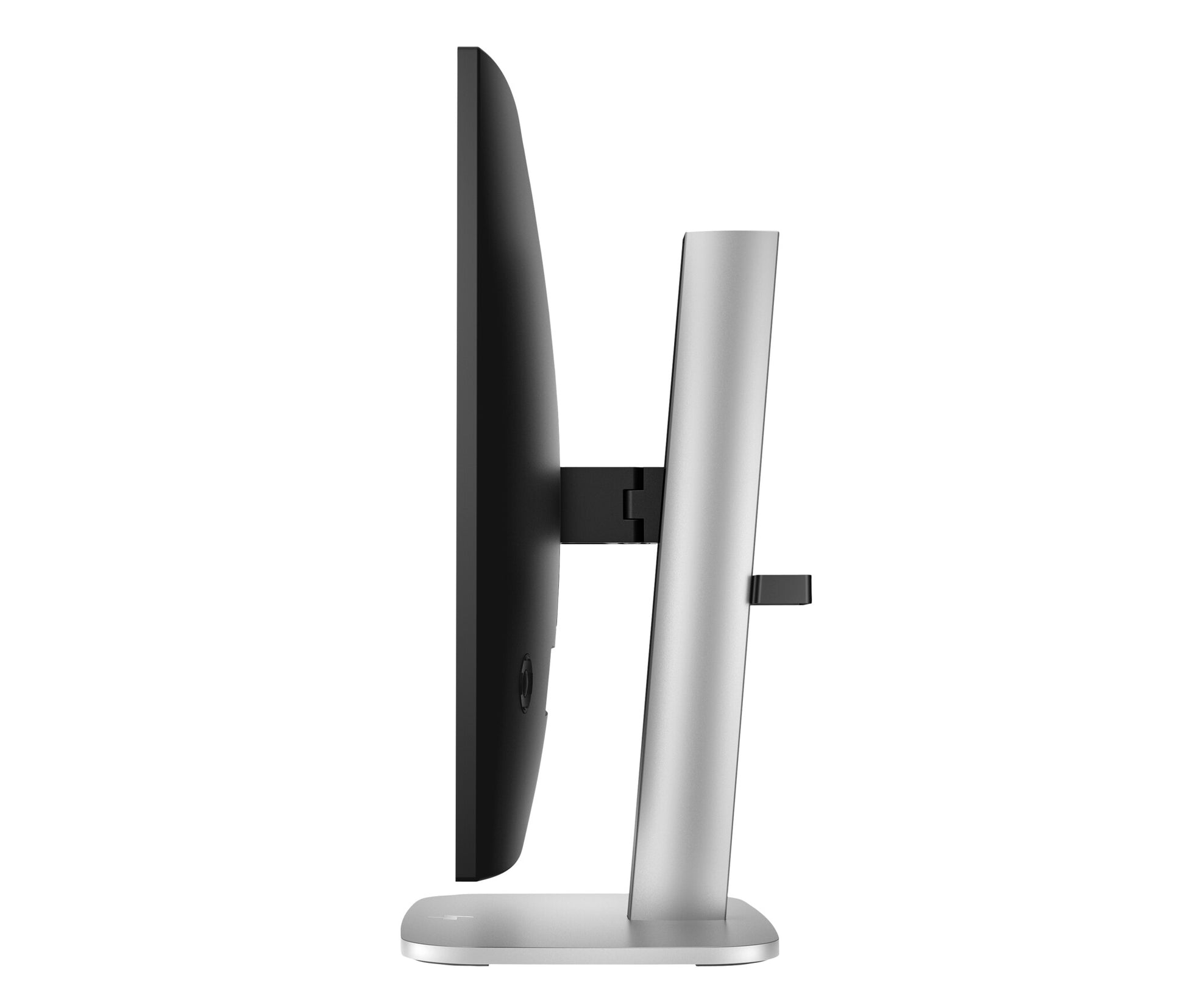

Ergonomics
On Screen Display (OSD)
Yes
Tilt angle range
-5 - 23°
Tilt adjustment
Yes
Swivel angle range
-45 - 45°
Swivelling
Yes
Pivot angle
-90 - 90°
Pivot
Yes
Adjustable height (max)
15 cm
Height adjustment
Yes
Cable lock slot
Yes
Panel mounting interface
100 x 100 mm
VESA mounting
Yes
Power
Energy efficiency scale
A to G
Power supply type
Internal
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Power consumption (off)
0.3 W
Power consumption (max)
58 W
Power consumption (standby)
0.5 W
Power consumption (typical)
22 W
Energy efficiency class (HDR)
C
Energy efficiency class (SDR)
C
Operational conditions
Non-operating altitude
0 - 12192 m
Operating altitude
0 - 5000 m
Storage relative humidity (H-H)
20 - 80%
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
5 - 35 °C
Packaging content
Bundled software
HP Display Center; HP Client Management Script Library
Quick start guide
Yes
Cables included
HDMI, DisplayPort, USB Type-A to USB Type-B, AC

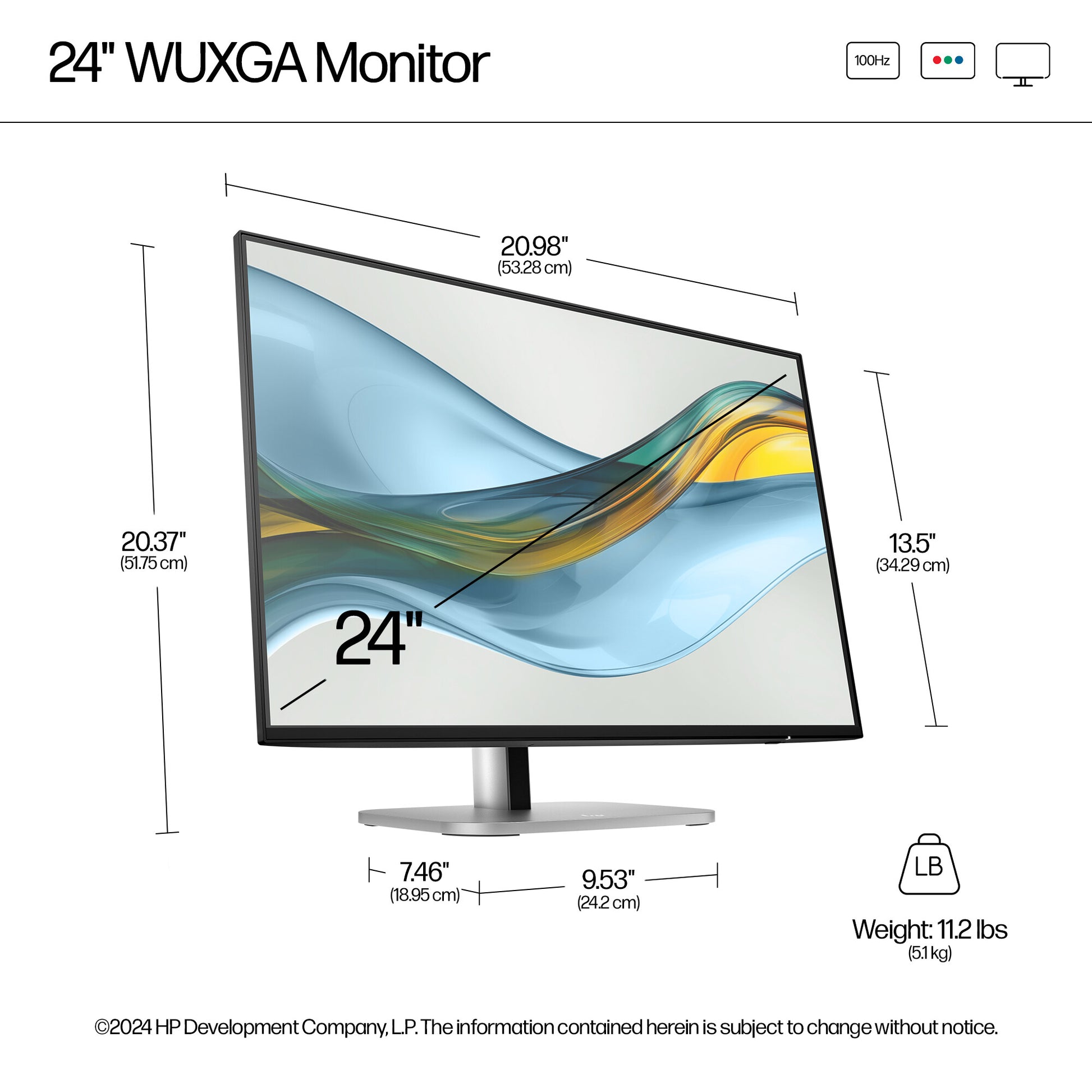

Weight & dimensions
Height (without stand)
342.9 mm
Depth (without stand)
47 mm
Width (without stand)
532.8 mm
Weight (with stand)
5.1 kg
Height (with stand)
517.5 mm
Depth (with stand)
189.5 mm
Width (with stand)
532.8 mm
Packaging data
Warranty card
Yes
Package type
Box
Package weight
7.4 kg
Package height
411 mm
Package depth
140 mm
Package width
621 mm
Sustainability
Sustainability certificates
ENERGY STAR, EPEAT, TCO
general_information_attribute_container_name
attribute_product_family_name
Series 5
Carbon footprint
Total carbon footprint
190
Carbon emissions (Manufacturing)
153
Carbon emissions (Logistics)
3
Carbon emissions (End-of-Life)
2
Total carbon emissions (w/o Use phase)
34
Brand-specific features
HP GTIN (EAN/UPC) with options
(ABB) 197961404999; (ABU) 197961405026
HP GTIN (EAN/UPC)
197961404999, 197961405026
Technical details
Box contents
Monitor; DisplayPort™ cable; HDMI cable; Warranty card; USB Type-B to A cable; Quick Setup Poster; AC power cord
