Ernitec

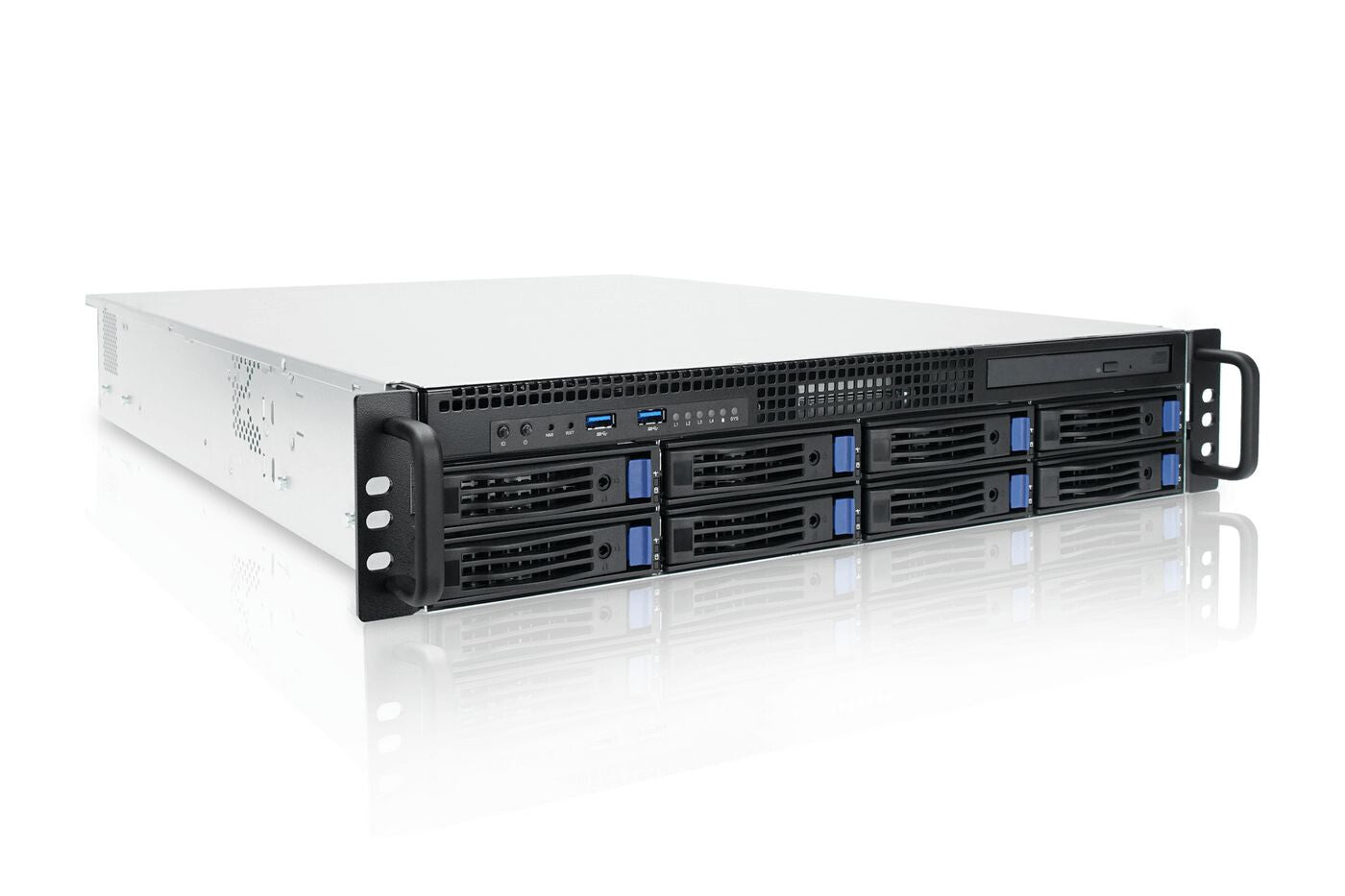

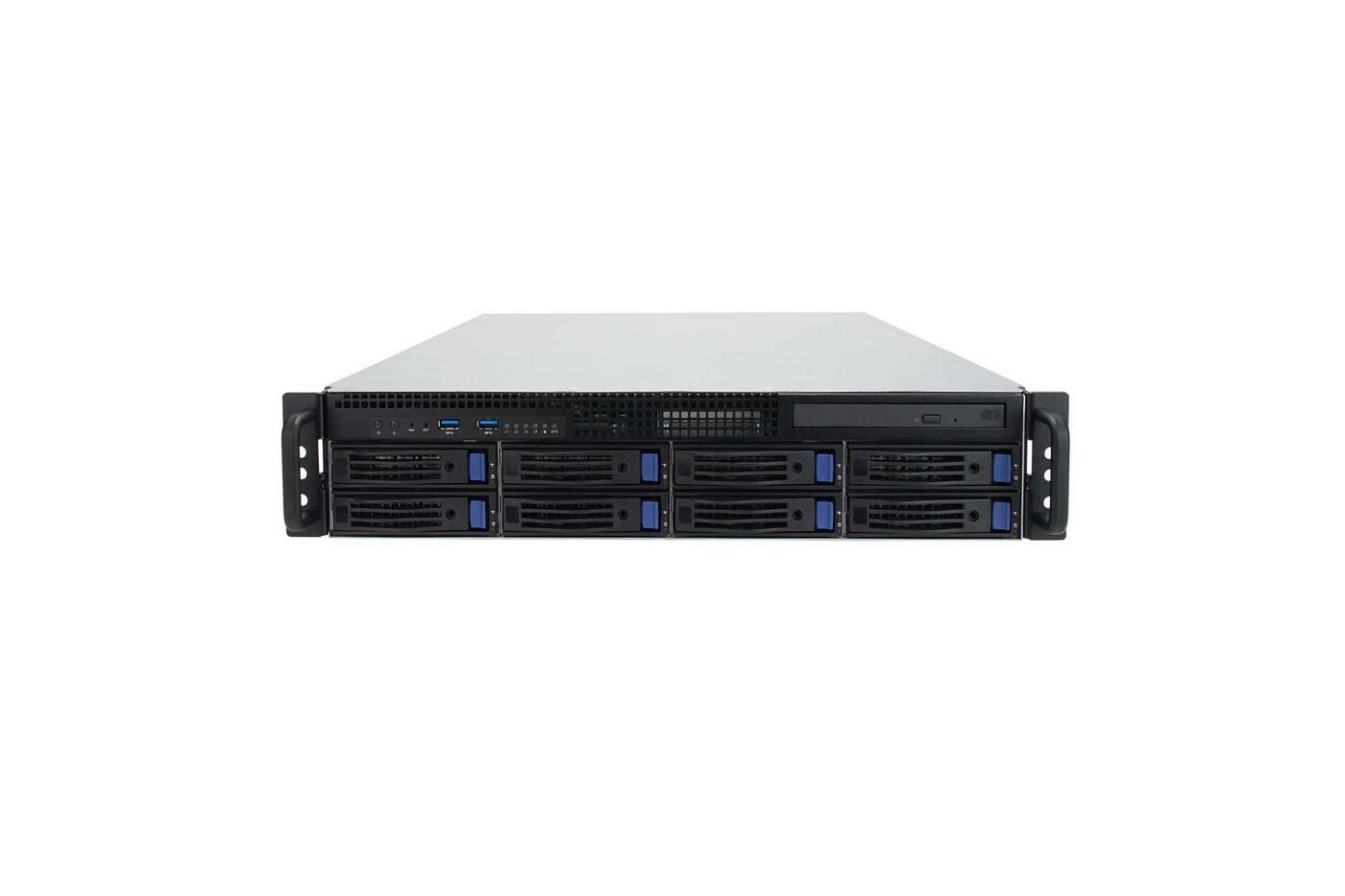

Ernitec SR-2X58R-A4-HW-WS server 500 GB Rack 6357P 32 GB DDR5-SDRAM 800 W Windows Server 2025

Ernitec SR-2X58R-A4-HW-WS server 500 GB Rack 6357P 32 GB DDR5-SDRAM 800 W Windows Server 2025

£6,580.67 GBP
£6,580.67 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

SR-2X58R-A4-HW-WS

Low stock: 1 left

  • Short depth: 58CM
  • Xeon 6357P CPU - 3.0-5.4GHz - 8C/16T
  • 2x 500GB SSD RAID1 OS drive
  • 2x 16GB DDR5 dual channel memory
  • Nvidia A400 GPU with 4x mDP outputs
  • Dual 1GbE NICs + dedicated IPMI NIC
  • Support for up to 8x 3.5" HDDs with HW RAID
  • Windows Server 2025 Standard preinstalled
  • Rails included
  • Suitable for up to 100 4MP cameras @25 FPS
  • To reduce waste only Euro CEE 7 to C13 power cables are included.
2U 8 Bay Server with Xeon 6357P, 32GB RAM, 2x500GB SSD, 9560 RAID, Nvidia A400, dual 1GbE, IPMI, TPM, dual 800W PSU, Windows Server 2025 Std.

2U 8 Bay Server
This powerful 2U server is built around the Intel Xeon 6357P processor and equipped with 32GB RAM for reliable performance in demanding workloads. It includes dual 500GB SSDs managed by a 9560 RAID controller for enhanced data protection and speed. Networking options include dual 1GbE ports, while IPMI provides robust remote management capabilities and TPM ensures secure system integrity. Redundant 800W power supplies deliver high availability, and the system comes pre-installed with Windows Server 2025 Standard—making it ideal for enterprise environments requiring stability, scalability, and secure operation.

Processor
Processor manufacturer Intel
Processor model 6357P
Performance-core base frequency 3 GHz
Performance-core Max Turbo Frequency 5.4 GHz
Performance cores 8
Processor cores 8
Processor threads 16
Processor socket LGA 1700
Cache internal 24 MB
Memory
Internal memory 32 GB
Internal memory type DDR5-SDRAM
Memory layout (slots x size) 2 x 16 GB
ECC No
Memory data transfer rate 4400 MT/s
Maximum internal memory 128 GB
Storage
Total storage capacity 500 GB
Number of HDDs supported 8
Supported HDD sizes 2.5"
Number of SSDs installed 2
SSD capacity 500 GB
SSD interface SATA III
SSD size 2.5"
Supported storage drive interfaces M.2
RAID controller cache 4 GB
Graphics
Discrete graphics card Yes
Discrete graphics card memory 4 GB
On-board graphics card Yes
On-board graphics card model Aspeed AST2600
On-board graphics card 4K support Yes
Number of displays supported (on-board graphics) 1
Network
Number of LAN controllers 2
LAN controller Intel® I210-AT
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes

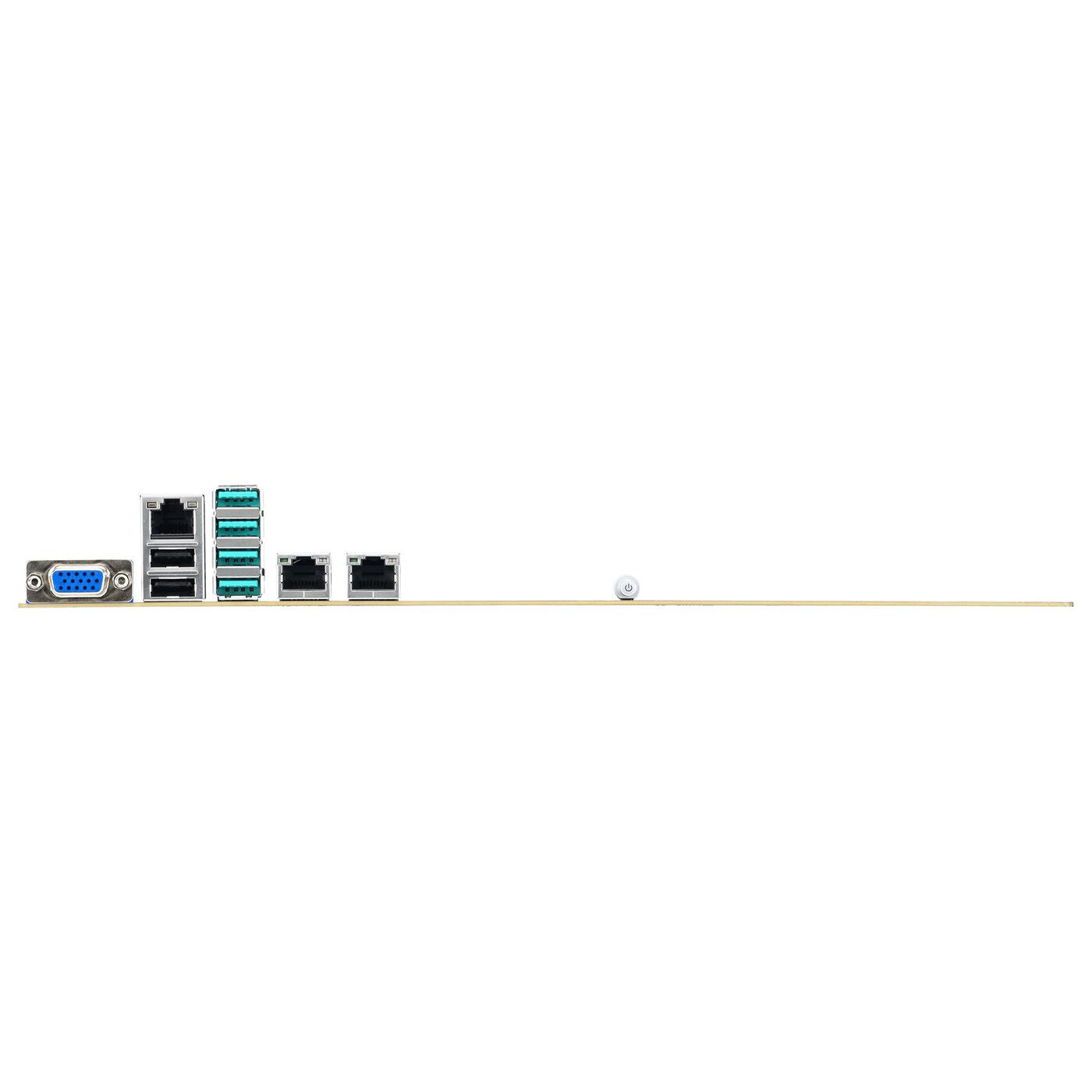

Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB 2.0 ports quantity 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Mini DisplayPorts quantity 4
VGA (D-Sub) ports quantity 1
Expansion slots
PCI Express x8 (Gen 4.x) slots 2
PCI Express x16 (Gen 5.x) slots 2
Design
Chassis type Rack
Cooling type Active
Product colour Black
Rack rails Yes
Rack mounting Yes
Performance
Trusted Platform Module (TPM) version 2.0
Trusted Platform Module (TPM) Yes
Software
Operating system installed Windows Server 2025
Operating system language English
Power
Power supply 800 W
Number of main power supplies 2
Weight & dimensions
Width 590 mm
Height 190 mm
Depth 830 mm
Weight 13 kg
Package width 590 mm
Package depth 830 mm
Package height 190 mm
Package weight 16 kg
Other features
Warranty period 3 year(s)
Integrated LAN Yes
Integrated BMC with IPMI Yes
Dimensions (WxDxH) 444.2 x 572.7 x 87 mm
RAID controller type Hardware (Storage drives)
