D-Link

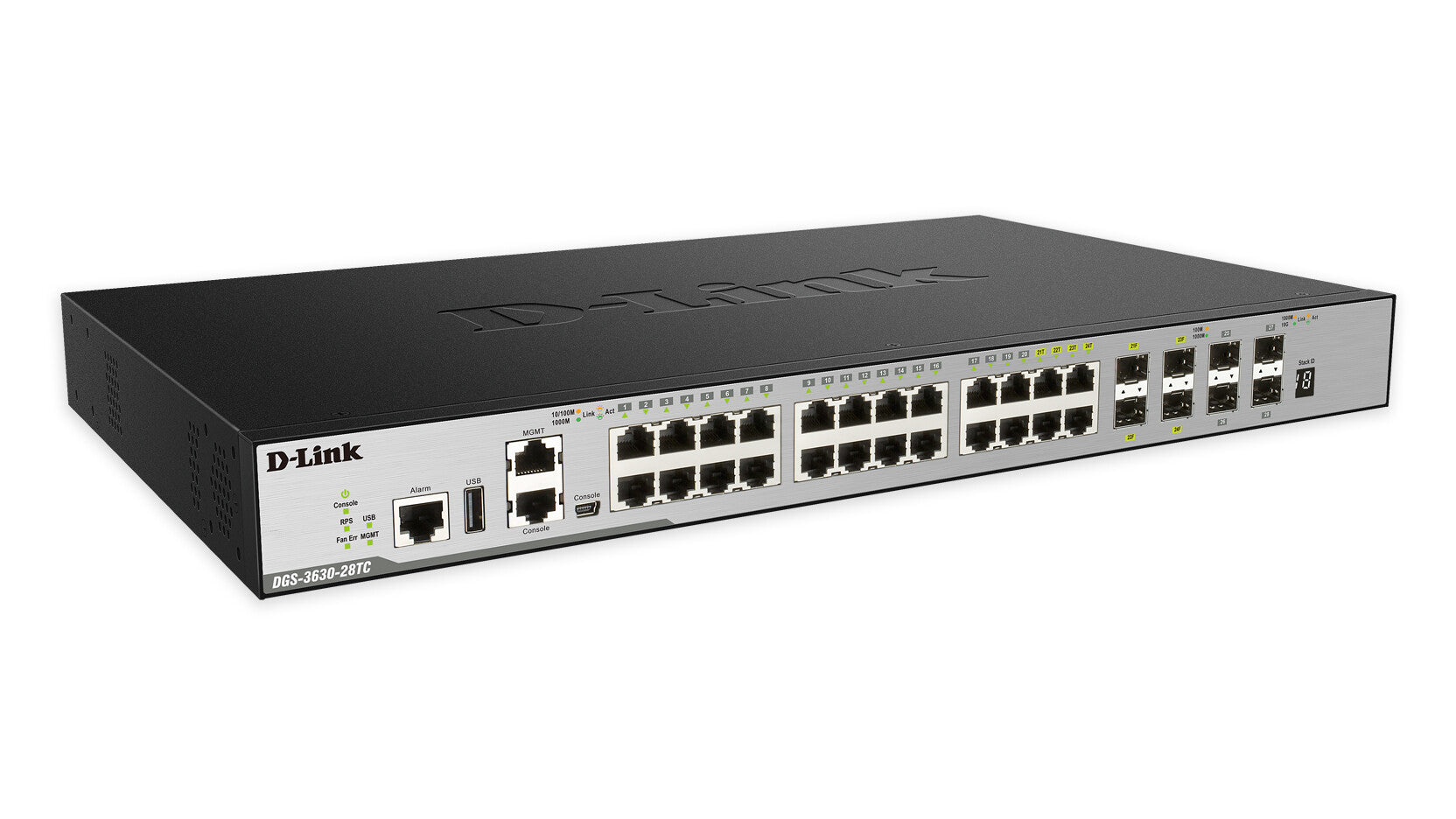

D-Link DGS-3630-28TC network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

D-Link DGS-3630-28TC network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

£1,809.85 GBP
£1,809.85 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

DGS-3630-28TC

Low stock: 1 left

  • Managed L3 Web-based management SNMP, NTPv3/v4, Telnet
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 20 Console port: RJ-45/Mini-USB
  • 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 68000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included
28-Port Layer 3 Stackable Managed Gigabit Switch, w / 4 10GbE Ports

The DGS-3630-28TC Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. It features 20 x 10/100/1000 ports, 4 x 10/100/1000 or SFP combo ports, and 4 x 10GbE SFP+ ports. This switch supports core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, OAM, and robust security features. With a simple upgrade it can also support full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Traffic classification Yes
ARP inspection Yes
System event log Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 20
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 20
Installed SFP+ modules quantity 4
Combo SFP ports quantity 4
Console port RJ-45/Mini-USB
USB 2.0 ports quantity 1
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3z
10G support Yes
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Yes
Full duplex Yes
Routing entries 16000
Spanning tree protocol Yes
Link aggregation Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs 4094
Data transmission
MAC address table 68000 entries
Switching capacity 128 Gbit/s
Throughput 95.24 Mpps
Number of queues 8
Number of IP interfaces 256
Jumbo frames support Yes
Jumbo frames 12000
Packet buffer memory 4 MB
Security
DHCP features DHCP server, DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
Loop protection Yes
BPDU filtering/protection Yes
Authentication Guest VLAN, Port-based authentication
SSH/SSL support Yes
Security algorithms 802.1x RADIUS, SSH, SSH-2, SSL/TLS
MAC address filtering Yes
Multicast features
Multicast support Yes
Protocols
Management protocols SNMP, NTPv3/v4, Telnet
Supported network protocols IPv4/v6
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
LED indicators Yes
Number of fans 2 fan(s)
Safety cUL, CB, CE, CCC, BSM
Electromagnetic compatibility CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Performance
Virtual stacking (units) 32
Noise level 52.7 dB
Mean time between failures (MTBF) 300190 h
Power
Power supply included Yes
Redundant power supply (RPS) support Yes
Number of power supply units 1
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (max) 42.4 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -5 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 95%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 145 BTU/h
Weight & dimensions
Width 441 mm
Depth 260 mm
Height 44 mm
Weight 3.74 kg
