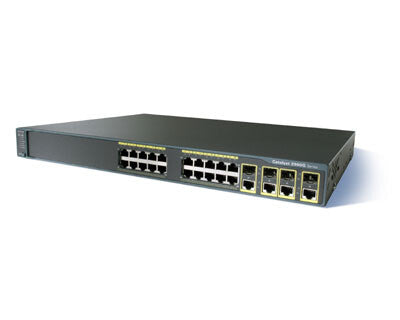

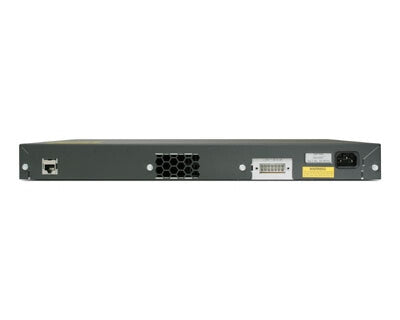

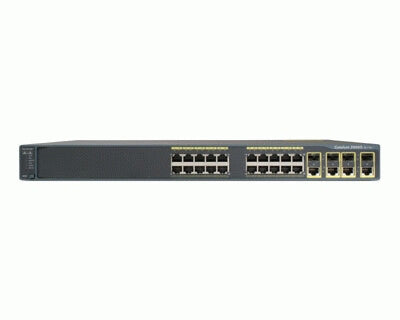

Cisco Catalyst 2960G-24TC-L Managed L2 Grey
Cisco Catalyst 2960G-24TC-L Managed L2 Grey
Couldn't load pickup availability
SKU:WS-C2960G-24TC-L-RFB
Low stock: 2 left
- Managed L2 Web-based management Telnet, RMON 2, RMON 1, SNMP 1, SNMP 3, SNMP 2c, TFTP
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 8000 entries Switching capacity: 32 Gbit/s
- Access Control List (ACL)
Cisco® Catalyst® 2960 Series Intelligent Ethernet Switches are a new family of fixed-configuration standalone devices that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960 Series offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge.
The Cisco Catalyst 2960 Series offers:
- Intelligent features at the network edge, such as sophisticated access control lists (ACLs) and enhanced security.
- Dual-purpose uplinks for Gigabit Ethernet uplink flexibility, allowing use of either a copper or a fiber uplink-each dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time.
- Network control and bandwidth optimization using advanced QoS, granular rate limiting, ACLs, and multicast services.
- Network security through a wide range of authentication methods, data encryption technologies, and network admission control based on users, ports, and MAC addresses.
- Easy network configuration, upgrades, and troubleshooting using Cisco Network Assistant software.
- Auto-configuration for specialized applications using Smartports.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | DC-in jack |
| Combo SFP ports quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 20 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| 10G support | No |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Protocols | |
|---|---|
| Supported network protocols | ACL, ARP, DiffServ, IGMP, IP, RADIUS, SSH, TCP, UDP, DHCP, TFTP |
| Management protocols | Telnet, RMON 2, RMON 1, SNMP 1, SNMP 3, SNMP 2c, TFTP |
| Design | |
|---|---|
| Product colour | Grey |
| Stackable | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 313828 h |
| Flash memory | 32 MB |
| Internal memory | 64 MB |
| general_information_attribute_container_name | |
|---|---|
| attribute_product_family_name | Catalyst |
| Power | |
|---|---|
| Power consumption (typical) | 75 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.5 kg |
