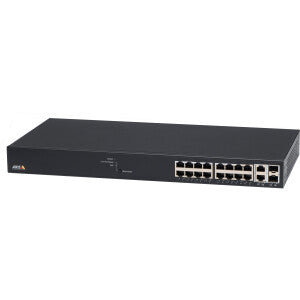

Axis 5801-693 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Axis 5801-693 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Regular price
£1,175.16 GBP
Regular price
Sale price
£1,175.16 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
SKU:5801-693
Low stock: 4 left
- 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 240 W; Gigabit switch; Intuitive graphic topology for system overview
16xRJ-45, 2xSFP, 8K MAC, 36 Gbit/s, 26.8 Mpps, 100-240V, 50/60Hz, 442x211x44mm, 3kg, Black
AXIS T8516 PoE+ Network Switch is an easy to install 16-port managed Gigabit switch - a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. AXIS T8516 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 16 PoE cameras.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Fiber optic connector | SFP |
| Fiber ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Network | |
|---|---|
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Throughput | 26.8 Mpps |
| Switching capacity | 36 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Password protection | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP snooping |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU |
| Design | |
|---|---|
| Certification | EN 55032 Class A, EN 55024, FCC Part 15 Subpart B Class A, VCCI Class A, ICES-003 Class A, KCC, RCM, IEC/EN/UL 60950-1, S-mark (Argentina), EAC, CE, ANATEL, JATE |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3 kg |
| Height | 44 mm |
| Depth | 211 mm |
| Width | 442 mm |
| Packaging data | |
|---|---|
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
