Keyboard port type: USB, PS/2 Mouse port type: USB, PS/2 Video port type: VGA
2048 x 1536 pixels
Housing material: Metal
Hot keys
DC 6.6 W
OSD, PS/2, USB, 2048 x 1536px, DDC2B, 6.6W, 2.10kg

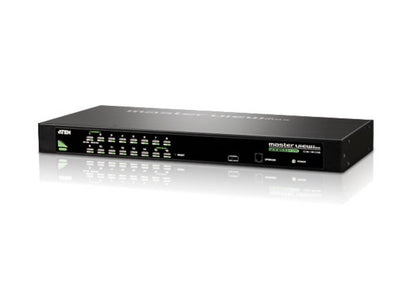

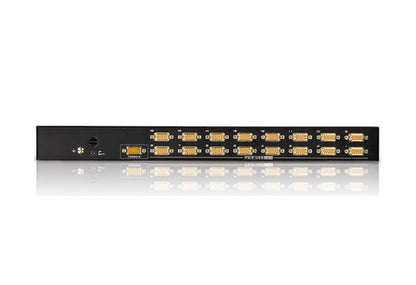

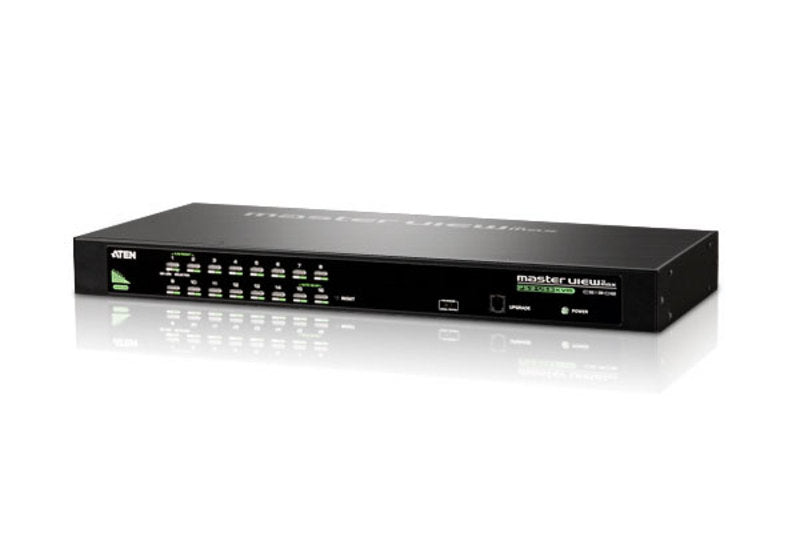

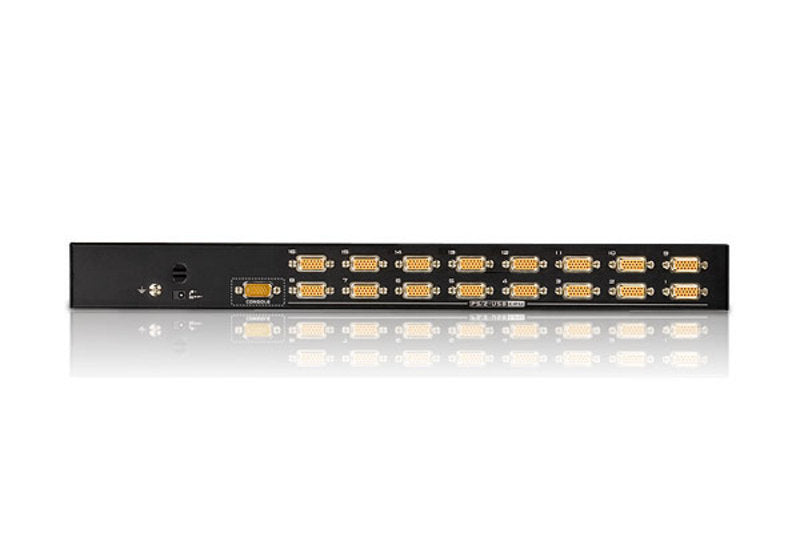

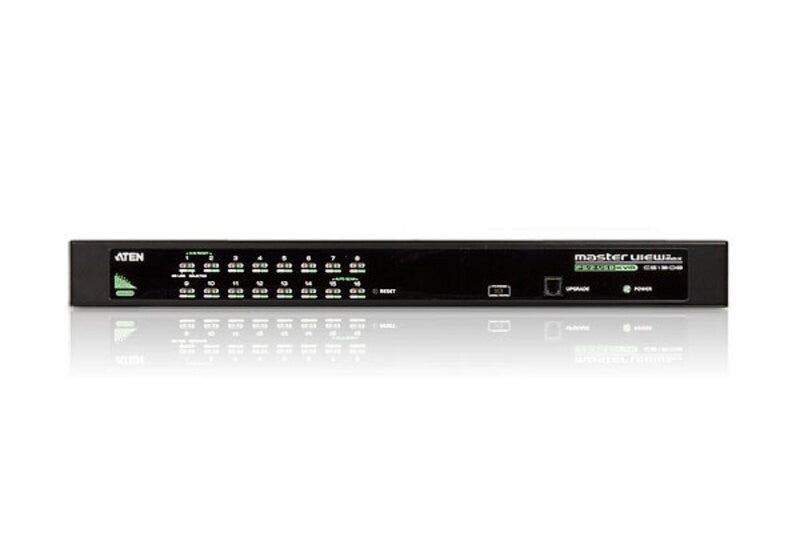

The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
Features: -One USB-PS/2 console controls 16 computers -Cascade up to 2 levels - control up to 256 computers -Dual Interface - supports computers with PS/2 or USB keyboards and mice -Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun -Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports -Auto PS/2 and USB interface detection -USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere -Superior video quality - up to 2048 x 1536; DDC2B -Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu -Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each -Auto Scan feature for monitoring user-selected computers -Hot pluggable - add or remove computers without having to power down the switch -Buzzer on/off via hotkey and OSD -Firmware upgradeable -No software installation required -Designed for desktop or rack mount (19" system rack, 1U)
Package Contents 1x CS1316 KVM Switch with Rack Mount Kit 1x Console cable 1x Firmware Upgrade cable 1x Foot Pad set (4 pads) 1x Power Adapter (6ft. AC Models) 1x User Manual 1x Quick Start Guide
Ports & interfaces
Console ports
VGA (D-Sub)
Video port type
VGA
Mouse port type
USB, PS/2
Keyboard port type
USB, PS/2
Number of computers controlled
256
Performance
Firmware upgradeable
Yes
Hot-Plug support
Yes
DDC2B support
Yes
Scan interval
1,255 s
Maximum resolution
2048 x 1536 pixels
Design
Hot keys
Yes
Push button
Yes
LED indicators
Yes
Cascadable
Yes
Housing material
Metal
Product colour
Black
Rack capacity
1U
Rack mounting
Yes
Display
On Screen Display (OSD)
Yes
Built-in display
No
Power
Power consumption (typical)
6.6 W
Input voltage
5.3 V
Power source
DC
System requirements
Other operating systems supported
Yes
Mac operating systems supported
Yes
Linux operating systems supported
Yes
Windows operating systems supported
Windows 2000, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
