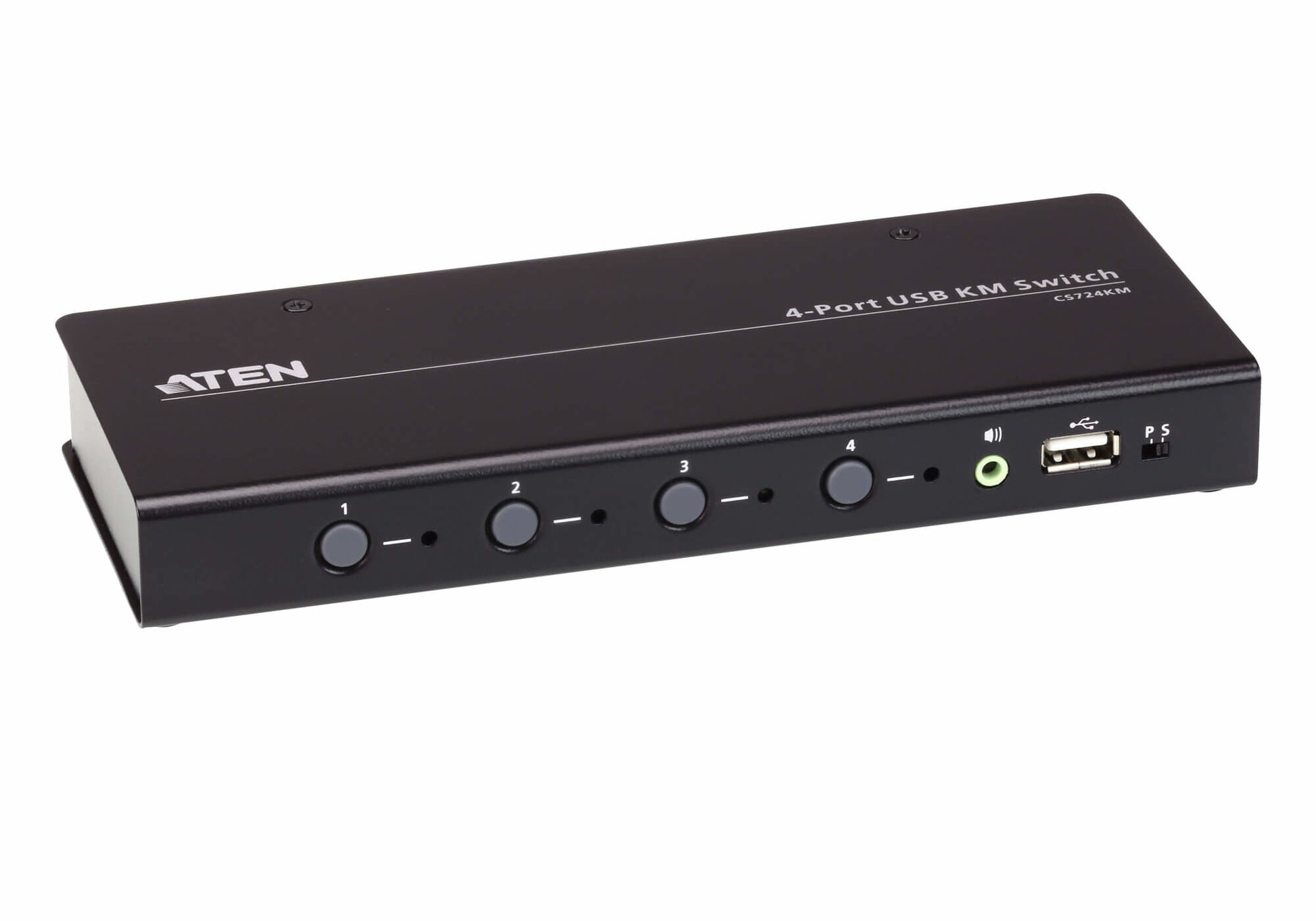

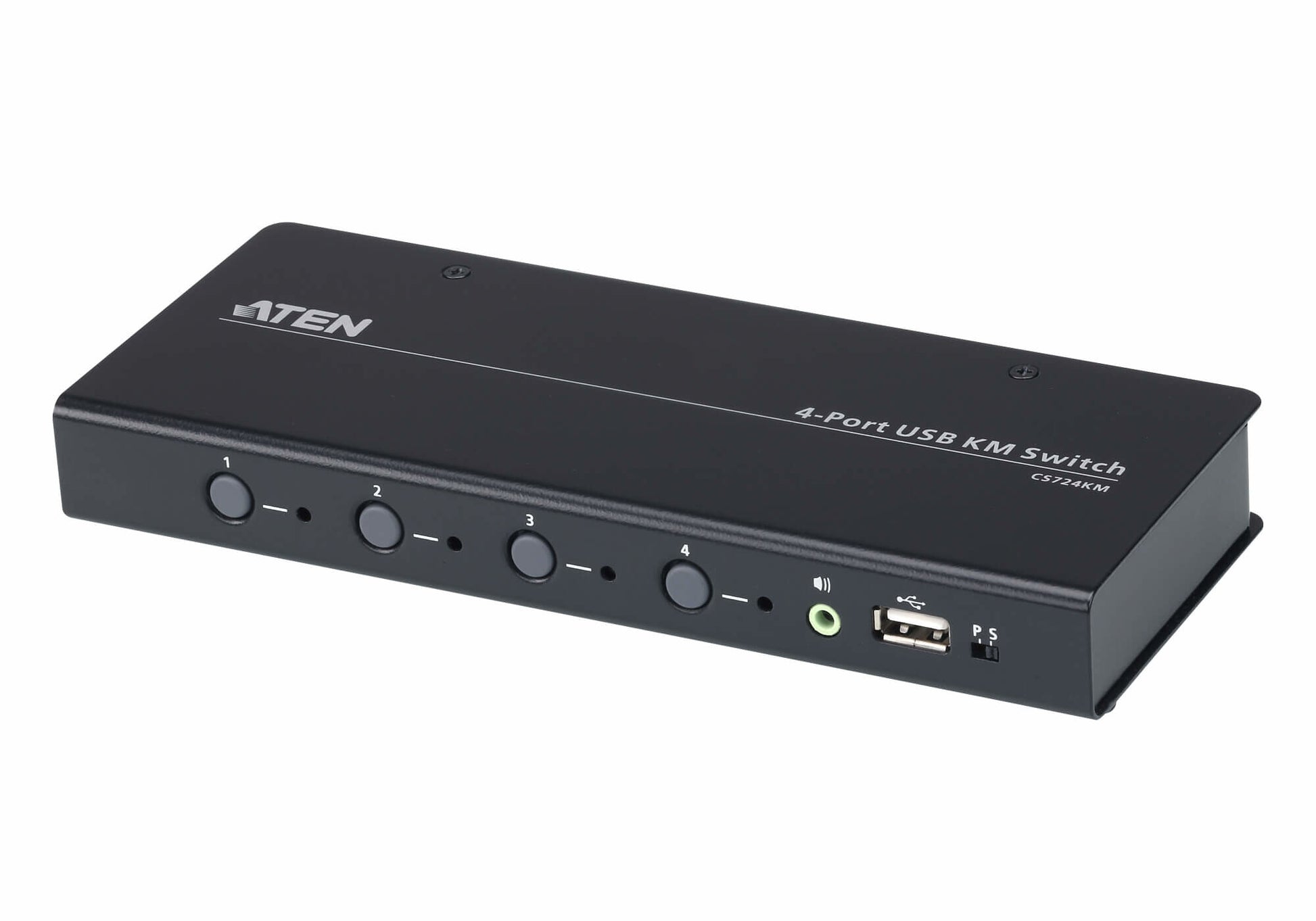

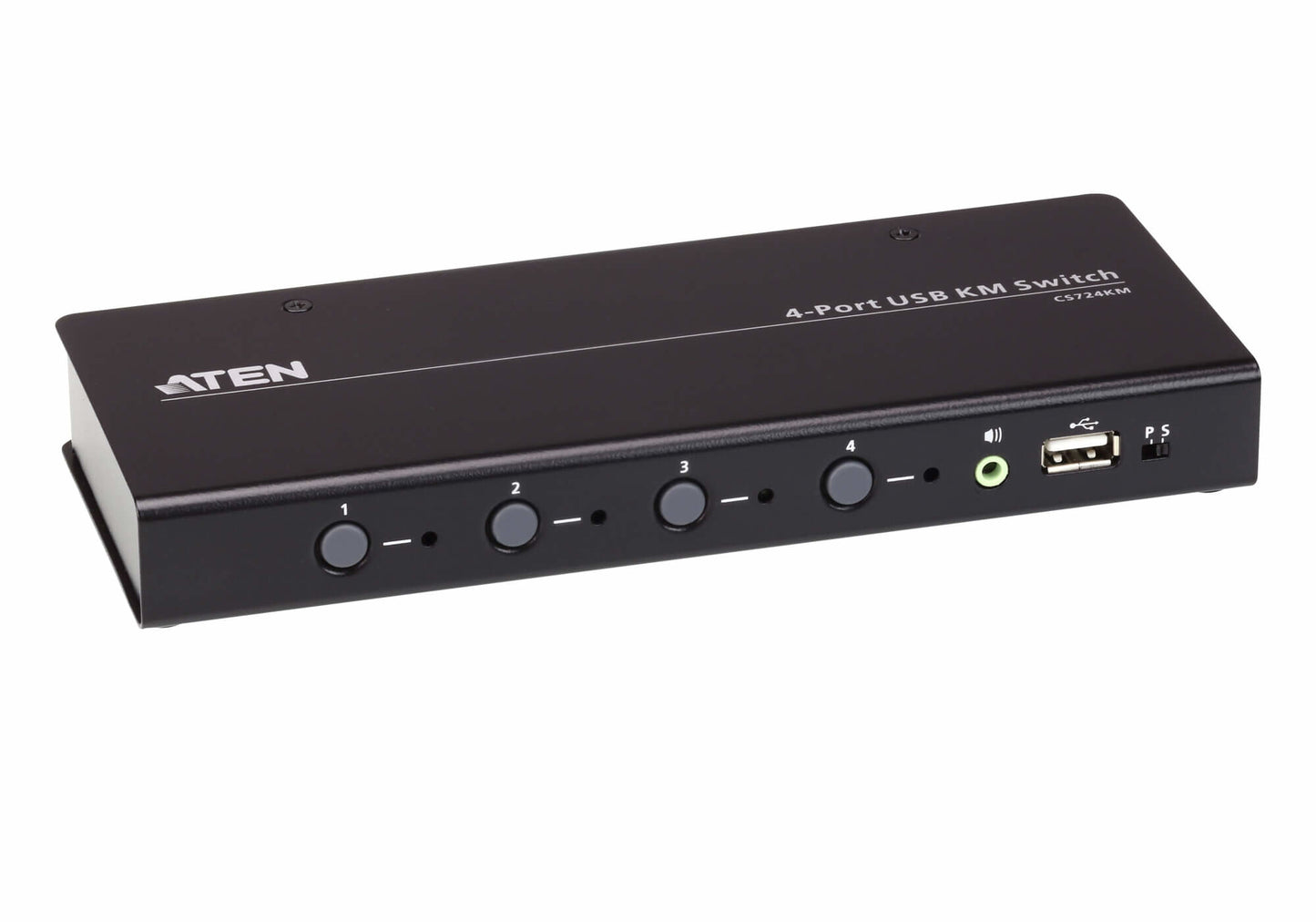

ATEN 4-Port USB KM Switch

• Single USB keyboard and mouse control up to 4 computers
• Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
• Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next
• Boundless Switching Configuration Utility1 – an intuitive GUI tool that enables users to customize monitor layouts
• Boundless Switching Focus 2 – a window frame to indicate which computer that it currently has the focus
• Extended Desktops Boundless Switching up to 16 monitors3

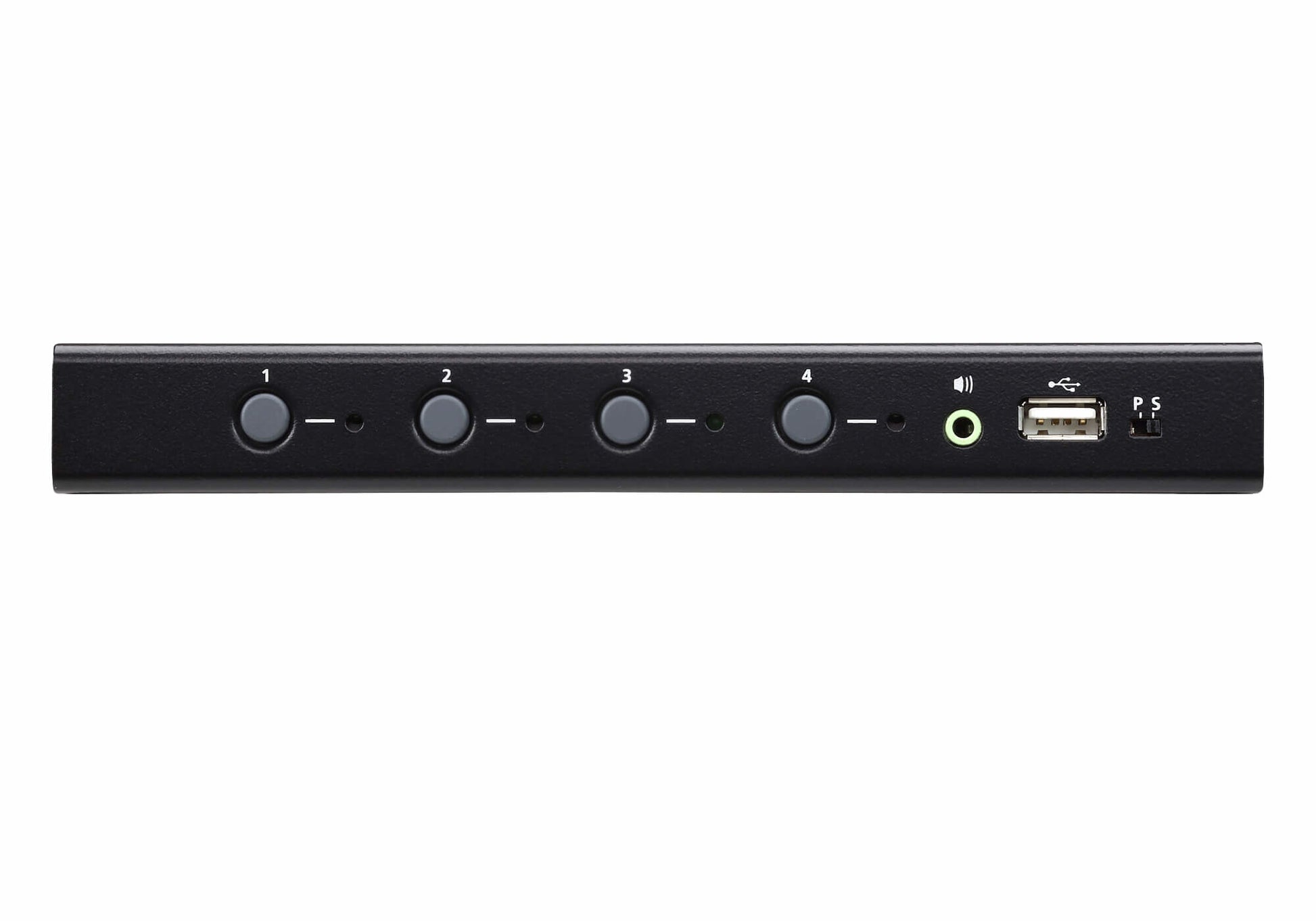

• Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel4, and RS-232 commands
• Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
• Supports RS-232 serial commands
• Supports Windows and Linux operating systems5
• No software required6
• Bus-powered – no external power adapter required7

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

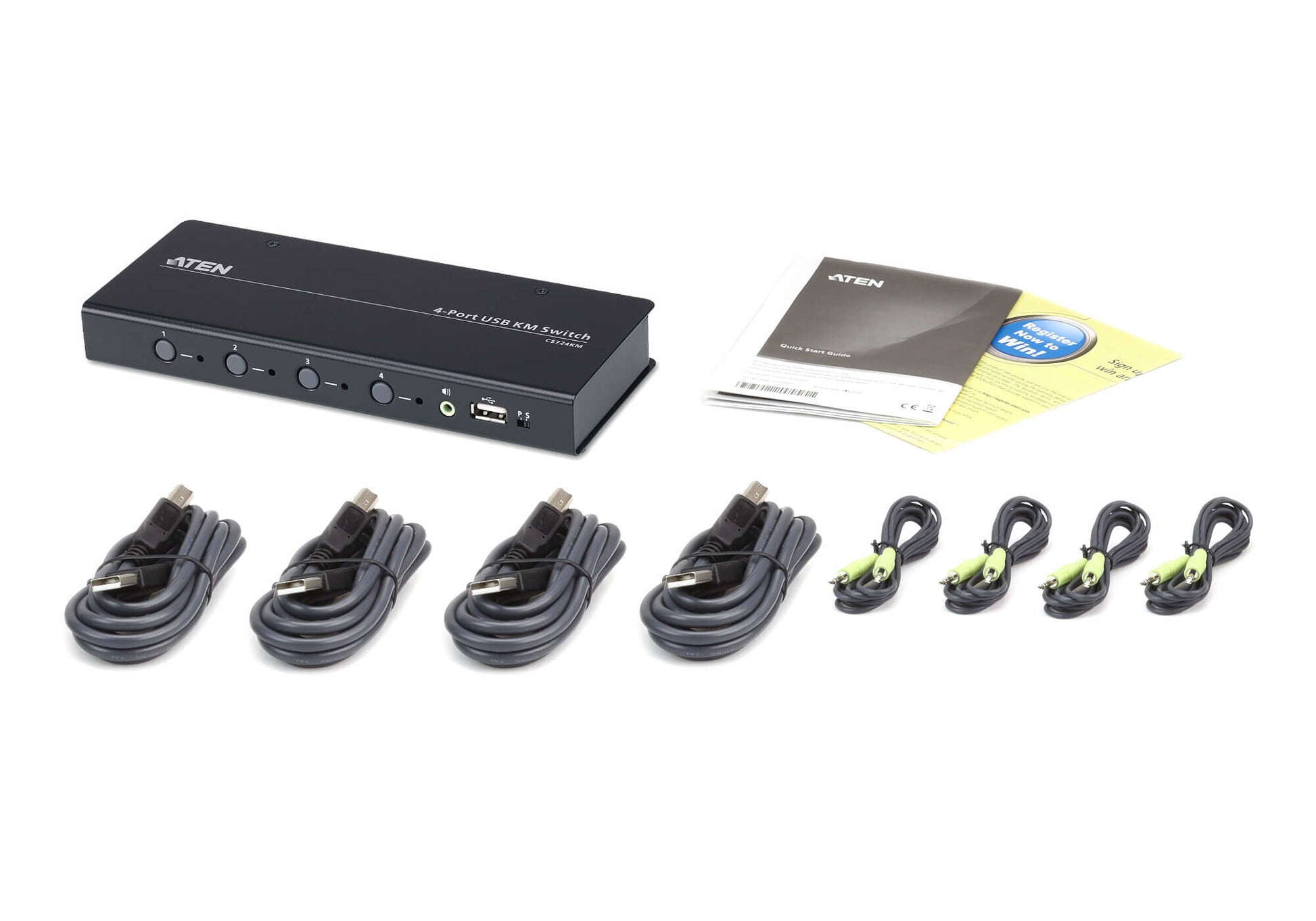

1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions
