TP-LINK
TP-Link MiniGBIC Module
TP-Link MiniGBIC Module
Regular price
£23.60 GBP
Regular price
Sale price
£23.60 GBP
Unit price
/
per
SKU:TL-SM311LM
Out of stock

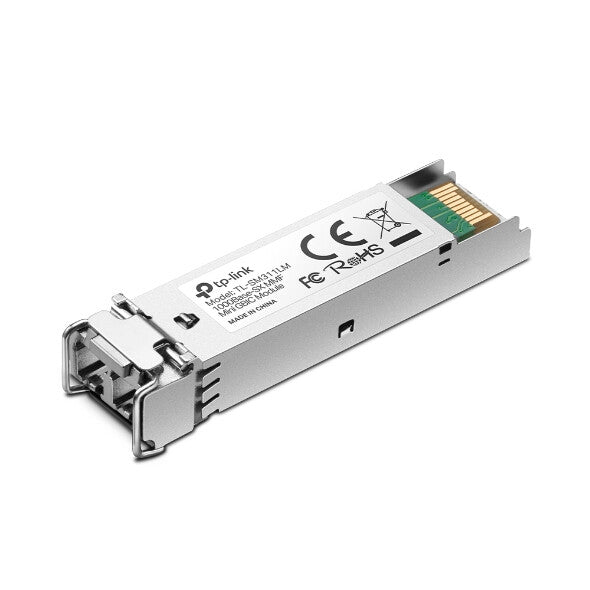

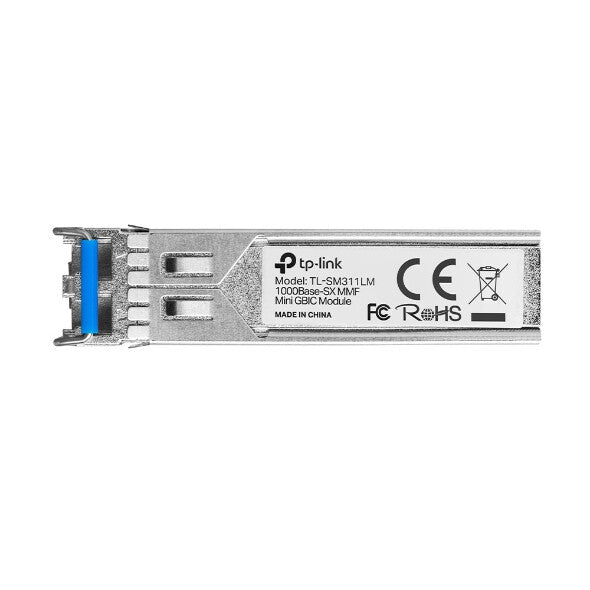

MiniGBIC, 850nm, Multi-mode Fiber, 1.25Gbps, LC/UPC
What This Product Does

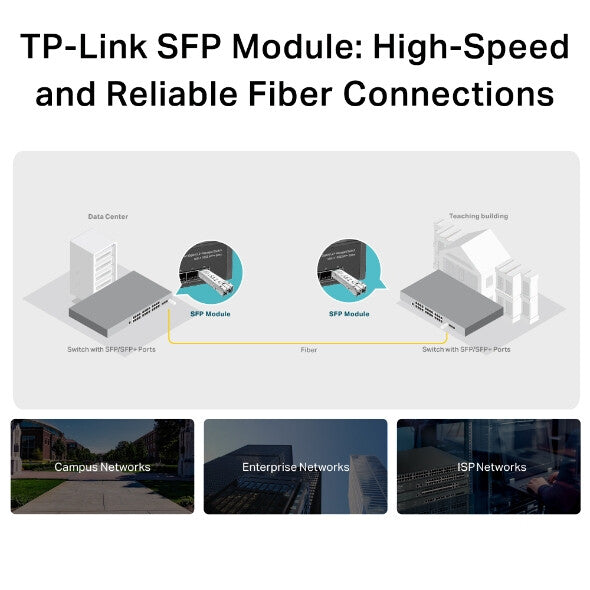

The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Performance | |
---|---|
Networking standards | IEEE 802.3z |
Wavelength | 850 nm |

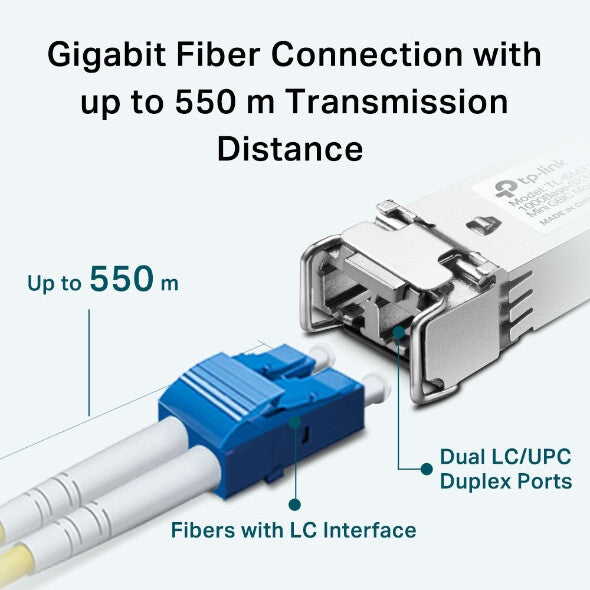

Maximum transfer distance | 550 m |
Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
Fiber optic connector | LC (UPC) |
Multi-mode fiber (MMF) supported | Yes |
Single-mode fiber (SMF) supported | No |

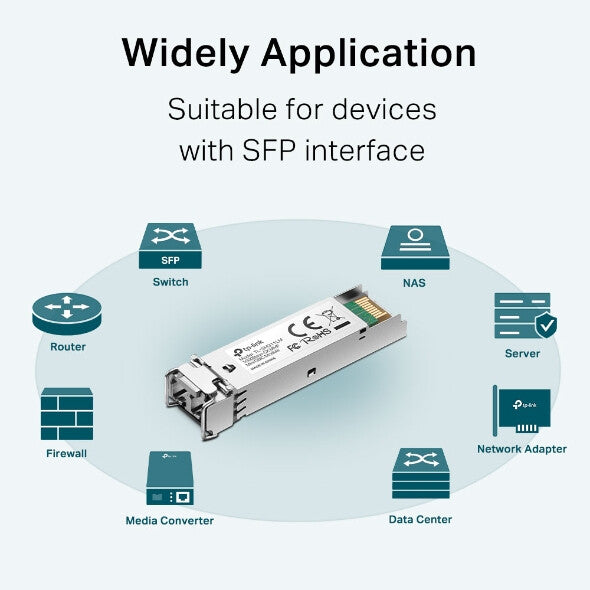

Interface type | mini-GBIC/SFP |
Maximum data transfer rate | 1250 Mbit/s |
SFP transceiver type | Fiber optic |
Features | |
---|---|
Certification | FCC, CE |
Product colour | Metallic |
Power | |
---|---|
Input voltage | 3.3 V |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 90% |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 80 °C |

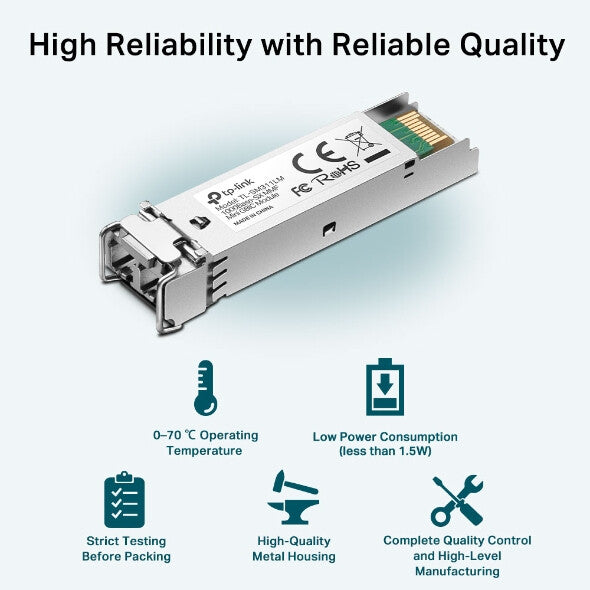

Operating temperature (T-T) | 0 - 70 °C |
Maximum operating temperature | 70 °C |
Weight & dimensions | |
---|---|
Height | 12.9 mm |
Depth | 13.7 mm |
Width | 55.4 mm |
Packaging data | |
---|---|
Package weight | 110 g |
Package height | 38 mm |
Package depth | 207 mm |
Package width | 148 mm |
User guide | Yes |
Technical details | |
---|---|
Compliance certificates | RoHS |
Logistics data | |
---|---|
Harmonized System (HS) code | 85369010 |
Quantity per pack | 1 pc(s) |
