Kingston Technology

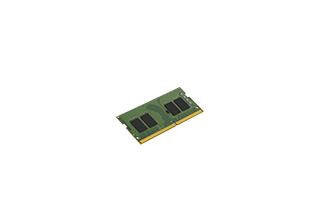

Kingston Technology KVR32S22S6/8 memory module 8 GB 1 x 8 GB DDR4 3200 MHz

Kingston Technology KVR32S22S6/8 memory module 8 GB 1 x 8 GB DDR4 3200 MHz

£20.60 GBP
£20.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

KVR32S22S6/8

76 in stock

  • Laptop 8 GB DDR4 3200 MHz
  • 260-pin SO-DIMM 1 x 8 GB
  • CAS latency: 22
  • 1.2 V
8 GB, 3200 MHz, DDR4, Non-ECC, CL22, SODIMM, 1Rx16

This document describes ValueRAM's KVR32S22S6/8 as a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers.

Features
JEDEC standard Yes
SPD profile Yes
Row active time 32 ns
Refresh row cycle time 350 ns
Row cycle time 45.75 ns
Memory voltage 1.2 V
CAS latency 22
ECC No
Memory form factor 260-pin SO-DIMM
Component for Laptop
Memory clock speed 3200 MHz
Internal memory type DDR4
Memory layout (modules x size) 1 x 8 GB
Internal memory 8 GB
Buffered memory type Unregistered (unbuffered)
Operational conditions
Storage temperature (T-T) -55 - 100 °C
Operating temperature (T-T) 0 - 85 °C
Sustainability
Sustainability certificates RoHS
Technical details
Compliance certificates RoHS
Weight & dimensions
Height 30 mm
Width 69.6 mm
Logistics data
Harmonized System (HS) code 84733020
